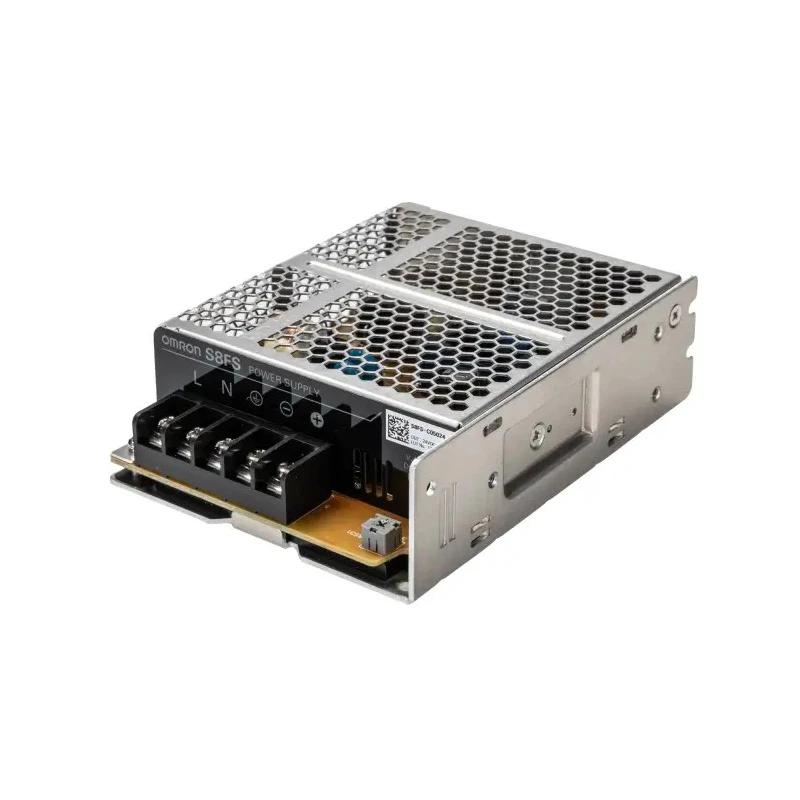

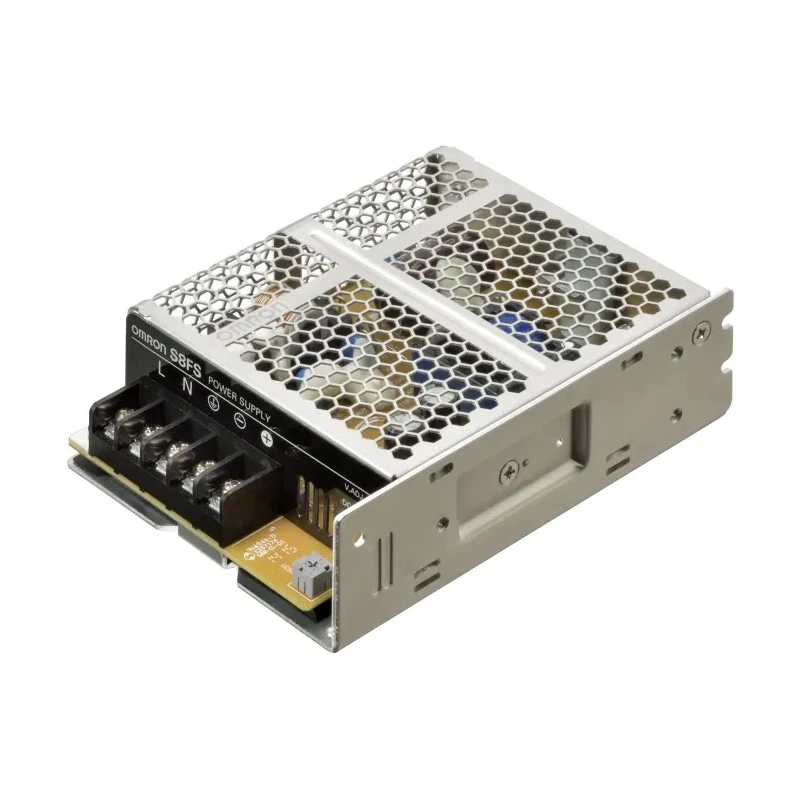

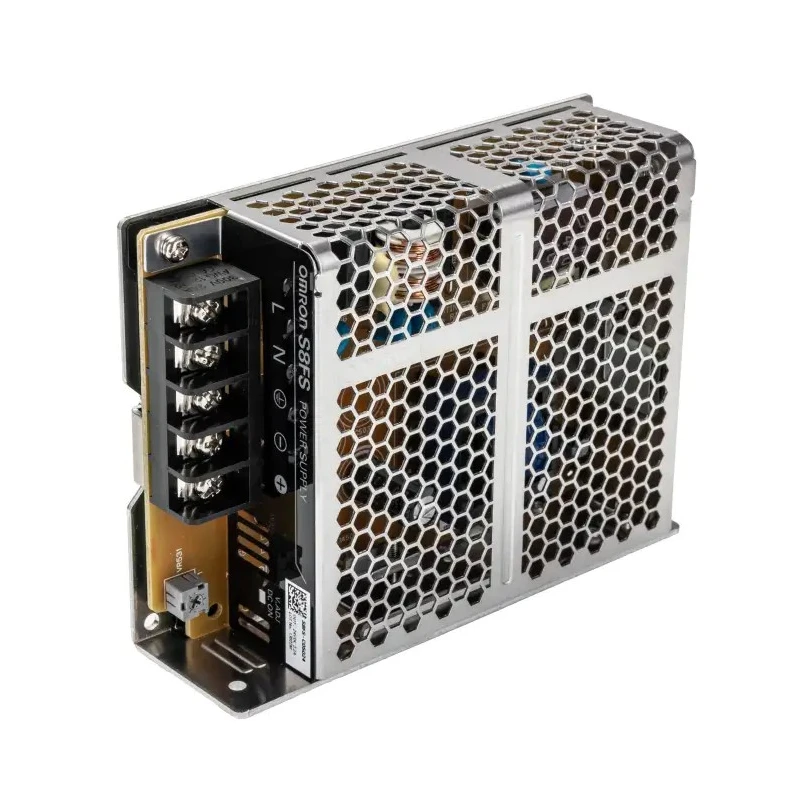

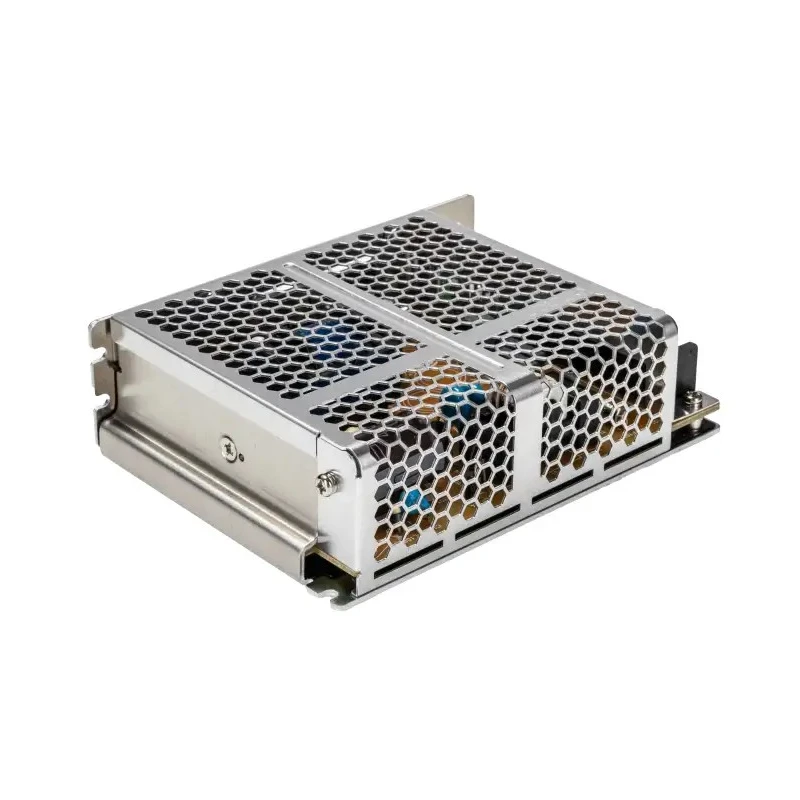

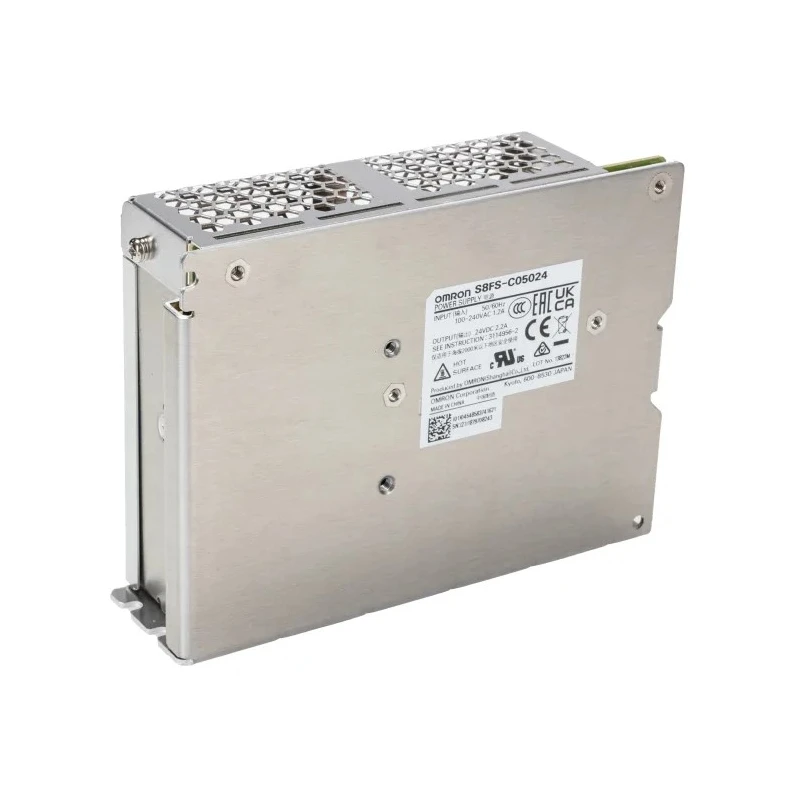

Omron S8FS-C Switched Mode DIN Rail Power Supply 264V AC/DC Input 24V DC, 2.2A Output, 350W
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Power | 350W |
| Efficiency | 86% |
| Height | 38mm |
| Model | S8FS-C |
| Depth | 129mm |
| Width | 97mm |
| Series | S8FS-C |
| Output Current | 2.2A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Accepts wide input voltage range from 85V AC to 264V AC and 120V DC to 370V DC.
- High efficiency rating of 86% minimizes energy consumption.
- Compact dimensions of 97mm width, 129mm depth, and 38mm height optimize panel space usage.
- Operates reliably over temperature range from -20°C to 60°C for varied environments.
- Low ripple and noise enhance stable operation of sensitive electronics.
- Meets international standards including EN 60950-1, UL 60950-1, cURus, and CCC certifications.
- Designed for powering control systems, telecommunications, and automation equipment.
Product Description
Omron S8FS-C05024 is a high-performance switched mode DIN rail power supply designed for demanding industrial and electronic applications. It accepts a wide AC/DC input voltage range from 85 to 264V AC and 120 to 370V DC, converting it efficiently to a stable 24V DC output at 2.2A current and 350W power. This versatility makes it ideal for use in automation, electrical panels, telecommunications, and control systems.
The power supply features compact dimensions of 97mm width, 129mm depth, and 38mm height, allowing for space-saving installation on DIN rails. It operates reliably within a temperature range of -20°C to +60°C, suitable for various industrial environments. The unit’s efficiency rating of 86% helps reduce energy consumption, while low ripple and noise levels of 100mV peak-to-peak ensure stable and noise-free operation for sensitive devices.
Certified to multiple international standards such as EN 60950-1, UL 60950-1, cURus, CSA C22.2, and CCC, the S8FS-C05024 power supply ensures compliance and safety. It is an excellent choice for powering sensors, actuators, control systems, and low voltage equipment in automation and manufacturing setups.
Wide AC/DC input voltage range of 85-264V AC and 120-370V DC ensures flexible operation. Stable 24V DC output at 2.2A current, delivering 350W power. Compact form factor fits standard DIN rail mounts efficiently. Operating temperature from -20°C to 60°C for harsh environments.
High efficiency of 86% reduces heat and power loss. Low ripple and noise enhance electronic device stability. International approvals guarantee safety and reliability.
This Omron DIN rail power supply is suited for industrial automation, manufacturing controls, telecommunications equipment, and electrical panels requiring dependable low-voltage DC power. For advanced, efficient, and robust power supply solutions, explore the Omron range and related products on EnvMart.
Explore more products in our DIN Rail Power Supplies category.
