Vishay Infrared, Visible Light Phototransistor Through Hole 3-Pin TO-18 Package BPW76A

Free Delivery in India | Lowest Global Shipping Charges

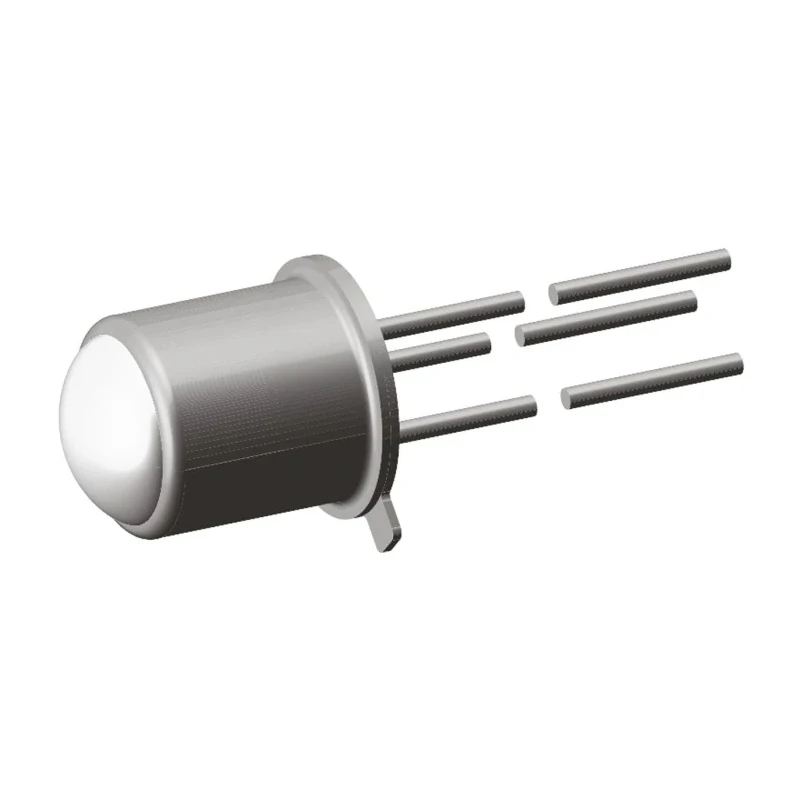

Vishay Infrared, Visible Light Phototransistor Through Hole 3-Pin TO-18 Package BPW76A

Name: Vishay Infrared, Visible Light Phototransistor Through Hole 3-Pin TO-18 Package BPW76A
Brand: Vishay
SKU: 376266
Price: 4.11 USD
Availability: InStock



Category Phototransistor Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Diameter	4.7mm
Brand	Vishay
Operating Temperature	-40 to +125 °C
Height	5.2mm
Length	13.2mm
Model	BPW76A
Packaging	Bulk
Width	5.2mm
Mount Type	Through Hole
Series	BPW76A
Maximum Operating Temperature	125°C
Package Type	TO-18
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS Compliant
Number of Pins	3
Typical Rise Time	6μs
Typical Fall Time	5μs
Peak Wavelength	850nm
Spectrums Detected	Infrared, Visible Light
Angle of Half Sensitivity	±40 °
Collector Current	50mA
Maximum Light Current	800μA
Maximum Dark Current	100nA
Collector Emitter Voltage	70V

Key Features

High photo and radiant sensitivity suitable for infrared detection.
Typical rise time of 6 microseconds with a fall time of 5 microseconds.
Collector emitter voltage rating up to 70V and collector current of 50mA.
Operating temperature range from -40°C to +125°C for harsh environments.
Hermetically sealed TO-18 package with 4.7mm diameter glass window.
Through-hole mounting with 3-pin configuration for easy PCB integration.
RoHS compliant ensuring environmental and safety standards.
Ideal for electronic control and drive circuit detection applications.

Product Description

Vishay BPW76A phototransistor is a silicon NPN device designed for detecting both infrared and visible light spectrums with a ±40° half angle of sensitivity. Packaged in a robust hermetically sealed TO-18 metal case with a glass window, it offers reliable through-hole mounting using its 3-pin configuration. The device has a peak wavelength sensitivity at 850nm, ideal for near-infrared applications.

Featuring a typical rise time of 6 microseconds and fall time of 5 microseconds, the BPW76A allows for fast response in electronic control and driver circuits. The maximum collector emitter voltage rating is 70 volts, and it supports a maximum collector current of 50mA, making it suitable for various signal switching needs.

The operating ambient temperature range of -40°C to +125°C ensures durability and stable performance even in demanding industrial environments. Its small size with dimensions of approximately 13.2mm in length, 5.2mm in height and width, and a 4.7mm diameter window, accommodates compact PCB layouts.

Being RoHS compliant, this phototransistor meets environmental safety regulations and supports green manufacturing standards. Sold in bulk packaging, it is ideal for manufacturers requiring consistent quality photodetectors for sensor applications in electronics, industrial automation, and telecommunications.

High sensitivity to both visible and infrared light. Fast switching speed with 6μs rise and 5μs fall times. Through-hole TO-18 package with hermetic sealing and glass window. Wide temperature operation range for industrial use.

Electrical ratings of 50mA collector current and 70V collector emitter voltage. Compatible with standard PCB through-hole mounting. Bulk packaged for cost-effective production use. Applications include optical sensors, signal switching, and electronic control circuits.
