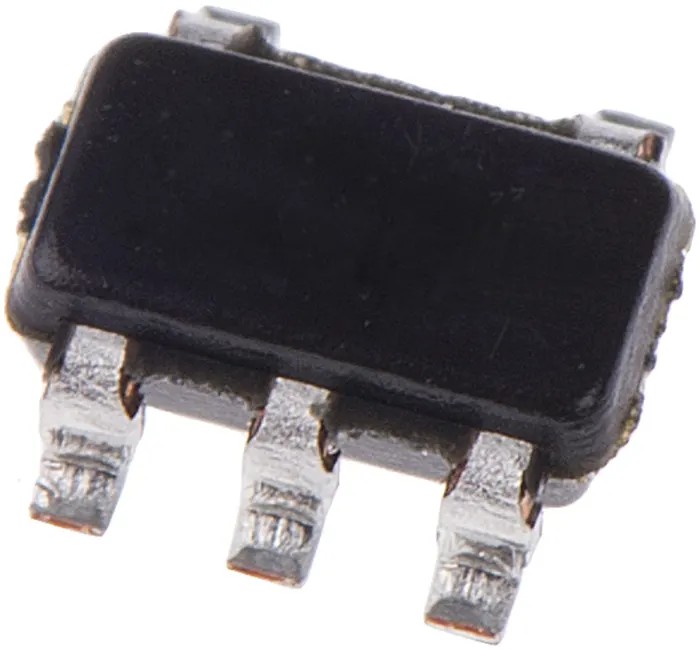

STMicroelectronics Operational Amplifier, Single Channel, 900 kHz Gain Bandwidth, 5.5V Max Supply, 5-Pin SOT-23 TSX561AIYLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSX561AIYLT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSX561A |
| Output Current | 2.5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 900kHz |
| Input Bias Current | 200 pA |
| Slew Rate | 1.1V/μs |
| ESD high tolerance | 4 kV |
| Gain bandwidth product | 900 kHz typical |
| Wide temperature range | -40°C to +125°C |
| Low input bias current | 1 pA typical |
Key Features
- Single channel operational amplifier with low power consumption.
- Operates over a supply voltage range from 3 V to 5.5 V.
- Gain bandwidth product of 900 kHz for high-frequency applications.
- Low input offset voltage of 1800 µV and low input bias current of 200 pA.
- Compact SOT-23 package size with dimensions 3 mm x 1.75 mm x 1.3 mm.
- Wide operating temperature range from -40°C to 125°C suitable for automotive use.
- Meets RoHS standards and automotive AEC-Q100 qualification for reliability.
- ESD tolerance up to 4 kV ensuring robustness in industrial environments.
Product Description
STMicroelectronics TSX561AIYLT is a precision single-channel CMOS operational amplifier designed for efficient, low-power signal processing in demanding environments.
This device features a gain bandwidth product of 900 kHz and operates from a wide supply voltage range of 3 V to 5.5 V. Packaged in a compact 5-pin SOT-23 surface mount format with dimensions of 3 mm length, 1.75 mm width, and 1.3 mm height, it is ideal for space-constrained applications.
The amplifier offers a low input offset voltage of 1800 µV and input bias current of 200 pA, making it suitable for precision analog circuits. It is designed to withstand wide temperature variations from -40°C to 125°C, meeting automotive AEC-Q100 standards, which ensures stable operation in automotive and industrial environments.
Additional robustness is provided by ESD protection up to 4 kV. The device supports an output current of 2.5 mA and a slew rate of 1.1 V/µs, suitable for fast signal transitions. This operational amplifier complies with RoHS requirements, emphasizing environmental safety.
Single channel low-power operational amplifier. Wide supply voltage range from 3 V to 5.5 V. High gain bandwidth product of 900 kHz for high-frequency signal amplification. Operating temperature range from -40°C to 125°C for reliable performance.
Compact SOT-23 package for efficient PCB layout. Automotive grade AEC-Q100 qualification. Low input offset voltage and bias current for precision applications. 4 kV ESD tolerance for enhanced durability. 2.5 mA output current capability.
Low power consumption supporting energy-efficient designs.
Ideal for industrial, automotive, and commercial electronic circuit designs requiring compact, reliable Operational Amplifiers. Explore more high-quality amplifiers and semiconductor products at EnvMart for your professional electronics projects.
