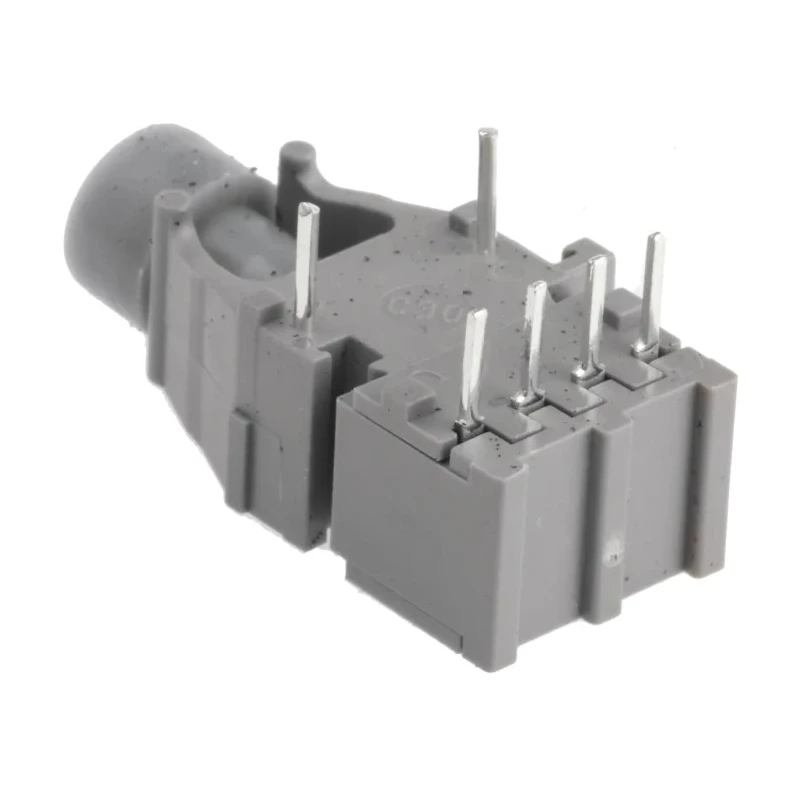

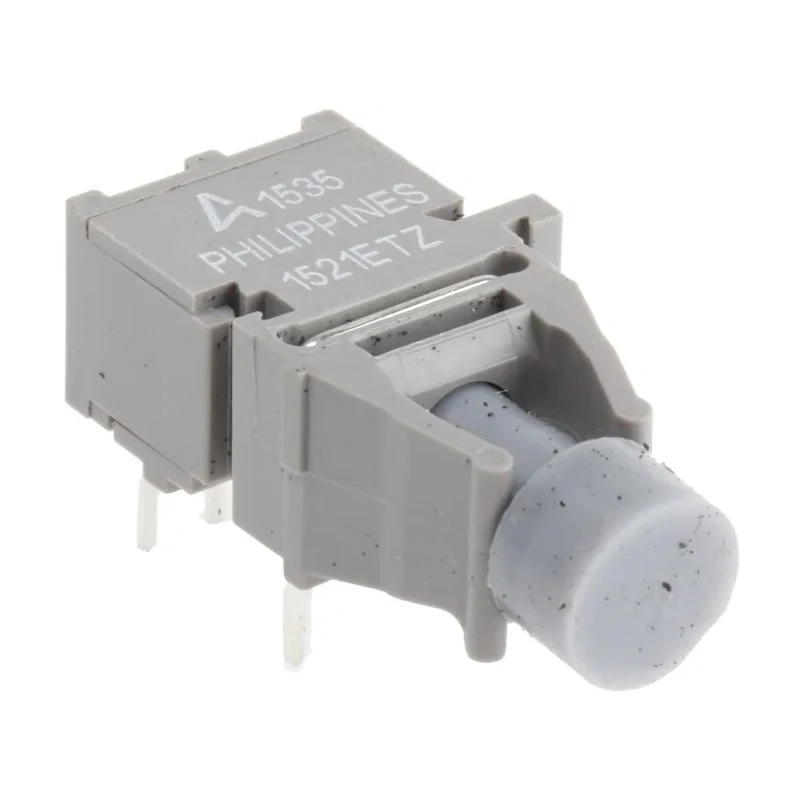

Broadcom Fibre Optic Transmitter 5 MBd Data Rate Round Versatile Link Connector 7.6 mm x 12.19 mm x 18.8 mm HFBR-1521ETZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.6mm |
| Length | 18.8mm |
| Model | HFBR-1521ETZ |
| Connector Type | Versatile Link |
| Width | 12.19mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Forward Voltage | 2.05V |
| Number of Pins | 6 |
| Typical Rise Time | 20ns |
| Maximum Data Rate | 5MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 660nm |
| Maximum Data Transmission Distance | 67m |
Key Features
- Designed for through-hole mounting on printed circuit boards.
- Peak wavelength sensitivity of 660 nm suitable for visible red light transmission.
- Maximum data transmission distance is 67 meters for short-range optical links.
- Features a compact round connector with dimensions 7.6 mm height, 12.19 mm width, and 18.8 mm length.
- Operates with a forward voltage of 2.05 V ensuring reliable drive characteristics.
- Includes a six-pin package compatible with standard PCB holes for sensor and control interfacing.
- Typical rise and fall times of 20 ns enable precise signal timing transitions.
- Complies with RoHS standards for environmental safety.
Product Description
Broadcom HFBR-1521ETZ is a fibre optic transmitter module designed for industrial and electronic applications requiring compact and reliable short-range optical data communication.
This transmitter converts electrical signals into optical output at a peak wavelength of 660 nm, suitable for visible red light signalling. It supports data rates up to 5 MBd, making it suitable for moderate-speed communications.
The unit features a round Versatile Link connector measuring 7.6 mm in height, 12.19 mm in width, and 18.8 mm in length, providing a compact optical interface that can be securely mounted through-hole on PCBs using its six-pin footprint.
With a maximum data transmission distance of 67 meters, it is ideal for short-range industrial sensors, machine vision trigger signals, and optical isolation in harsh environments such as control cabinets.
Forward voltage of 2.05 V and typical rise/fall times of 20 ns ensure predictable drive requirements and symmetrical timing responses for signal integrity. The transmitter complies with RoHS standards, contributing to environmentally friendly electronic system design.
Applications of the HFBR-1521ETZ include integration in custom PCB designs requiring compact optical ports, harsh-environment signalling scenarios, and industrial sensor networks needing reliable optical data links.
Designed for through-hole mounting to PCBs for secure installation. Six-pin package enables simple integration with sensor and control systems. Round Versatile Link connector for fibre coupling compatibility. Peak sensitivity wavelength of 660 nm supports visible red optical signaling.
Supports maximum data rate of 5 MBd for moderate-speed data links. Maximum transmission distance of up to 67 meters. Complies with RoHS environmental standards. Suitable for machine vision, industrial, and harsh environment applications.
Explore our comprehensive range of Fibre Optic Transmitters and related components at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 5 MBd, suitable for moderate-speed data communications.
The peak wavelength sensitivity is 660 nm, which is suitable for visible red light transmission.
It has a maximum data transmission distance of 67 meters, making it ideal for short-range optical links.
This unit has dimensions of 7.6 mm in height, 12.19 mm in width, and 18.8 mm in length.
It is designed for through-hole mounting on printed circuit boards (PCBs).
This model features a six-pin package, compatible with standard PCB holes.
The HFBR-1521ETZ operates with a forward voltage of 2.05 V.
It has typical rise and fall times of 20 ns, ensuring precise signal timing transitions.
Yes, it complies with RoHS standards for environmental safety.
This transmitter is suitable for applications such as industrial sensors, machine vision trigger signals, and optical isolation in harsh environments.
It features a round Versatile Link connector for fibre coupling compatibility.
The country of origin for this model is India.
