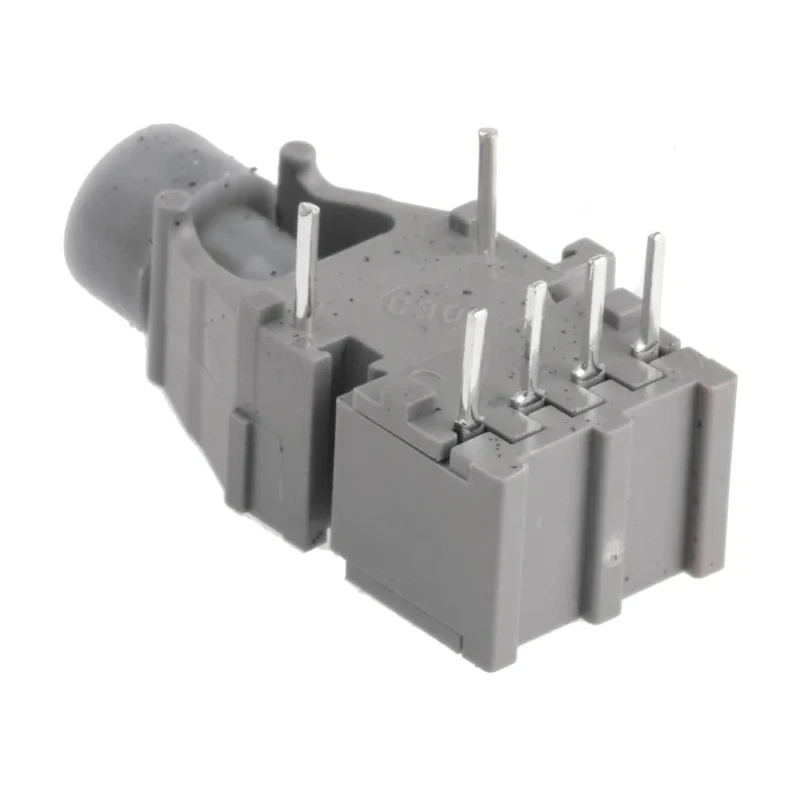

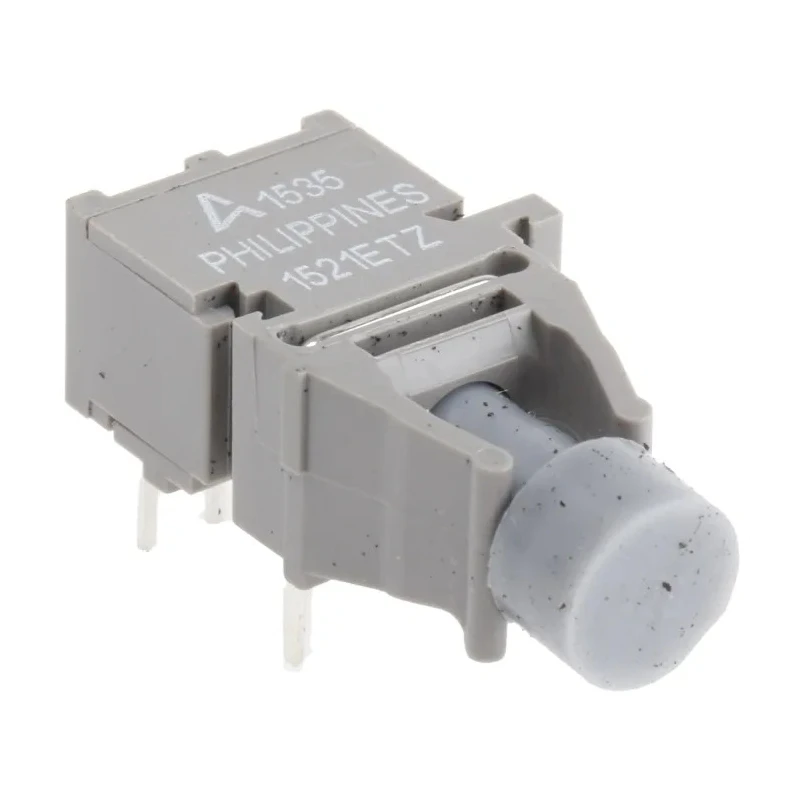

Broadcom Fibre Optic Transmitter Versatile Link 5 MBd 660 nm Round Connector Through Hole Mount HFBR-1521ETZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.6mm |
| Length | 18.8mm |
| Model | HFBR-1521ETZ |
| Connector Type | Versatile Link |
| Width | 12.19mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Forward Voltage | 2.05V |
| Number of Pins | 6 |
| Typical Rise Time | 20ns |
| Maximum Data Rate | 5MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 660nm |
| Maximum Data Transmission Distance | 67m |
Key Features
- Supports maximum data transmission distance of 67 meters for reliable short-range communication.
- 6-pin package enables simple sensor and control interfacing on PCBs.
- Typical rise and fall times of 20 ns ensure symmetrical and timely signal transitions.
- Forward voltage of 2.05 V offers predictable drive requirements in system design.
- Designed for harsh environment signalling and compact board attachment in industrial use cases.
- RoHS compliant ensuring environmental standards are met.
- Ideal for machine vision trigger signal distribution and industrial sensor networks.
Product Description
Broadcom HFBR-1521ETZ Fibre Optic Transmitter from the Versatile Link series delivers a maximum data rate of 5 MBd with peak optical sensitivity at 660 nm, suitable for visible red transmission. It incorporates a round Versatile Link connector with dimensions 7.6 mm height, 12.19 mm width, and 18.8 mm length, and is designed for through-hole PCB mounting using a 6-pin footprint for straightforward electrical interfacing.
This transmitter converts electrical signals into optical outputs to enable short-range data links within industrial systems, achieving a maximum transmission distance of up to 67 meters. The device features typical rise and fall times of 20 nanoseconds, supporting balanced timing for efficient communication. Operating with a forward voltage of 2.05 V, it facilitates predictable drive requirements for system designers.
The compact and robust design is suitable for harsh-environment signalling applications where space is limited. It is optimal for integration in machine vision trigger signal distribution, industrial sensor networks, control cabinet optical isolation, and custom PCB solutions that require through-hole optical port connectivity.
Fully compliant with RoHS environmental standards, the Broadcom HFBR-1521ETZ amplifier aligns with industry regulations for safe and responsible usage. Supports data rates up to 5 MBd for moderate-speed communications. Maximum transmission distance of 67 meters supports short-range industrial links.
Six-pin package suitable for easy through-hole mounting. Forward voltage rating of 2.05 V allows stable system performance. Peak sensitivity wavelength at 660 nm suitable for visible red light signalling. Designed for machine vision and industrial sensor networks applications.
RoHS compliant for environmental safety and standards adherence.
This Fibre Optic Transmitter is a reliable component choice for industrial, manufacturing, and automation environments requiring optical signal conversion over short distances with compact form factor and straightforward PCB attachment.
Explore the Electronics & Electricals category for more advanced fibre optic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 5 MBd, suitable for moderate-speed communications in industrial applications.
The peak sensitivity wavelength is 660 nm, which is suitable for visible red light transmission.
It supports a maximum data transmission distance of 67 meters, enabling reliable short-range communication.
The typical rise and fall times are 20 nanoseconds, ensuring symmetrical and timely signal transitions.
This unit is designed for through-hole mounting, making it easy to integrate into PCBs.
The forward voltage rating is 2.05 V, which allows for predictable drive requirements in system design.
The dimensions are 7.6 mm in height, 12.19 mm in width, and 18.8 mm in length.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
It is optimal for machine vision trigger signal distribution, industrial sensor networks, and control cabinet optical isolation.
This model features a 6-pin package for straightforward electrical interfacing.
It uses a round Versatile Link connector, designed for easy attachment to PCBs.
This model belongs to the Versatile Link series, which is designed for various industrial applications.
