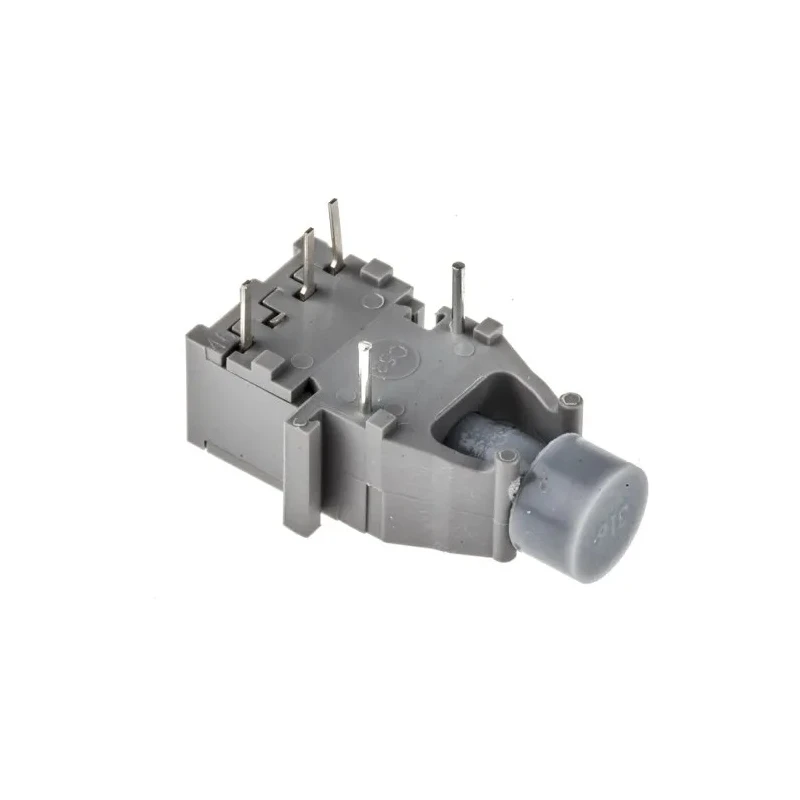

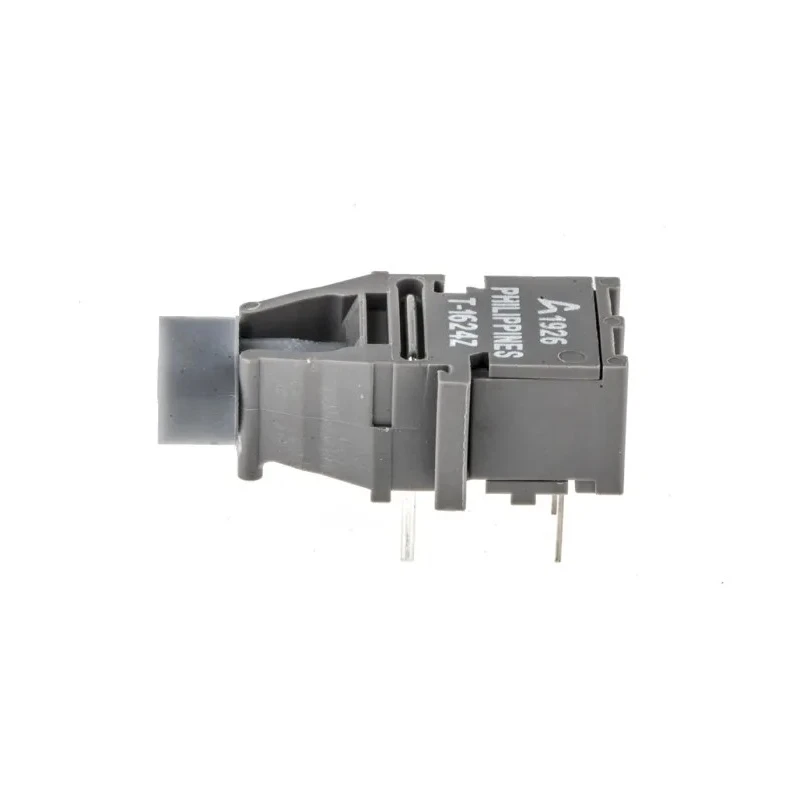

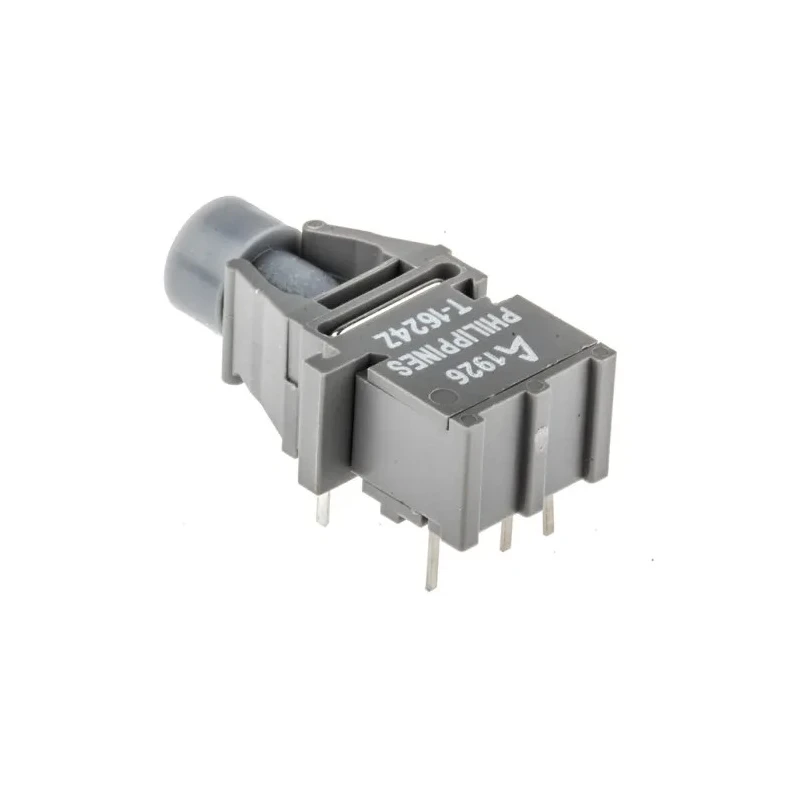

Broadcom 50 MBd Fibre Optic Transmitter Versatile Link Round Connector 6-Pin 685 nm 7.6 mm x 12.19 mm x 18.8 mm AFBR-1624Z

Broadcom AFBR-1624Z is a high-performance fibre optic transmitter designed for converting electrical signals into optical output for optical link applications requiring moderate-speed data transmission. Operating at a maximum data rate of 50 MBd, this transmitter employs a round Versatile Link connector that ensures secure optical mating and is suitable for integration in compact through-hole PCB modules.

The transmitter exhibits peak sensitivity at a wavelength of 685 nm, making it compatible with a variety of complementary fibre optic components. Its 6-pin through-hole layout facilitates reliable soldering and mechanical stability on printed circuit boards. The device's physical dimensions include a height of 7.6 mm, width of 12.19 mm, and length of 18.8 mm, allowing engineers to plan PCB footprints effectively.

With typical rise and fall times of 5 ns, the AFBR-1624Z reduces signal transition delays and output pulse distortion, enhancing communication reliability. The 6 V forward voltage allows for predictable driving conditions, easing integration into control and sensor systems. Compliance with RoHS standards reflects its environmentally friendly design.

This transmitter is highly suitable for short-reach optical data transmission setups, sensor interface modules, control systems requiring optical isolation, and prototyping of transceiver boards for printed circuit boards. Its versatile configuration supports rapid development and deployment in various industrial, laboratory, and manufacturing environments where optical communication is essential.

Operates with a round Versatile Link connector designed for optical mating. Peak optical sensitivity wavelength at 685 nm ensures compatibility with optical components. Compact through-hole 6-pin mounting with 7.6 mm height, 12.19 mm width, and 18.8 mm length dimensions.

Typical rise and fall times of 5 ns minimize signal transition delays and pulse distortion. Forward voltage requirement of 6 V supports predictable device drive. RoHS compliant for environmental safety and modern standards.

Ideal for short-reach optical data transmission and sensor interface modules. Suitable for control systems needing optical isolation and prototyping PCB transceiver boards.

For reliable and efficient optical communication components, explore the Broadcom AFBR-1624Z and other Fibre Optic Transmitters in the EnvMart catalogue specialized for electronics components.
