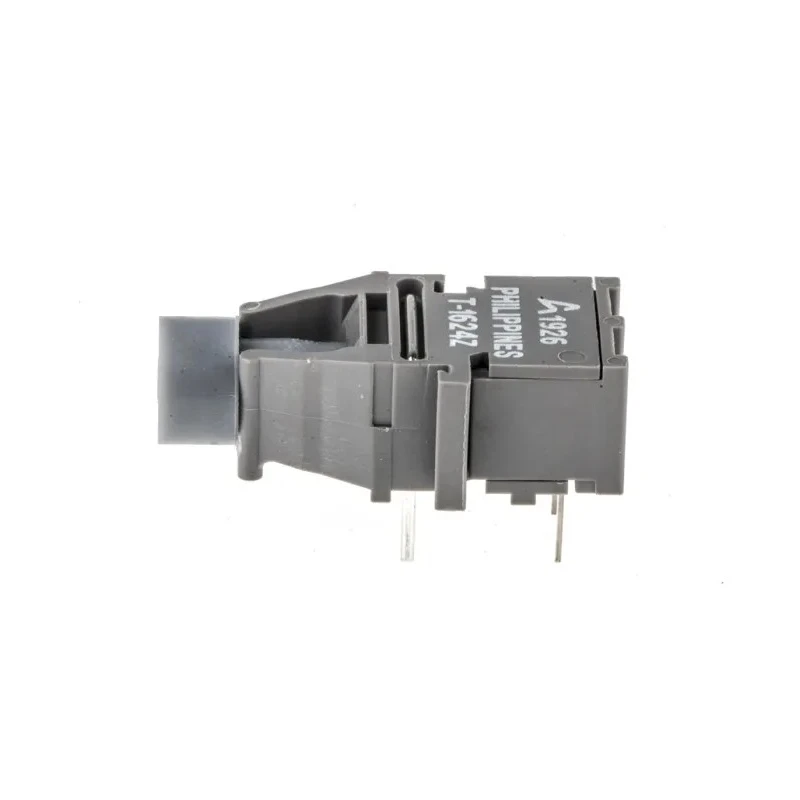

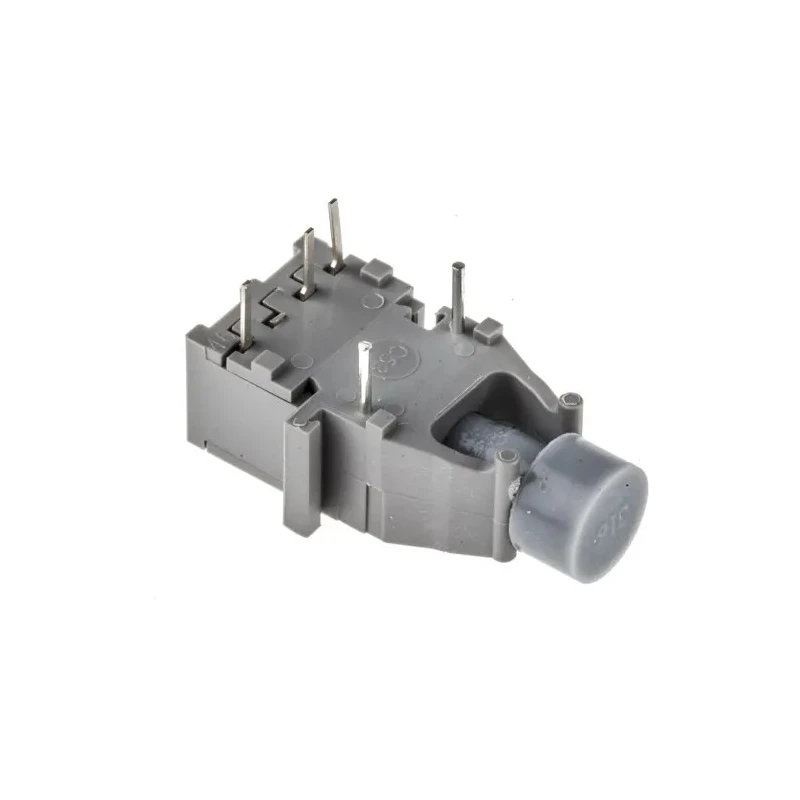

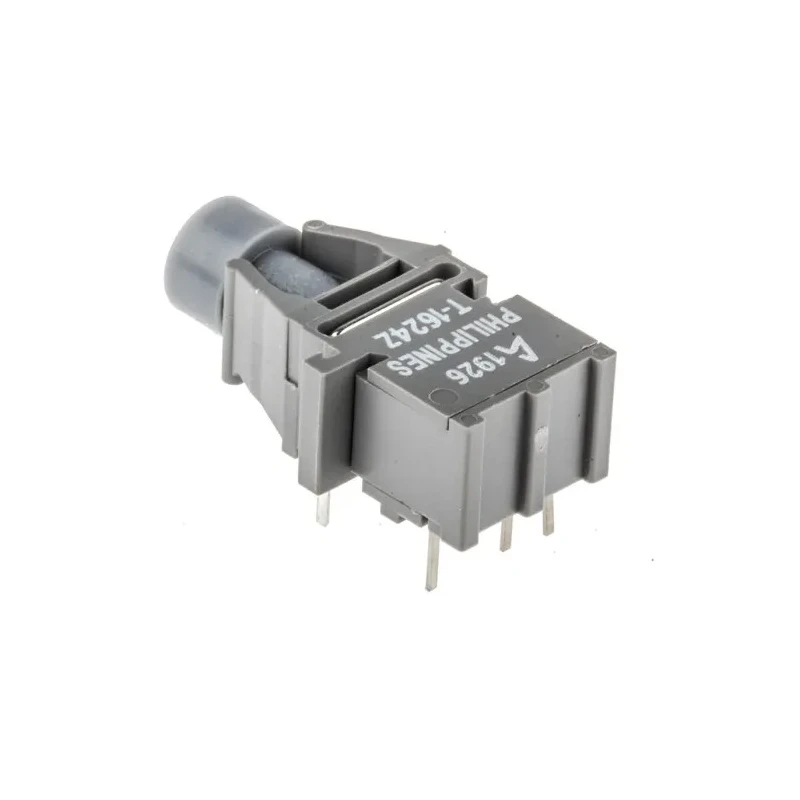

Broadcom 50 MBd Fibre Optic Transmitter, Round Versatile Link Connector, 685 nm Peak Sensitivity, 7.6 mm x 12.19 AFBR-1624Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.6mm |
| Length | 18.8mm |
| Model | AFBR-1624Z |
| Connector Type | Versatile Link |
| Width | 12.19mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Forward Voltage | 6V |
| Number of Pins | 6 |
| Typical Rise Time | 5ns |
| Maximum Data Rate | 50MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 685nm |
Key Features
- The transmitter operates with a peak sensitivity wavelength of 685 nm for optimal optical performance.
- It features a compact through-hole mount with six pins for reliable PCB integration.
- Typical rise and fall times are 5 ns each, enabling reduced signal latency and pulse distortion.
- The forward voltage is 6 V, facilitating predictable drive characteristics.
- Connector dimensions of 7.6 mm height, 12.19 mm width, and 18.8 mm length aid precise placement.
- RoHS compliant, ensuring environmental safety and regulatory adherence.
- Suitable for short-reach optical communication and sensor interface modules.
- Ideal for control systems requiring optical isolation and prototype transceiver PCB boards.
Product Description
Broadcom AFBR-1624Z is a high-performance fibre optic transmitter designed for moderate-speed data transmission with a maximum rate of 50 MBd. Its round Versatile Link connector allows for efficient optical mating and system integration.
This through-hole mounted device features six pins and a compact form factor measuring 7.6 mm in height, 12.19 mm in width, and 18.8 mm in length, optimizing PCB design and mechanical stability.
Operating at a peak sensitivity wavelength of 685 nm, the transmitter delivers reliable signal conversion with typical rise and fall times of 5 nanoseconds each, minimizing transition delays and pulse distortion for clear optical signals.
With a forward voltage of 6 V, it guarantees stable and predictable drive performance suitable for a variety of applications. It is compliant with RoHS standards, reflecting environmental responsibility in manufacturing and deployment.
Applications include short-reach optical data transmission setups, sensor interface modules, control systems requiring optical isolation, and prototyping of transceiver boards on printed circuit boards.
The transmitter supports a maximum data rate of 50 MBd for efficient communication. Six-pin through-hole mounting provides ease of soldering and robust mechanical connection. Compact dimensions enable space-efficient PCB layouts.
Round Versatile Link connector ensures compatibility with fiber optic assemblies. Typical rise and fall time of 5 ns enhances signal integrity. Forward voltage of 6 V for consistent operation. RoHS compliant to meet environmental standards.
Broadcom’s AFBR-1624Z is an essential component for industrial, manufacturing, telecommunications, and instrumentation applications requiring reliable optical transmission. Explore the complete range of Fibre Optic Transmitters and connectors on EnvMart for seamless integration and optimal system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the AFBR-1624Z transmitter is 50 MBd.
It operates with a peak sensitivity wavelength of 685 nm for optimal optical performance.
The dimensions of this model are 7.6 mm in height, 12.19 mm in width, and 18.8 mm in length.
The transmitter features a round Versatile Link connector for efficient optical mating and system integration.
This model is designed for through-hole mounting with six pins for reliable PCB integration.
The typical rise and fall times are both 5 nanoseconds, which helps minimize signal latency and pulse distortion.
The forward voltage of this transmitter is 6 V, ensuring predictable drive characteristics.
Yes, it is RoHS compliant, reflecting environmental responsibility in its manufacturing and deployment.
It is suitable for short-reach optical communication, sensor interface modules, and control systems requiring optical isolation.
This transmitter has six pins, facilitating easy soldering and robust mechanical connection.
The country of origin for this model is India.
This model belongs to the Versatile Link series of fibre optic transmitters.
