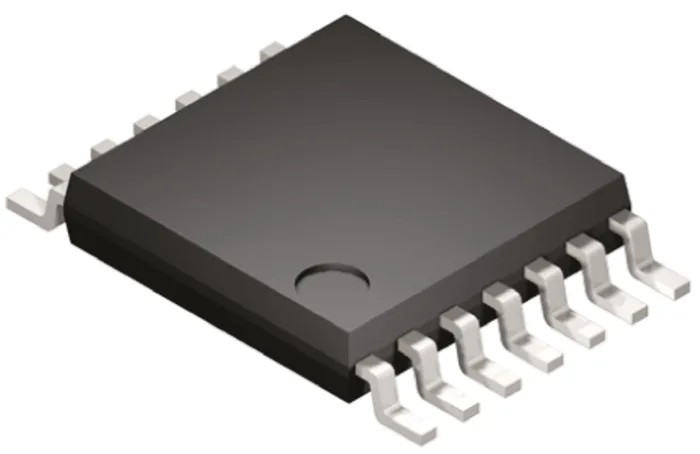

DiodesZetex Schmitt Trigger Input Inverter 6 Elements, 14-Pin TSSOP, 4.5V-5.5V Supply, 74HCT14T14-13

DiodesZetex 74HCT14T14-13 Schmitt Trigger Input Inverter is a high-speed CMOS logic IC designed for general purpose inverter applications. Featuring six inverter elements on a single 14-pin TSSOP surface-mount package, it provides efficient logic inversion with low power consumption.

The device operates within a supply voltage range of 4.5V to 5.5V and incorporates Schmitt trigger inputs, ensuring enhanced noise immunity and signal integrity in digital circuits. It supports push-pull output stages capable of sourcing and sinking 4mA at 4.5V supply, enabling consistent logic output drive.

With a maximum propagation delay of 51 nanoseconds, it is suitable for timing-critical industrial, electronic, and automation systems requiring reliable inverter logic functions. The device's operating temperature range from -40°C to 125°C makes it ideal for use in harsh environmental conditions found in industrial and manufacturing applications.

The compact TSSOP 14-pin package (5.1mm length x 4.5mm width x 1.05mm height) facilitates high-density printed circuit board assembly and surface mounting suited for modern electronic designs.

6 inverter elements per chip ensure multiple logic inversions in a single IC. Schmitt trigger input provides hysteresis for clean switching in noisy environments. Low power consumption CMOS design reduces heat and power demands.

Supports supply voltages from 4.5V to 5.5V for flexible system integration. Push-pull outputs capable of 4mA sinking and sourcing current allow robust driving capability. Extended temperature range enhances reliability in various industrial applications.

Advanced ESD protection standards ensure durability against static discharge.

This inverter IC is suitable for use in electronics manufacturing, industrial automation, embedded system design, and other semiconductor-based logic applications. Its compliant TSSOP packaging and industry-standard logic family compatibility facilitate integration into diverse PCB designs and digital circuits.
