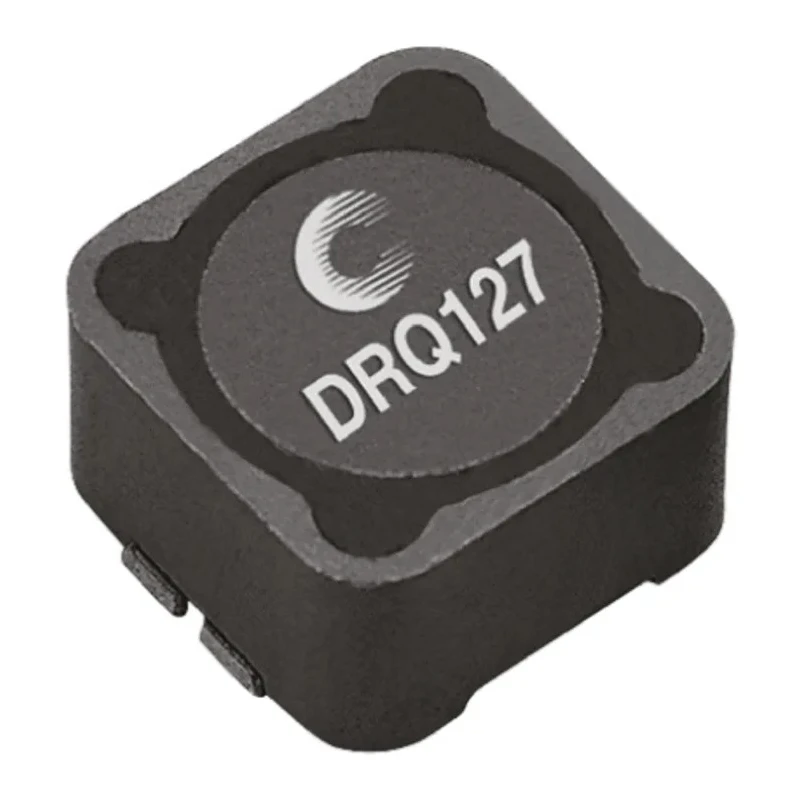

Eaton Shielded Surface Mount Inductor 330 μH ±20 % 2.01 A Idc Ferrite Core 0127 Case DRQ127-331-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Surface Mount Inductor 330 μH ±20 % 2.01 A Idc Ferrite Core 0127 Case DRQ127-331-R

Name: Eaton Shielded Surface Mount Inductor 330 μH ±20 % 2.01 A Idc Ferrite Core 0127 Case DRQ127-331-R
Brand: Eaton
SKU: 367429
Price: 1.36 USD
Availability: InStock



Category Surface Mount Inductors Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Height	8mm
Length	12.5mm
Model	DRQ127-331-R
Depth	12.5mm
Packaging	Reel
Series	DRQ
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	330μH
Standards/Approvals	RoHS
Package/Case	0127
Maximum DC Current	2.01A
Pin Count	4
Maximum DC Resistance	2.3Ω
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound

Key Features

Dual winding DRQ series suitable for coupled or single inductor use.
Constructed with a ferrite core for improved magnetic performance.
Wirewound inductor construction provides reliable electrical characteristics.
Surface mount termination style with 0127 package case dimensions.
Maximum operating temperature of 125°C ensures durability under thermal stress.
Inductance tolerance is ±20%, accommodating typical application variances.
Shielded design minimizes electromagnetic interference for sensitive circuits.
Maximum DC resistance of 2.3 Ω maintains efficiency in power delivery.

Product Description

Eaton DRQ127-331-R shielded surface mount inductor provides a high-quality 330 μH inductance with ±20% tolerance and supports a maximum DC current of 2.01 A, ideal for advanced electronic and power management applications.

This inductor features a ferrite core and wirewound construction, resulting in robust magnetic properties and consistent electrical performance. Its dual-winding design (DRQ series) supports configurations as either a single or coupled inductor, catering to a variety of power supply circuit needs including DC-DC converters.

The compact size with 0127 package case offers dimensions of 12.5 mm length, 8 mm height, and 12.5 mm depth, making it suitable for surface mount PCB assembly using reels packaging. It supports a maximum operating temperature of 125°C, ensuring reliability in demanding industrial environments.

As a shielded component, the DRQ127-331-R minimizes electromagnetic interference, making it suitable for use in sensitive electronics such as VRM inductors for CPUs and DDR power supplies, input/output filter chokes, and transformer applications like SEPIC and flyback.

Compliance with RoHS standards guarantees the product meets environmental regulations. Its surface mount termination style and four-pin count facilitate easy integration into automated assembly lines.

Dual winding design usable in single or coupled inductor applications. Ferrite core construction offers enhanced magnetic performance. Wirewound style ensures precise inductance and low losses. Shielded to reduce EMI and improve circuit stability.

High maximum operating temperature of 125°C for harsh environments. Compact 0127 case size with 12.5 mm length and depth, 8 mm height. RoHS compliant for environmental safety. Maximum DC resistance of 2.3 Ω for energy efficiency.

Four-pin package suitable for surface mount technology. Ideal for DC-DC converters, VRM inductors, and power supply filtering. Explore our Electronics & Electricals category for Surface Mount Inductors and related reliable components designed for industrial, commercial, and laboratory use.
