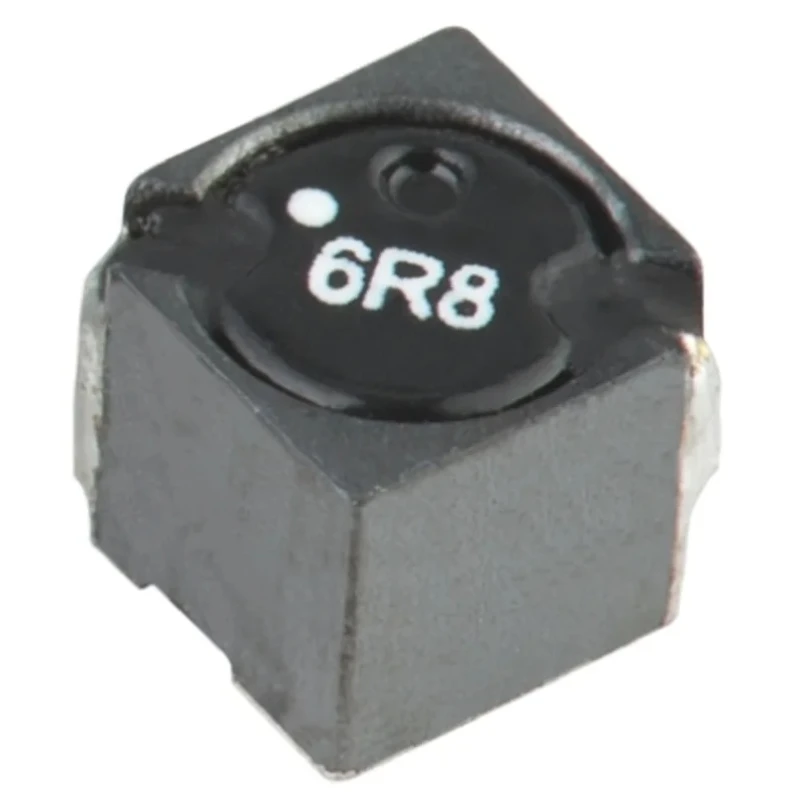

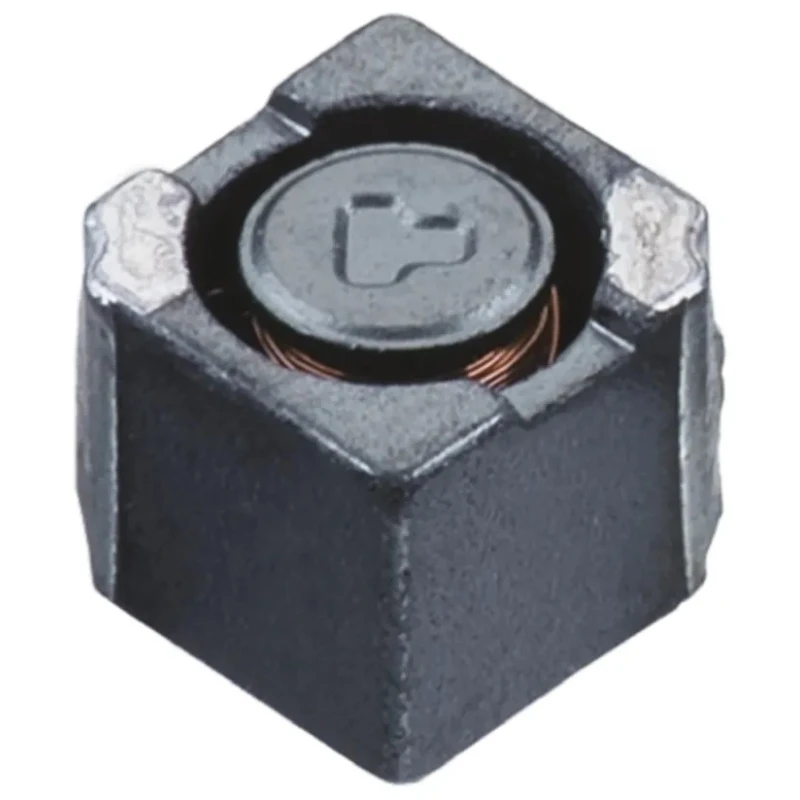

Wurth Elektronik Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±20 % 2 A Idc 74408943068

Wurth Elektronik 74408943068 is a shielded wirewound surface mount inductor featuring a ferrite core, providing an inductance of 6.8 μH with ±20 % tolerance and a maximum DC current of 2 A IDC. The compact 4838 package measures 4.8 mm in length, 3.8 mm in height, and 4.8 mm in depth, supporting a low DC resistance of 59 mΩ. This inductor is designed for demanding surface mount applications requiring excellent electrical performance and mechanical robustness.

Constructed with a high quality ferrite core and moulded encapsulation, the component offers superior magnetic shielding, minimizing leakage fields and improving efficiency. The inductor can operate reliably within the temperature range of -40°C up to 125°C, making it suitable for a variety of industrial, communication, and portable power device applications.

Compliant with JEDEC JS709B, REACH, and RoHS standards, the 74408943068 inductors are tape and reel packaged to enable high-volume automated PCB assembly lines. The wirewound construction ensures constant saturation characteristics and low self-losses, optimized for DC/DC converters, smartphones, PDAs, digital cameras, and embedded power modules.

This surface mount component supports a maximum self-resonant frequency of 34 MHz, enabling its use in high-frequency switching power electronics and filtering applications. It features two pins termination style for easy soldering, enhancing manufacturing efficiency and reliability.

Manufactured in China with strict quality control, this shielded inductor is a robust choice for engineers designing portable power solutions and digital electronic circuits. The WE-SPC series is known for its compact size, high current rating, and efficient magnetic shielding that supports robust operation in dense electronic environments.

The inductor features a ferrite core and a shielded wirewound construction. It supports a maximum DC current of 2 amperes. The package size is 4838 with dimensions 4.8 mm length, 3.8 mm height, and 4.8 mm depth. Operating temperature range is from -40°C to 125°C for reliable performance.

This component includes tape and reel packaging suitable for automated manufacturing. Maximum DC resistance is 59 milliohms, ensuring low power loss. It complies with JEDEC JS709B, REACH, and RoHS standards. Designed for surface mount termination style ensuring compact PCB integration.

Maximum self-resonant frequency of 34 MHz suitable for high-frequency applications. Manufactured in China and moulded for enhanced durability. Explore our selection of precision Surface Mount Inductors from Wurth Elektronik and other premium brands at EnvMart to meet your electronics manufacturing requirements.
