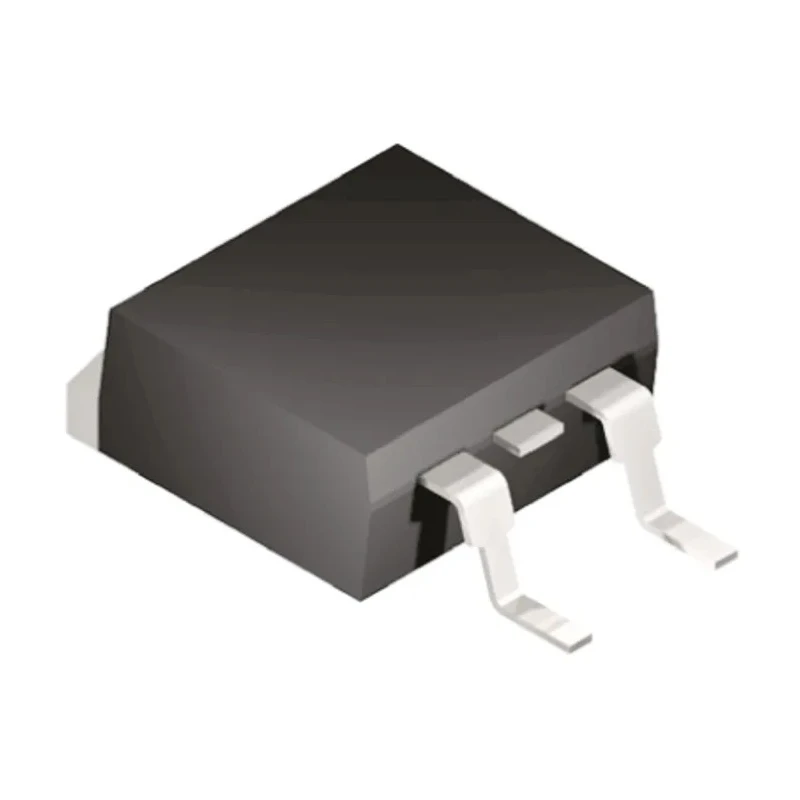

onsemi Schottky Diode 200 V 20 A Surface Mount TO-263 Package 3-Pin Common Cathode D2PAK

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Diode 200 V 20 A Surface Mount TO-263 Package 3-Pin Common Cathode D2PAK

Name: onsemi Schottky Diode 200 V 20 A Surface Mount TO-263 Package 3-Pin Common Cathode D2PAK
Brand: onsemi
SKU: 368305
Price: 1.59 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	4.83mm
Length	10.29mm
Model	D2PAK
Width	9.65mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	TO-263
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Common Cathode
Rectifier Type	Schottky
Peak Reverse Current Ir	50mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	900mV

Key Features

Maximum continuous forward current is rated at 20 amperes.
Peak reverse repetitive voltage reaches up to 200 volts, suitable for various power applications.
Featuring Schottky rectifier type for low forward voltage drop and fast switching.
Operational temperature range from -65°C to 150°C ensures broad environmental tolerance.
Compact dimensions with length 10.29 mm, width 9.65 mm, and height 4.83 mm facilitate compact PCB layouts.
Peak non-repetitive forward surge current capacity at 150 amperes supports transient conditions.
Built with 3 pins for stable mounting and electrical connection in TO-263 form factor.
Automotive standard AEC-Q101 qualification ensures reliability in automotive systems.

Product Description

onsemi MBRB20200CTT4G Schottky Diode is a high-performance discrete semiconductor designed for efficient power rectification in industrial, automotive, and electronic applications. This device features a 3-pin TO-263 surface mount package (D2PAK) and a common cathode configuration suitable for compact power circuit designs.

Rated for a maximum continuous forward current of 20 amperes and peak reverse repetitive voltage of 200 volts, this diode provides reliable operation in demanding environments. The Schottky barrier design offers low forward voltage drop, measured at a maximum of 900 mV, which reduces power dissipation and increases efficiency in switching circuits.

With an operating temperature range spanning from -65°C to 150°C, the MBRB20200CTT4G diode is built for durability across various industrial and automotive applications, complying with the AEC-Q101 automotive standard. Its compact dimensions (length 10.29 mm, width 9.65 mm, and height 4.83 mm) allow easy integration in tightly constrained PCB layouts.

The device can withstand peak non-repetitive forward surge currents up to 150 A, ensuring robustness during transient conditions. Its common cathode configuration and 3-pin count simplify circuit designs requiring Schottky rectifiers in power conversion, voltage clamping, and free-wheeling applications.

This diode is ideal for use in power supply units, automotive electronics, battery management systems, and other semiconductor-based power control systems. The surface mount TO-263 package supports automated assembly for high-volume production efficiency.

Maximum continuous forward current: 20A. Peak reverse repetitive voltage: 200V. Schottky rectifier type with low forward voltage drop (900 mV max). Operational temperature range from -65°C to 150°C. Compact 3-pin TO-263 (D2PAK) surface mount package.

Peak non-repetitive forward surge current: 150A. AEC-Q101 automotive standard compliant. Common cathode diode configuration. Precision dimensions for space-efficient PCB design. Explore more Schottky diodes and discrete semiconductor components on EnvMart for your industrial, automotive, and electronics manufacturing needs.
