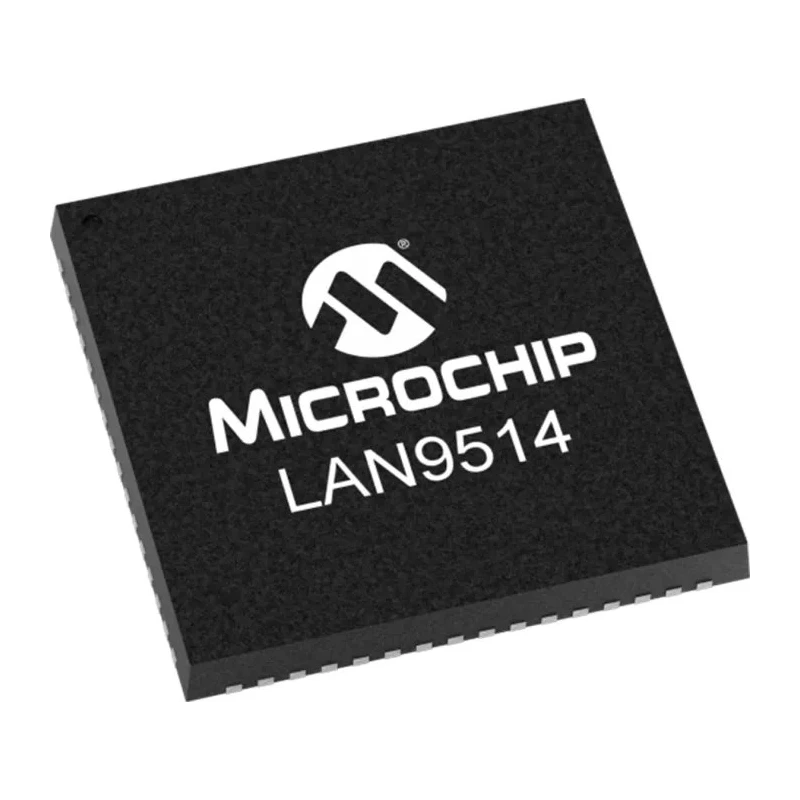

Microchip 64-Pin QFN Ethernet Controller 3.3 V 480 Mbps USB Full Duplex/Half Duplex LAN9514-JZX

Microchip LAN9514-JZX is a high-performance Ethernet controller integrated circuit designed for USB interface applications. It operates at 3.3 V with a maximum data transfer rate of 480 Mbps, suitable for full duplex and half duplex Ethernet communication. The device is packaged in a compact 64-pin QFN surface mount package with dimensions of 9 mm by 9 mm by 1 mm, which ensures easy integration into modern PCB designs.

This Ethernet controller complies with the IEEE 802.3u standard and provides a robust USB 2.0 hub and 10/100 Ethernet controller solution, making it ideal for embedded networking applications in industrial, commercial, and consumer electronics sectors.

The device operates efficiently with a supply current of 74 mA and is designed to function reliably within an operating temperature range from 0°C to 70°C. It does not conform to automotive standards, indicating its use primarily in non-automotive electronics equipment.

Its surface mount QFN package facilitates low-profile mounting, contributing to space savings in compact designs. The dual communication modes of full duplex and half duplex allow flexibility in network configurations and performance optimization depending on the specific application requirements.

64-Pin QFN package with surface mount technology. Supports USB 2.0 hub and 10/100 Ethernet controller functionalities. 480 Mbps maximum data rate for efficient network throughput. Compliance with IEEE 802.3u Ethernet standards.

3.3 V supply voltage for compatibility with modern electronics. Operating temperature from 0°C to 70°C suitable for typical industrial environments. Supply current of 74 mA ensures low power consumption. Designed for industrial, commercial, and consumer network controller applications.
