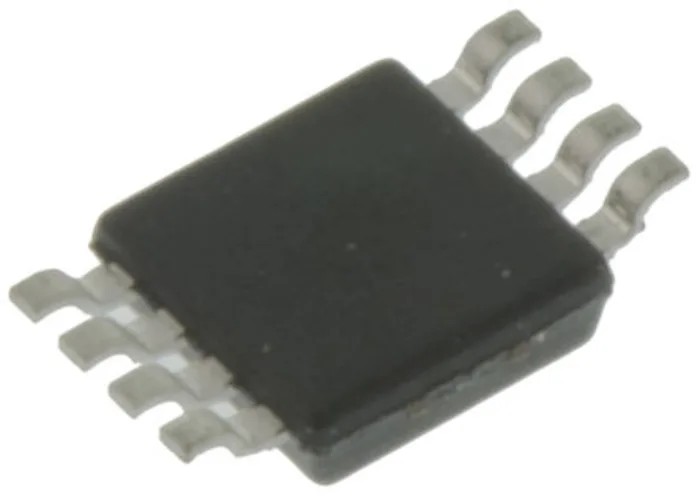

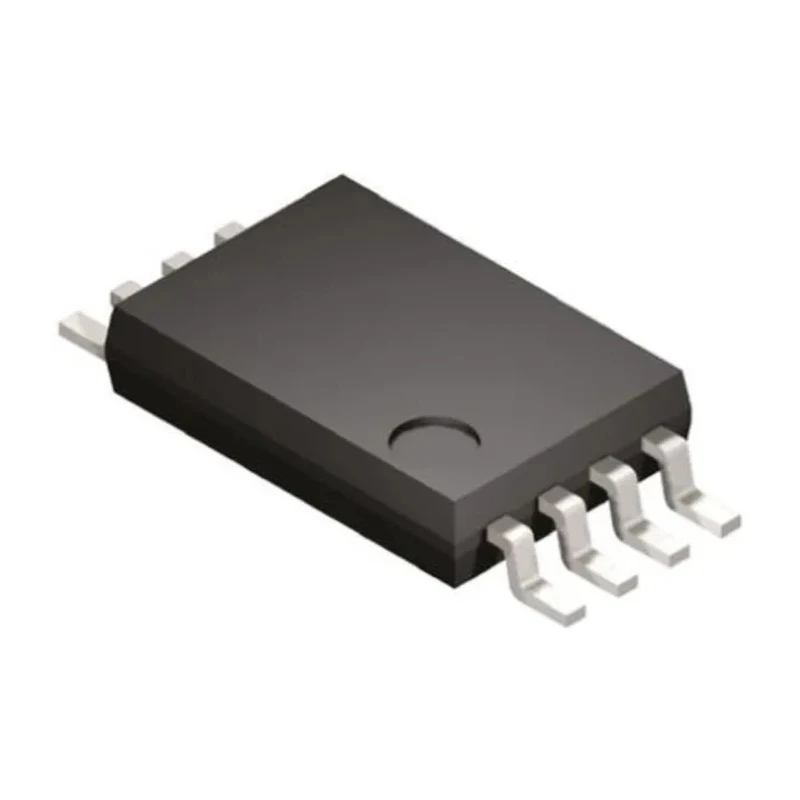

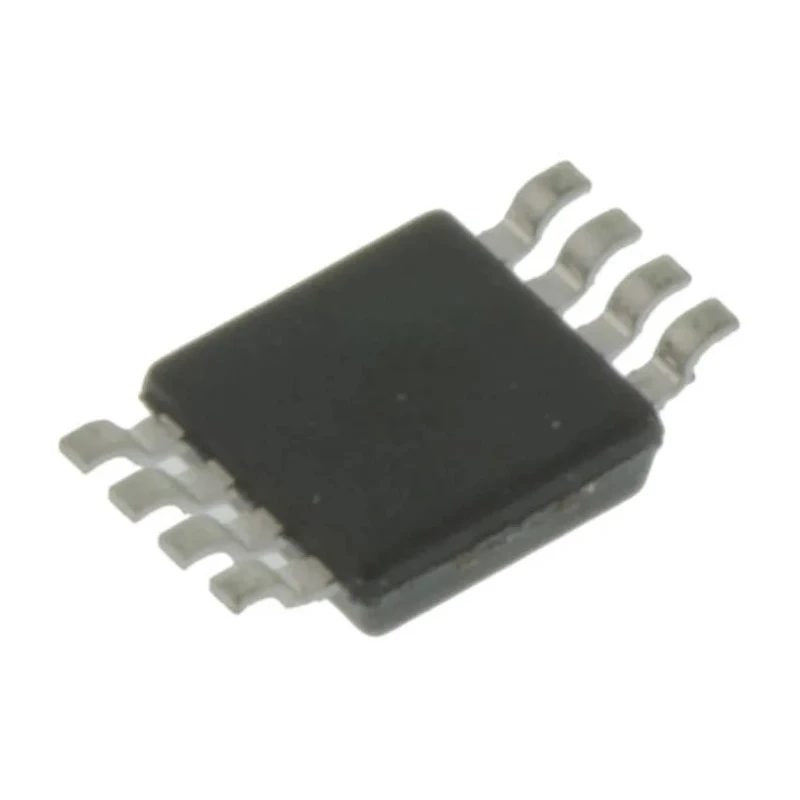

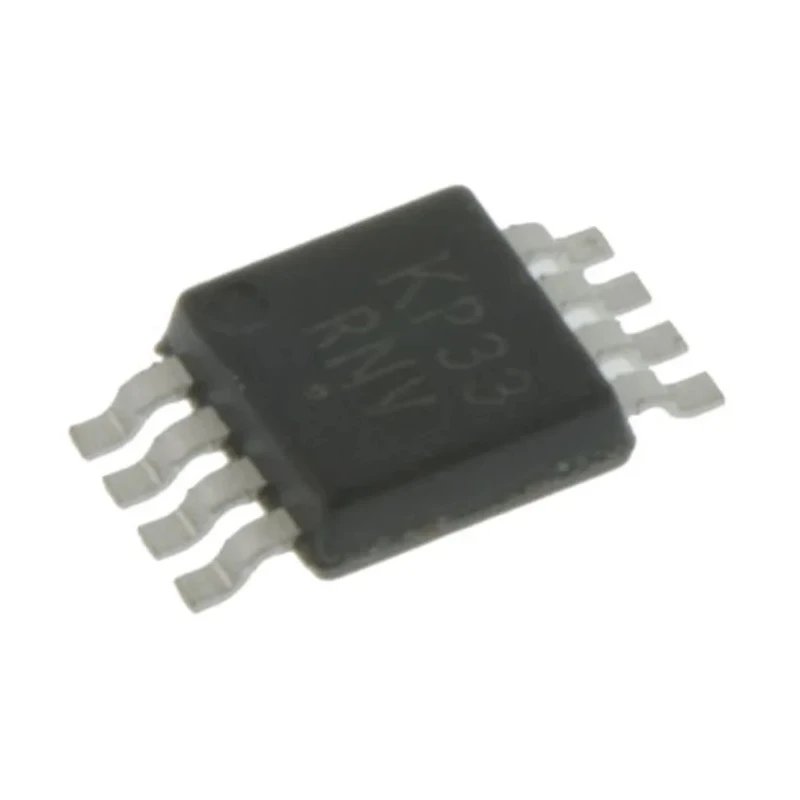

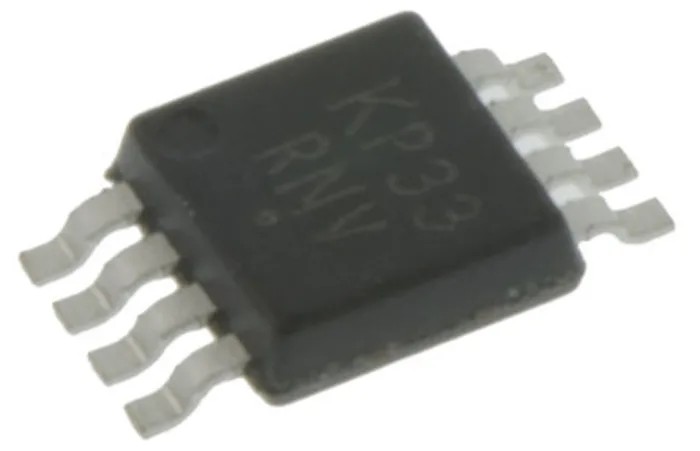

onsemi 1 2-Input XOR/XNOR Logic Gate, 8-Pin TSSOP MC10EP08DTG

onsemi MC10EP08DTG is a high-speed ECL (Emitter Coupled Logic) 1 2-Input XOR/XNOR logic gate housed in a compact 8-Pin TSSOP surface mount package. It is designed for electronic circuits that require fast switching speed and low propagation delay, making it suitable for industrial, laboratory, and commercial semiconductor applications.

This device offers a maximum propagation delay time of 320 picoseconds at a given capacitance load, ensuring rapid signal processing in complex digital systems. It operates within a supply voltage range of 3 V to 5.5 V and supports a wide temperature range from -40°C to 85°C, allowing reliable performance in harsh environments.

The MC10EP08DTG features a single logic element with two inputs per gate, providing XOR and XNOR logical functions using ECL input and output types. While it lacks Schmitt Trigger input functionality, it excels in precision digital logic applications due to its specialized ECL logic family design.

The small footprint of the TSSOP package, measuring 3.1 mm in length and 950 micrometers in height, supports high-density PCB layouts and surface mount manufacturing processes. This product does not carry specific automotive standard certifications but is ideal for general-purpose use in semiconductor logic gate circuits.

The device incorporates a single logic gate performing XOR and XNOR functions. Operates with ECL input and output types for high-speed logic. Compact 8-Pin TSSOP packaging supports surface mount assembly. Wide temperature operation from -40°C to 85°C for industrial reliability.

Low maximum propagation delay time of 320 ps ensures fast switching. Compatible operating voltage range from 3 V to 5.5 V. Single element with two inputs per gate design. Suitable for industrial, laboratory, and commercial electronic designs.

This MC10EP08DTG logic gate is ideal for integration into digital electronic systems requiring emitter coupled logic speed and accuracy. Its robustness across temperature and voltage ranges makes it useful in semiconductor research, industrial logic applications, and commercial electronic equipment.
