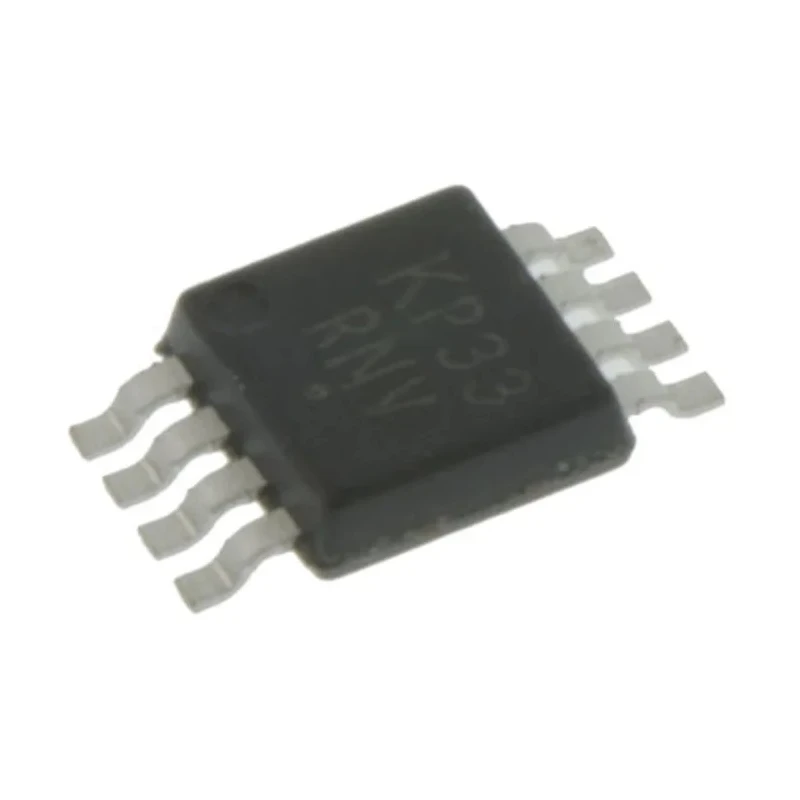

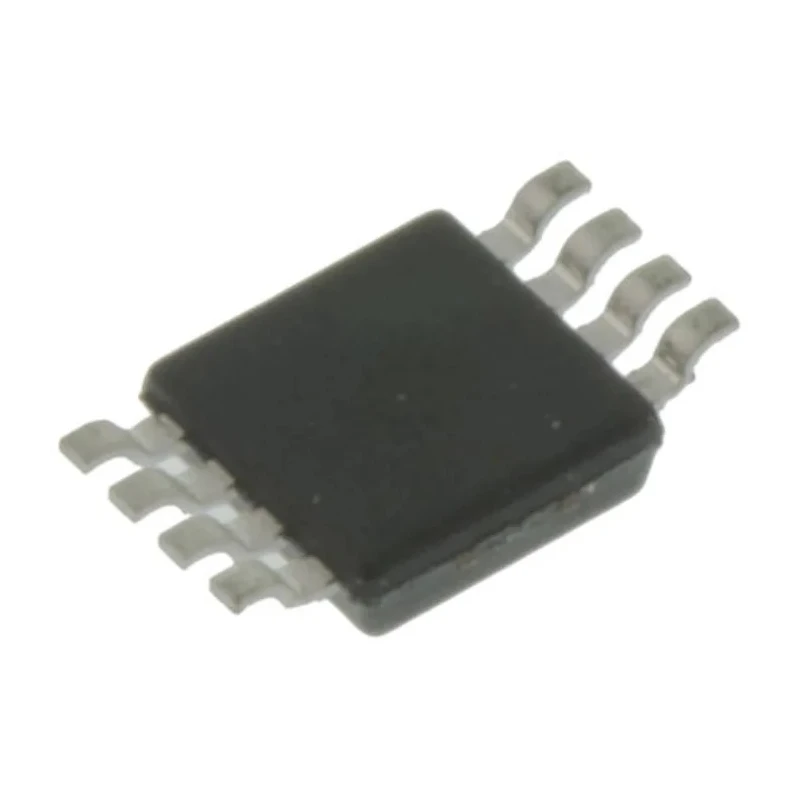

onsemi 1 2-Input XOR/XNOR Logic Gate, Surface Mount, 8-Pin TSSOP MC10EP08DTG

onsemi MC10EP08DTG 1 2-Input XOR/XNOR Logic Gate is a high-speed digital logic IC designed for use in electronic and semiconductor circuits. This logic gate employs Emitter Coupled Logic (ECL) technology to achieve rapid switching speeds suitable for advanced computing and communication equipment.

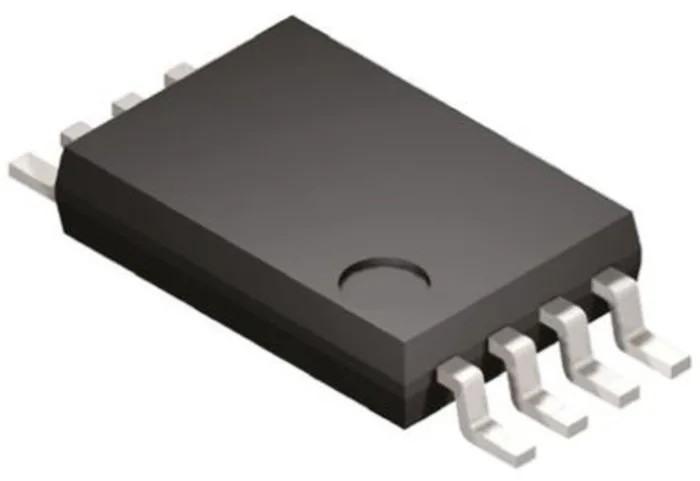

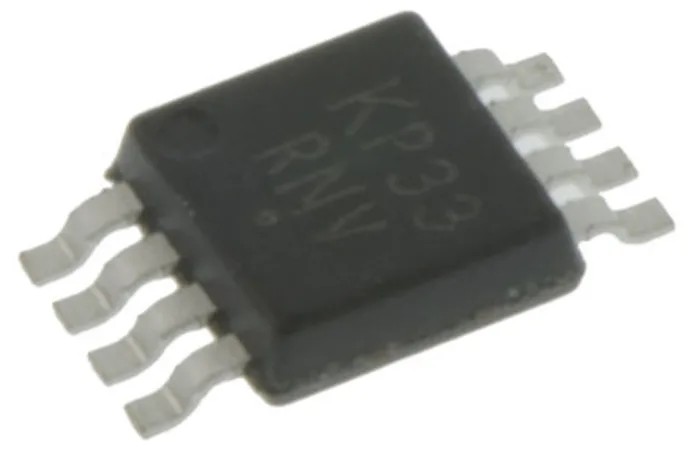

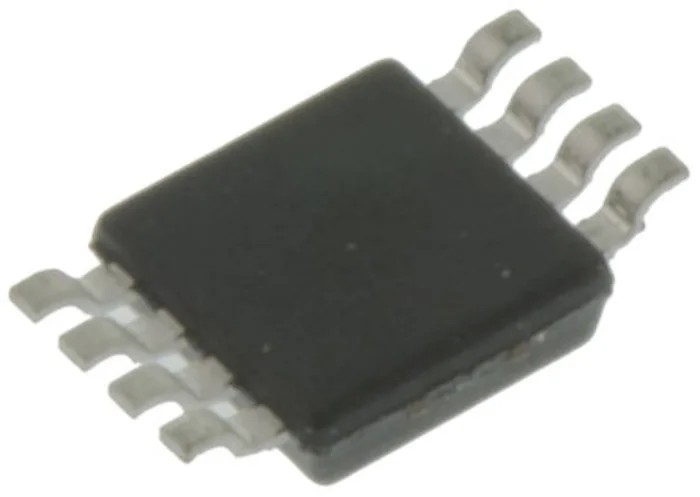

Housed in a compact 8-pin Thin Shrink Small Outline Package (TSSOP), it is optimized for surface mounting on printed circuit boards, making it ideal for space-constrained applications.

The device supports XOR and XNOR logical functions with a single element and dual inputs per gate. Operating voltages between 3V and 5.5V enable versatile usage across multiple digital circuit designs. It offers a maximum propagation delay of 320 ps at a given load capacitance, ensuring minimal latency.

Its operational temperature range from -40°C to 85°C allows deployment in industrial, commercial, and laboratory environments with varying thermal demands. The device does not include Schmitt trigger inputs and lacks automotive certification, focusing instead on core high-performance logic gate needs.

Features 1 logic element with 2 inputs for XOR/XNOR functions. Employs Emitter Coupled Logic for enhanced speed. Compact 8-pin TSSOP surface mount package. Operational voltage range of 3V to 5.5V. Propagates signals with a maximum delay of 320 ps.

Wide temperature tolerance from -40°C to 85°C. Physical dimensions: length 3.1 mm, height 950 μm. Designed for semiconductor and digital electronics applications. This logic gate is widely applicable in industrial automation, telecommunications, signal processing, and embedded electronic systems requiring high-speed logical operations.
