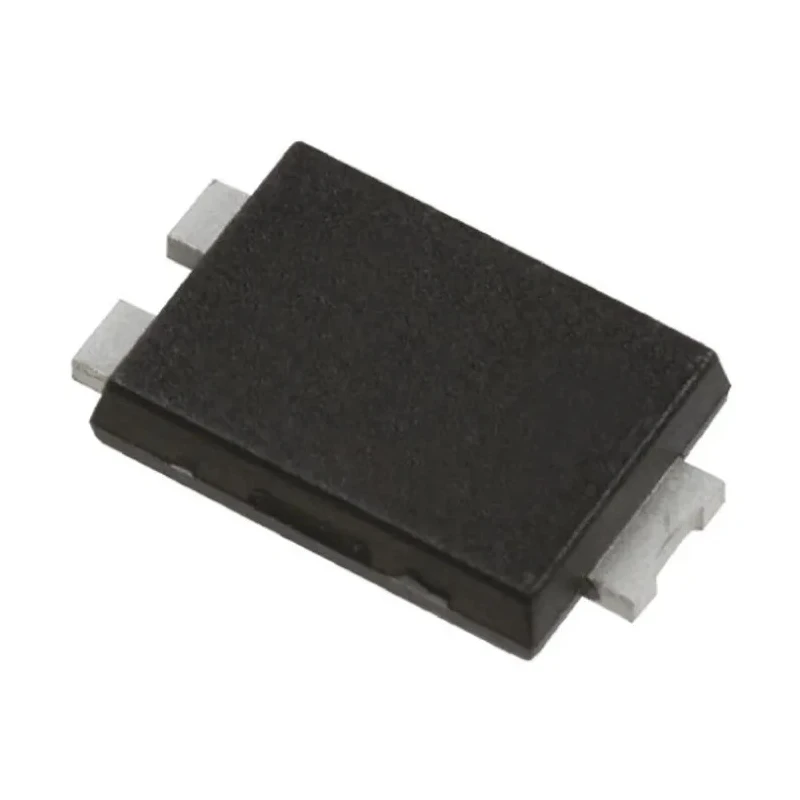

DiodesZetex 40 V 10 A Surface Mount Schottky Diode PowerDI5 PDS1040CTL-13

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 40 V 10 A Surface Mount Schottky Diode PowerDI5 PDS1040CTL-13

Name: DiodesZetex 40 V 10 A Surface Mount Schottky Diode PowerDI5 PDS1040CTL-13
Brand: DiodesZetex
SKU: 367487
Price: 0.98 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.15mm
Length	5.45mm
Model	PDS1040CTL-13
Width	4.05mm
Mount Type	Surface
Series	PDS1040CTL
Maximum Operating Temperature	150°C
Package Type	PowerDI5
Minimum Operating Temperature	-65°C
Standards/Approvals	FBI
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	25mA
Peak Non-Repetitive Forward Surge Current Ifsm	110A
Maximum Forward Voltage Vf	600mV

Key Features

Single diode configuration designed for surface mount applications.
PowerDI5 package with 3 pins for high-efficiency power rectification.
Maximum forward voltage drop of 600 mV ensures low power loss.
Wide operating temperature range from -65°C to 150°C for robust performance.
Peak non-repetitive surge current rating of 110 A for high transient tolerance.
Complies with automotive standard AEC-Q101 for reliability in automotive applications.
Designed for high efficiency and thermal stability with Schottky barrier technology.

Product Description

DiodesZetex PDS1040CTL-13 is a 3-pin surface mount Schottky diode designed for efficient power rectification with a peak reverse voltage of 40 V and maximum continuous forward current of 10 A. Its PowerDI5 package supports compact mounting and excellent thermal management capabilities.

This diode features a low forward voltage drop of 600 mV, reducing power losses and improving efficiency in electronic circuits. The device operates reliably across a wide temperature range from -65°C to 150°C, making it suitable for demanding industrial, automotive, and power electronics applications.

The peak non-repetitive forward surge current rating of 110 A allows the diode to withstand high transient current spikes safely without damage. It complies with the automotive standard AEC-Q101, underscoring its robustness for automotive electronic systems.

Measuring just 5.45 mm in length, 4.05 mm in width, and 1.15 mm in height, the compact PowerDI5 package supports space-saving PCB layouts. The diode's Schottky barrier technology ensures high efficiency, low forward voltage drop, and excellent thermal stability, making it ideal for power management and rectification tasks in industrial and automotive electronics.

Single diode configuration designed for surface mount applications. PowerDI5 package with 3 pins for high-efficiency power rectification. Maximum forward voltage drop of 600 mV ensures low power loss. Wide operating temperature range from -65°C to 150°C for robust performance.

Peak non-repetitive surge current rating of 110 A for high transient tolerance. Complies with automotive standard AEC-Q101 for reliability in automotive applications. Compact dimensions: 5.45 mm length, 4.05 mm width, and 1.15 mm height.

Designed for high efficiency and thermal stability with Schottky barrier technology.

This product is widely used in industrial power supplies, automotive electronics, and other applications requiring reliable, efficient rectification solutions. Browse the Schottky Diodes & Rectifiers category on EnvMart for more advanced semiconductor components and similar devices.
