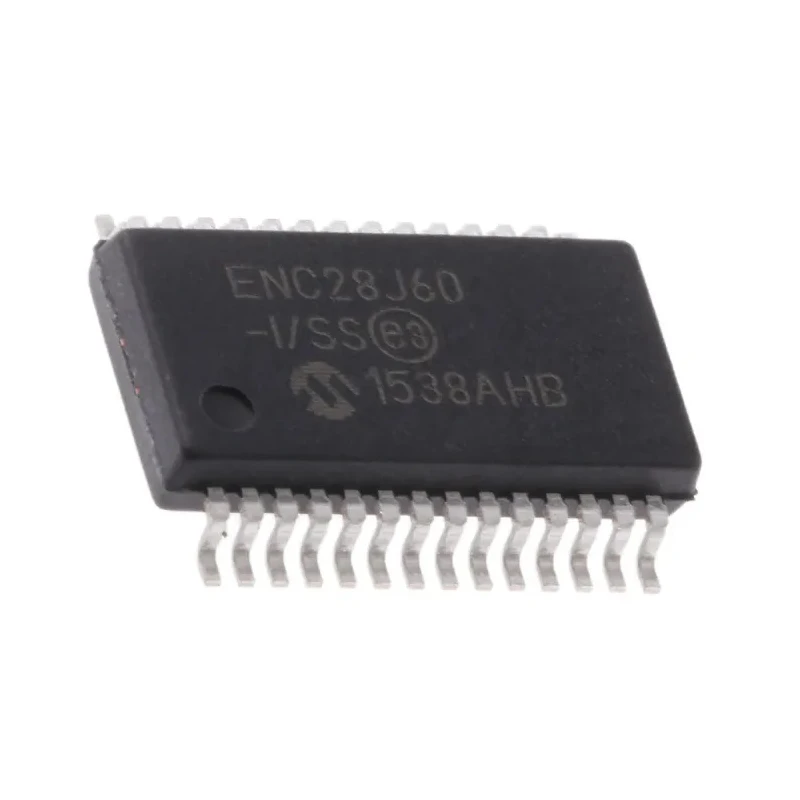

Microchip 28-Pin SSOP Controller IC 3.3 V 10 Mbps Serial-SPI Full Duplex/Half Duplex ENC28J60-I/SS

Free Delivery in India | Lowest Global Shipping Charges

Microchip 28-Pin SSOP Controller IC 3.3 V 10 Mbps Serial-SPI Full Duplex/Half Duplex ENC28J60-I/SS

Name: Microchip 28-Pin SSOP Controller IC 3.3 V 10 Mbps Serial-SPI Full Duplex/Half Duplex ENC28J60-I/SS
Brand: Microchip
SKU: 367557
Price: 5.65 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	2mm
Length	10.5mm
Model	ENC28J60-I/SS
Width	5.6mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Communication Mode	Full Duplex/Half Duplex
Interface Type	Serial-SPI
Pin Count	28
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3.3V
Maximum Data Rate	10Mbps
Loopback Mode	Internal
Standard Supported	IEEE 802.3

Key Features

Operates between 3.3 V and 3.6 V supply voltages for efficient power usage.
Utilizes IEEE 802.3 standard compatibility to ensure network interoperability.
Supports internal loopback mode for diagnostics and testing.
Surface mount package with 28 pins in SSOP form factor for compact PCB design.
Wide operating temperature range from -40°C to 85°C for industrial reliability.
Integrated MAC and PHY layers simplify Ethernet implementation.
Supports SPI interface with clock speeds up to 25 MHz for fast data transfer.
Designed for applications in industrial automation, building automation, instrumentation, and security systems.

Product Description

Microchip ENC28J60-I/SS is a highly integrated 28-Pin SSOP Controller IC delivering 10 Mbps bandwidth compliant with IEEE 802.3 standards. It operates at a supply voltage range of 3.3 V to 3.6 V and supports both full duplex and half duplex communication modes through a Serial-SPI interface, clocked up to 25 MHz. This device features onboard MAC and PHY components, enabling efficient Ethernet networking in a small, surface-mount package.

The IC includes an internal loopback mode which aids in system testing and debugging. Its extended operating temperature range from -40°C to 85°C makes it suitable for demanding environments commonly encountered in industrial machines, building automation, security installations, and instrumentation applications.

With a compact 28-pin SSOP package measuring 10.5 mm length, 5.6 mm width, and 2 mm height, the ENC28J60-I/SS controller IC simplifies PCB design by integrating essential Ethernet functions. The device supports MAC unicast, multicast, and broadcast packets, making it versatile for various Ethernet communication needs.

Typical applications include industrial automation, home control systems, building automation, voice over IP (VoIP) systems, and secure instrumentation. The IC's onboard DMA capabilities enhance performance by accelerating memory transfers. This makes the ENC28J60-I/SS controller IC a reliable and efficient solution for Ethernet-based communications.

Operates at supply voltages from 3.3 V to 3.6 V for energy-efficient performance. Supports full duplex and half duplex communication modes for flexible networking. Features integrated MAC and PHY layers for simplified Ethernet interface design.

Complies with IEEE 802.3 Ethernet standards. Encapsulated in a 28-pin SSOP surface mount package for compact installations. Wide temperature range from -40°C to 85°C suitable for industrial environments. Supports internal loopback mode for system diagnostics.

SPI interface supports clock speeds up to 25 MHz for fast data transfer. This Microchip Ethernet controller IC is ideal for a broad range of electronic and industrial applications demanding reliable 10BASE-T Ethernet connectivity.
