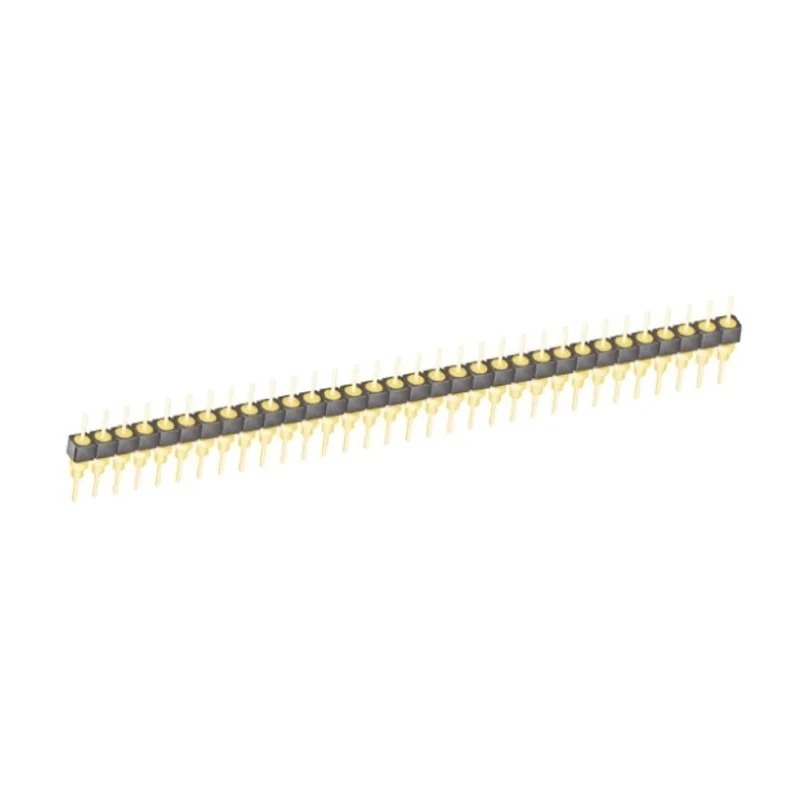

Samtec BBS Series 32 Contact Straight Through Hole Pin Header 2.54mm Pitch 1 Row Unshrouded BBS-132-G-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBS-132-G-A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Brass |
| Series | BBS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9707 typically |
Key Features
- This pin header is fabricated from black glass filled polyester housing for high durability.
- Brass contacts with a 0.51μm gold plating ensure reliable electrical connectivity.
- The component supports a current rating of 1 ampere and operates within a temperature range of -55°C to 125°C.
- It features a straight orientation with male contact gender and solder termination type.
- Designed with a 3.18mm tail pin length, it mates compatibly with SL and SS series socket strips.
- The standardized 2.54mm board-to-board pitch enables versatility in electronic applications.
- It is ideal for electronics manufacturing, PCB assembly, and prototyping tasks.
Product Description
Samtec BBS-132-G-A is a high-quality PCB pin header from the BBS series designed for board-to-board connections. Featuring 32 individual contacts arranged in a single row with a 2.54mm pitch, this through-hole mounted header ensures robust electrical performance in industrial electronics, manufacturing, and assembly environments.
The housing is made from black glass filled polyester material, providing mechanical strength and heat resistance over a wide operating temperature range from -55°C to 125°C. The brass contacts are plated with 0.51μm thick gold for excellent conductivity and corrosion resistance, ensuring long-term reliability.
This unshrouded pin header features a straight orientation with male contact gender and a solder termination type suited for through-hole PCB applications. The tail pin length is 3.18mm, while mating compatibility is assured with corresponding SL series low profile and SS series socket strips, facilitating flexible system integration.
Common applications include industrial electronics assembly, wire-to-board and board-to-board interconnection solutions, and prototyping on standard pitch PCBs. The BBS series' standardized form factor aids in simplifying design and manufacturing processes for OEMs and electronics integrators.
Fabricated from durable glass filled polyester housing. Gold plated brass contacts for reliable electrical connectivity. Operates reliably within -55°C to 125°C temperature range. Single row with 32 contacts and 2.54mm pitch ensures standardization.
Straight orientation and male contact gender design. Solder termination type for secure through-hole mounting. Compatible with SL and SS series socket strips for flexible mating options.
This Samtec BBS-132-G-A PCB header offers consistent performance in electronic components manufacturing, prototyping, testing laboratories, and communications equipment assembly. Explore more high-quality PCB connectors and headers in the relevant EnvMart category to complete your industrial and electronic solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1 ampere, making it suitable for various electronic applications.
The BBS-132-G-A operates within a temperature range of -55°C to 125°C, allowing for use in diverse environments.
This pin header features 32 individual contacts arranged in a single row, facilitating multiple connections.
The pitch size of the BBS-132-G-A is 2.54mm, which is a standardized measurement for board-to-board connections.
The housing is made from glass filled polyester, and the contacts are brass plated with 0.51μm gold for improved conductivity and corrosion resistance.
It features a solder termination type, which is suitable for secure through-hole mounting on PCBs.
Yes, it is compatible with SL series low profile and SS series socket strips, facilitating flexible mating options.
The tail pin length of the BBS-132-G-A is 3.18mm, designed for effective PCB integration.
The BBS-132-G-A has a straight orientation, which is typical for many through-hole applications.
This model is ideal for electronics manufacturing, PCB assembly, and prototyping tasks, providing reliable connections in various setups.
The country of origin for this pin header is India, reflecting its manufacturing location.
The unshrouded design allows for easier access and flexibility in mating with other components, enhancing its usability in various applications.
