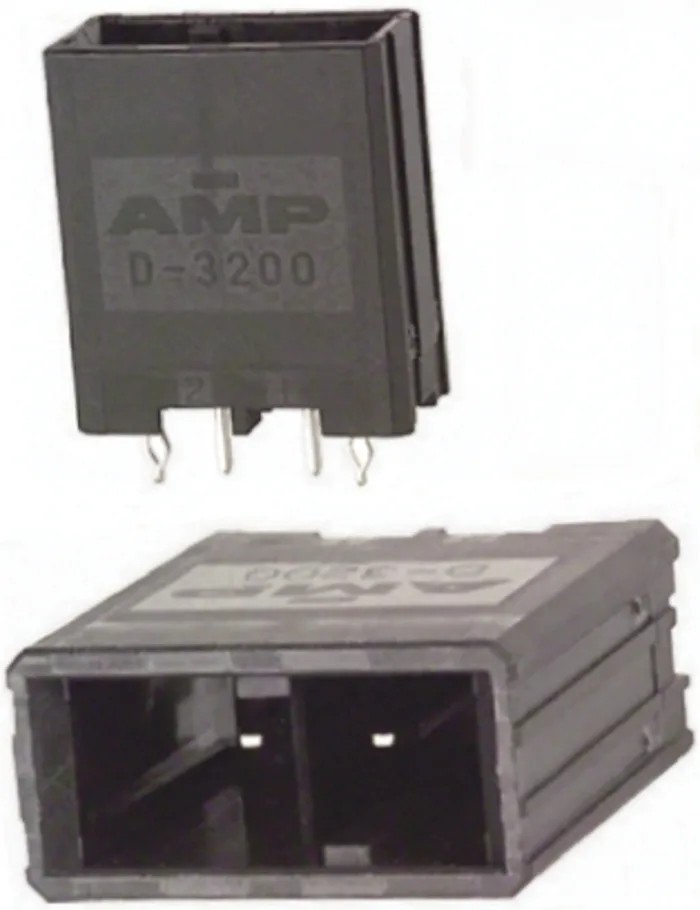

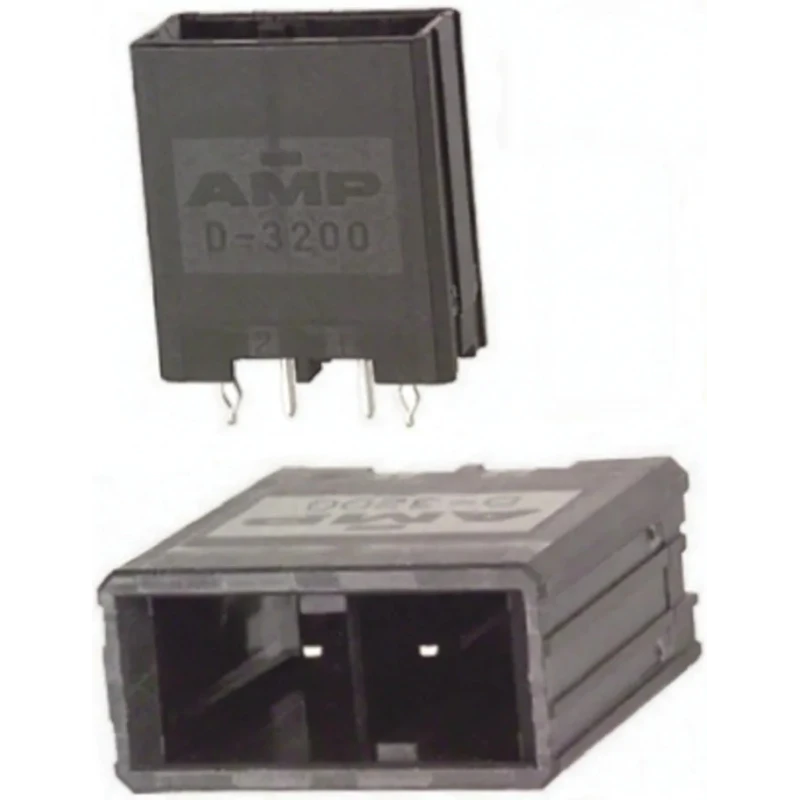

TE Connectivity D-3000 Series Straight Through Hole PCB Header, 3 Contact(s), 5.08 mm Pitch, 1 Row, Shrouded 1-178136-2

TE Connectivity 1-178136-2 model D-3000 Series Straight Through Hole PCB Header is a high-quality wire-to-board connector designed to provide reliable electrical connections in demanding industrial and electronic applications. This header features 3 male contacts arranged in a single row with a 5.08 mm pitch, allowing for precise and secure mating with compatible connectors.

The connector housing utilizes tough glass filled polyester material which offers excellent mechanical strength and thermal resistance, capable of withstanding operating temperatures from -55°C to 105°C. The copper alloy contacts are plated with gold to ensure low resistance and long-term corrosion protection, crucial for maintaining signal integrity and performance in harsh environments.

The D-3000 series header is designed for through-hole mounting on printed circuit boards (PCBs) typically between 1.0 to 1.6 mm thick. The solder termination style enables a secure and durable solder joint. It supports a maximum current of 15A and voltage up to 600V, making it suitable for power distribution as well as signal transmission tasks in industrial control systems, automation equipment, and power electronics.

The shrouded and straight design offers enhanced safety by preventing accidental contact with the pins and ensuring correct orientation during mating. This reduces assembly errors and increases connector reliability in production environments. The D-3200 family also includes compatible housings like stock number 680-1578 to complete assembly configurations.

This connector complies with industry standards for durability and performance, although it has no specific external certifications listed. Ideal applications include industrial control panels, power supplies, manufacturing equipment, and other electronic assemblies requiring robust and high-current PCB connections.

This PCB header features a shrouded, straight orientation with one row of contacts for secure and safe connection. It supports a voltage rating of 600V and current rating of 15A, suitable for high-power applications. The housing is made of glass filled polyester, providing excellent durability and temperature resistance.

Contacts are male type, made of copper alloy with gold plating to enhance conductivity and corrosion resistance. Designed for through-hole mounting with solder termination type for robust board integration. Operating temperature ranges from -55°C to 105°C, allowing use in harsh environmental conditions.

Compatible with D-3200 series housings for enhanced flexibility in connector assemblies. Recommended PCB thickness for mounting is between 1.0 to 1.6 mm for optimal performance. Explore more from the TE Connectivity brand and related PCB header products on EnvMart to find optimal connectors for your industrial and electronics projects.
