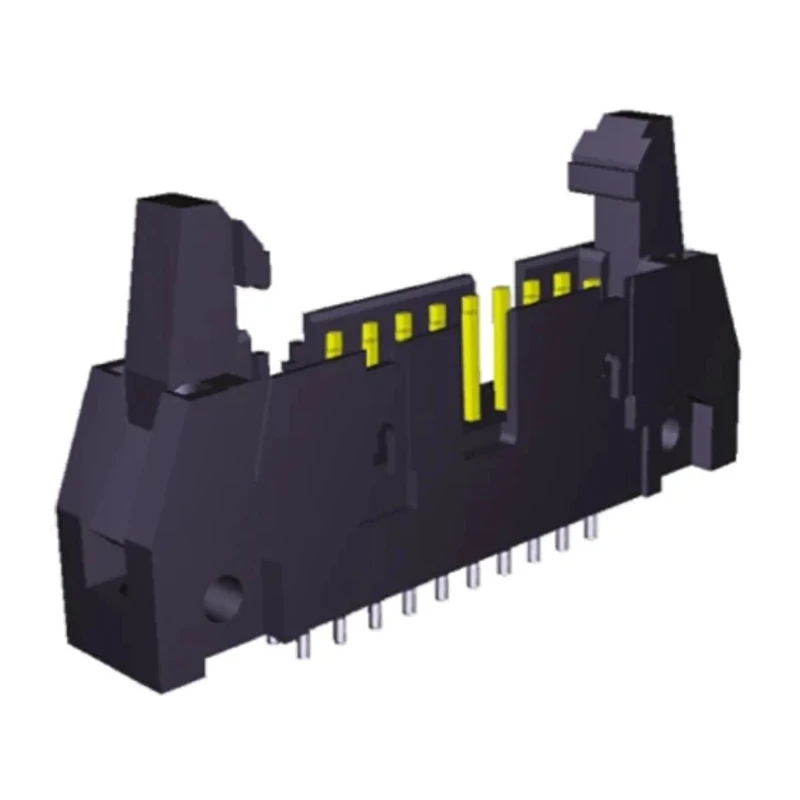

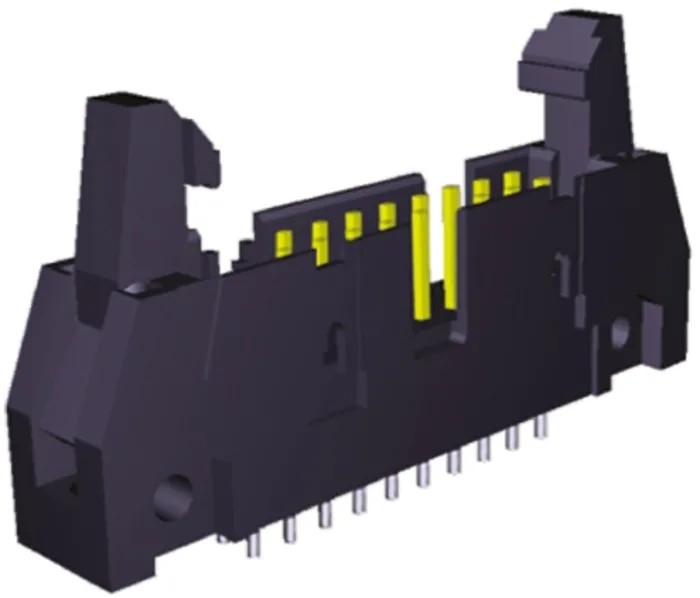

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded 5499910-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header supports a current rating of 1 ampere for safe electrical performance.
- It features a through hole mounting type with a straight orientation for durable physical attachment.
- The header uses thermoplastic housing material suitable for operating temperatures from -65°C to 105°C.
- Ejector latches provide secure mating and easy removal with long and short latch options.
- Compatible with a wide range of applications including PCs, medical equipment, and industrial controls.
- Operating voltage rating is 250 volts, ensuring reliable signal transmission.
- Contact plating with gold enhances corrosion resistance and conductivity.
- Designed for wire-to-board connection systems with male contact gender and solder termination type.
Product Description
TE Connectivity 5499910-1 AMP-LATCH Series Straight Through Hole PCB Header is engineered for reliable and secure wire-to-board connections in electronic devices and industrial equipment. Featuring 10 gold-plated brass contacts arranged in 2 rows with 2.54 mm pitch, this shrouded male header ensures precision mating and durability.
The connector is constructed with a thermoplastic housing material that withstands an operating temperature range from -65°C to 105°C, making it suitable for harsh environments. Its through hole mounting and straight orientation provide strong mechanical stability on printed circuit boards.
The AMP-LATCH series includes military, center, and dual polarization designs, with ejector latches configured for easy secure connections and removal. Options for long and short latches allow compatibility with ribbon cable receptacles either with or without strain relief, enhancing versatility.
This PCB header is rated for 1 amp current and 250 volts, meeting electrical demands of various industrial, business, medical, storage, networking, and testing applications. The gold plating on contact surfaces boosts corrosion resistance and excellent conductivity for reliable signal integrity.
The shrouded connector housing protects contacts from physical damage and accidental shorts, improving the overall reliability of the assembly. Termination type is solder, common in PCB assembly processes.
Supports current rating of 1 ampere for dependable electrical performance. Through hole mounting and straight orientation for mechanical durability. Thermoplastic housing withstands broad temperature range from -65°C to 105°C.
Ejector latch options secure easy mating and removal of connectors. Gold-plated brass contacts ensure excellent conductivity and corrosion resistance. Shrouded design protects contacts enhancing connection reliability. Ideal for industrial, medical, networking, and electronic device applications.
Wire-to-board connector system with male contacts and solder termination.
This model 5499910-1 is a standard component for designers and manufacturers requiring a high-quality, robust PCB header solution within the electronics and power connectors categories on EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 1 ampere, ensuring safe electrical performance.
The maximum operating temperature for this model is 105°C, making it suitable for various environments.
It uses a solder termination type, which is common in PCB assembly processes.
The AMP-LATCH Series header features 10 contacts arranged in 2 rows.
The pitch of the contacts is 2.54 mm, ensuring compatibility with standard PCB layouts.
The housing is made from thermoplastic material, which provides durability and resistance to various temperatures.
This model is shrouded, which helps protect the contacts from physical damage and accidental shorts.
The voltage rating for this PCB header is 250 volts, ensuring reliable signal transmission.
It supports a wire-to-board connector system with male contact gender.
This model is compatible with a wide range of applications, including PCs, medical equipment, and industrial controls.
The country of origin for this product is India.
