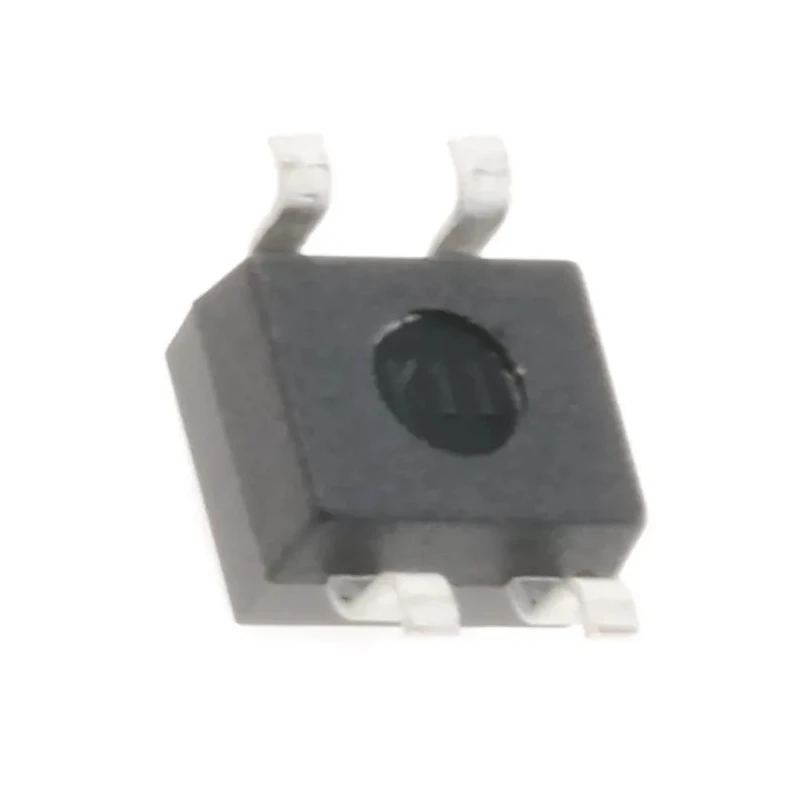

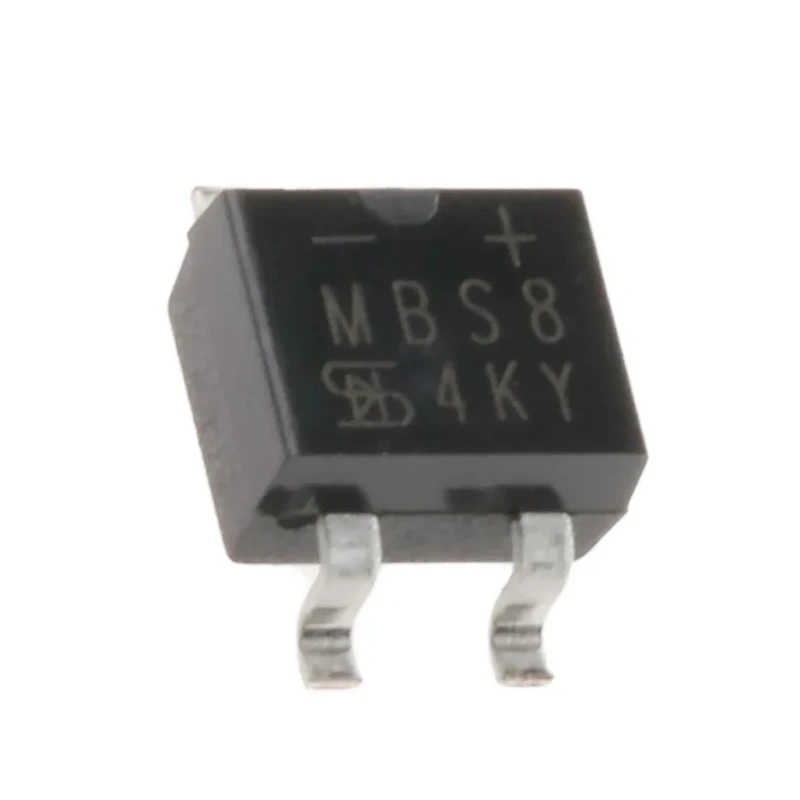

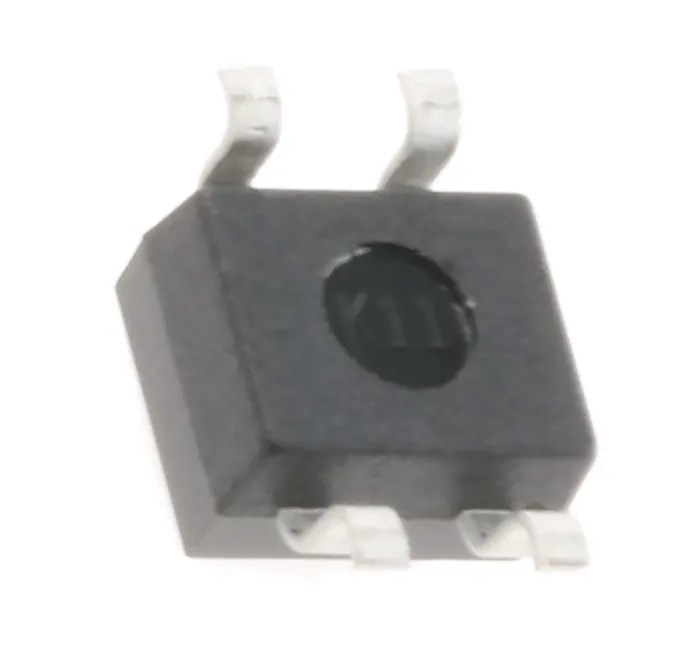

Taiwan Semiconductor Bridge Rectifier 800 V 35 A 4-Pin Surface Mount MBS Series MBS8
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 4.9mm |
| Model | MBS8 |
| Width | 4mm |
| Mount Type | Surface |
| Series | MBS |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | MBS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Forward Current If | 800mA |
| Peak Forward Voltage Vf | 1V |
Key Features
- Converts AC input to DC output with a single bridge configuration.
- Compact size ensuring easy installation on printed circuit boards.
- Supports a maximum reverse repetitive voltage of 800 V.
- Forward current rating of 800 mA with surge current up to 35 A.
- Operational temperature range from -55°C to 150°C.
- Package type MBS with four pins for surface mount applications.
- Low forward voltage drop of 1 V for efficient performance.
- Meets automotive standard AEC-Q101 for reliability.
Product Description
Taiwan Semiconductor MBS8 Bridge Rectifier is a high-performance surface mount semiconductor designed for converting alternating current (AC) into direct current (DC). Rated at 800 V for peak reverse repetitive voltage and 35 A for peak non-repetitive forward surge current, this 4-pin single-phase rectifier from the MBS series is tailored for PCB applications, offering compact dimensions of 4.9 mm length, 4 mm width, and 2.7 mm height.
This device supports a continuous forward current of 800 mA with a minimal forward voltage drop of 1 V, ensuring efficient energy conversion while minimizing heat generation. It operates reliably in environmental temperatures ranging from -55°C to 150°C, making it suitable for diverse industrial and automotive applications.
The MBS8 bridge rectifier meets the stringent automotive qualification AEC-Q101, enhancing confidence in its performance under rigorous conditions. Its surface mount design facilitates straightforward reflow soldering on printed circuit boards, enabling optimal integration in compact electronic circuits.
Typical applications include power supply circuits, motor control, industrial automation, and automotive electronics where robust and reliable DC power conversion is critical. The low peak reverse current of 100 μA adds to its durability by reducing leakage losses.
Converts AC input to DC output with a four-diode bridge arrangement. Compact and easy to mount on PCBs using surface mount technology. Maximum operating temperature is 150°C. Supports automotive industry standards (AEC-Q101) for enhanced reliability.
Package type: MBS, suitable for automated assembly lines. Operational from -55°C minimum to 150°C maximum. Peak forward voltage of 1 V ensures efficient conduction. Pin count of 4 supports stable and secure mounting. Height of 2.7 mm complements PCB space saving design.
Utilize Taiwan Semiconductor MBS8 Bridge Rectifiers for efficient AC to DC conversion across industrial, automotive, and electronic device manufacturing sectors. For additional products and technical details explore the semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MBS8 bridge rectifier supports a maximum reverse repetitive voltage of 800 V.
It has a continuous forward current rating of 800 mA.
The peak non-repetitive forward surge current for this model is 35 A.
This model measures 4.9 mm in length, 4 mm in width, and 2.7 mm in height.
It operates reliably within a temperature range of -55°C to 150°C.
The peak forward voltage drop is 1 V, which ensures efficient energy conversion.
This model meets the automotive standard AEC-Q101 for reliability.
It has a pin count of 4, suitable for surface mount applications.
The MBS8 features a single bridge configuration for AC to DC conversion.
The peak reverse current is 100 μA, which helps reduce leakage losses.
This bridge rectifier uses a surface mount design for easy installation on printed circuit boards.
It is suitable for power supply circuits, motor control, industrial automation, and automotive electronics.
