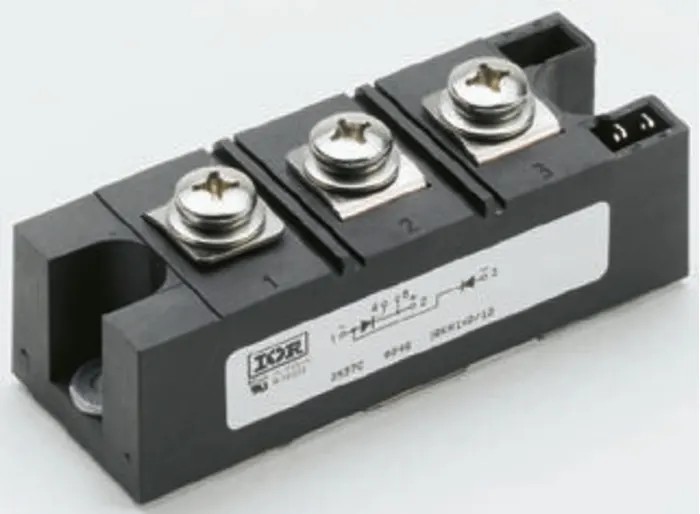

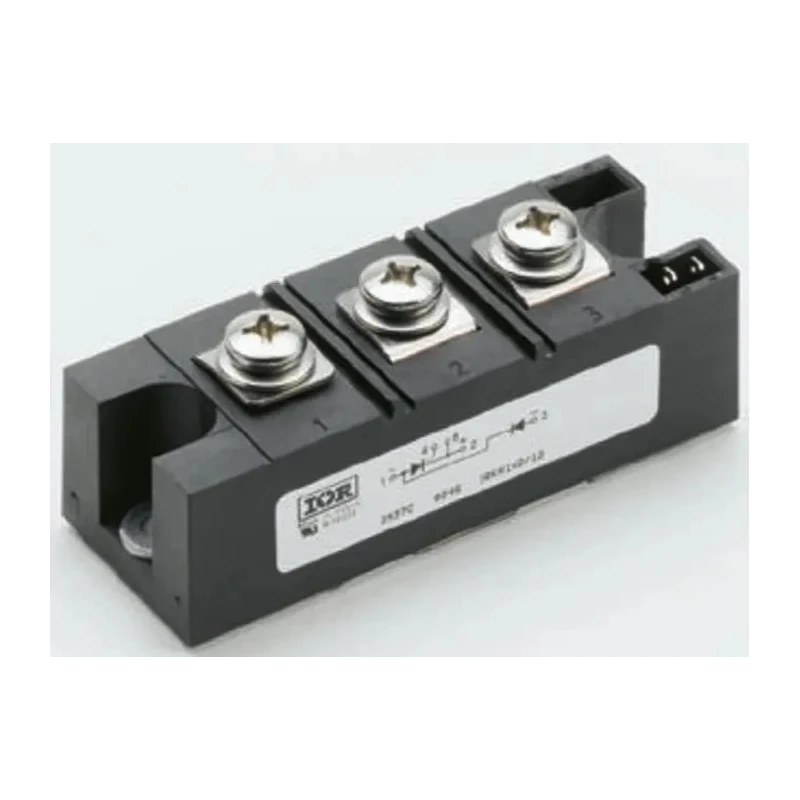

Vishay 600 V 435 A Diode Recovery 3-Pin INT-A-PAK VS-VSKCU300/06PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 28mm |
| Length | 94mm |
| Model | VS-VSKCU300/06PBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 435A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 50mA |
| Maximum Forward Voltage Vf | 1.96V |
| Peak Reverse Recovery Time trr | 260ns |
Key Features
- Maximum continuous forward current of 435 amperes ensures robust current handling capability.
- Peak reverse repetitive voltage rating of 600 volts offers high voltage endurance.
- Common cathode diode configuration suitable for multiple rectification setups.
- Low maximum forward voltage of 1.96 volts minimizes power losses during operation.
- Peak reverse recovery time of 260 nanoseconds allows ultrafast switching and recovery performance.
- Mount type is panel for secure and stable installation in assemblies.
- Package type INT-A-PAK with a 3-pin count supports compact and reliable mounting.
- Operational temperature range from -40°C to 150°C ensures durability under extreme environments.
Product Description
Vishay VS-VSKCU300/06PBF Diode Recovery 3-Pin INT-A-PAK is an industrial-grade semiconductor component engineered to provide high current and voltage rectification with fast recovery characteristics. Rated for a maximum continuous forward current of 435 amps and peak reverse voltage of 600 volts, this diode is ideal for demanding power electronics, industrial machinery, and electronic subsystems where reliable switching and quick recovery are essential.
Featuring a common cathode configuration and an INT-A-PAK package with 3 pins, it supports panel mounting, ensuring secure and stable mechanical and electrical connection. The diode offers a low maximum forward voltage of 1.96 V which reduces conduction losses and enhances overall system efficiency.
Designed for rugged use, it operates reliably in temperatures from -40°C to 150°C, making it suitable for harsh industrial, automotive, and electronic environments. Its peak reverse recovery time of 260 nanoseconds enables ultrafast operation, minimizing switching losses and improving device performance in high-speed circuits.
Physical dimensions of 94 mm length, 35 mm width, and 28 mm height allow this diode to fit compactly in assemblies, while the absence of specific automotive standards and certifications suggests primary use in industrial or electronics manufacturing contexts.
Maximum continuous forward current of 435 A ensures high load capacity. 600 V peak repetitive reverse voltage for robust voltage tolerance. Common cathode configuration for versatile circuitry applications. Peak reverse recovery time of 260 ns for ultrafast diode switching.
Panel mount type with INT-A-PAK packaging for easy installation. Temperature range from -40°C to 150°C for durability in extreme conditions.
This diode is commonly used in industrial power supplies, rectifiers, motor drives, and electronic power conversion units. It provides reliable performance in laboratory, manufacturing, construction, and automotive electronic applications.
Discover the full range of Vishay semiconductors and power rectifiers at EnvMart for your industrial and electronics manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 435 amperes, ensuring robust current handling capability.
This diode has a peak reverse repetitive voltage rating of 600 volts, offering high voltage endurance.
The maximum forward voltage is 1.96 volts, which minimizes power losses during operation.
The peak reverse recovery time is 260 nanoseconds, allowing for ultrafast switching and recovery performance.
It supports panel mounting, ensuring secure and stable installation in assemblies.
The diode has dimensions of 94 mm in length, 35 mm in width, and 28 mm in height.
The operational temperature range is from -40°C to 150°C, ensuring durability under extreme environments.
This diode features a common cathode configuration, suitable for multiple rectification setups.
It is commonly used in industrial power supplies, rectifiers, motor drives, and electronic power conversion units.
The peak reverse current is rated at 50 milliamperes.
The package type is INT-A-PAK with a 3-pin count, supporting compact and reliable mounting.
