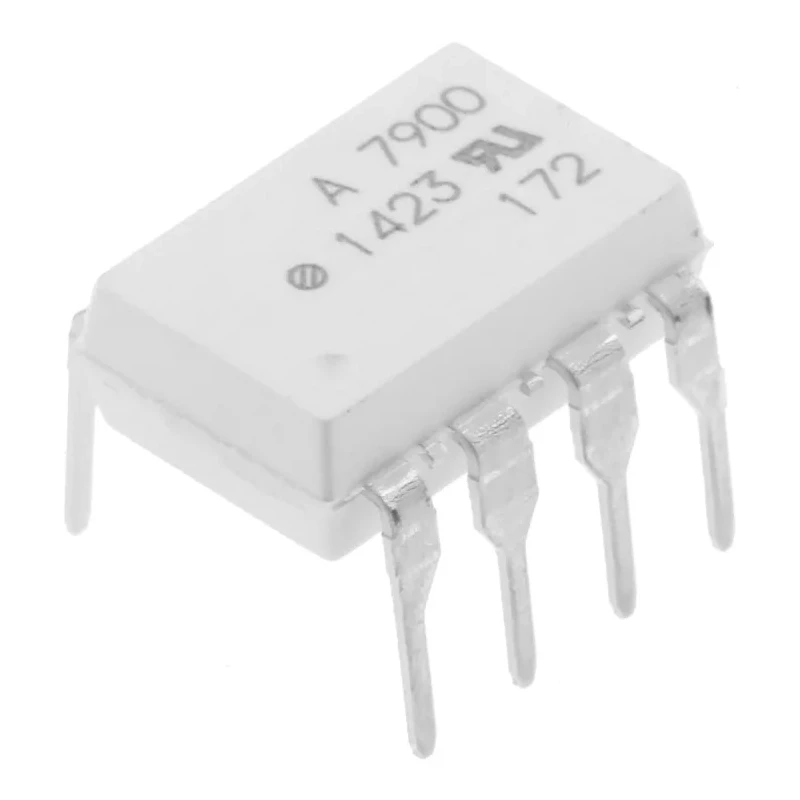

Broadcom Isolation Amplifier 8-Pin PDIP 3V to 5.5V Supply, Model ACPL-7900-000E

Broadcom ACPL-7900-000E Isolation Amplifier is an 8-pin, through-hole PDIP device operating with a supply voltage between 3V and 5.5V. It is engineered to provide high-precision isolation and signal conditioning in industrial and commercial applications where electrical isolation and noise immunity are critical.

This isolation amplifier integrates sigma-delta modulator technology, enabling it to accurately measure phase current, bus voltage, and other electrical signals in motor drives and power inverter circuits. It offers robust electrical isolation to protect sensitive control systems from high voltages and interference.

With a low input offset voltage of 2 mV and a high common mode rejection ratio (CMRR) of 76 dB, this device ensures clean and stable signal output even in electrically noisy industrial environments. The wide operating temperature range from -40°C to 105°C suits demanding applications.

The PDIP package with an 8-pin layout facilitates easy integration into through-hole PCBs, making it suitable for legacy or prototyping systems that require reliable isolation amplifiers. Its compact dimensions of 9.8 mm length and 3.56 mm height allow for use in space-constrained electronic assemblies.

Broadcom's ACPL-7900 series isolation amplifiers are well suited for industrial, HVAC, manufacturing, and power treatment systems requiring insulated and interference-free signal acquisition.

Operates over a wide supply voltage range from 3V to 5.5V. High common mode rejection ratio of 76 dB ensures noise immunity. Low input offset voltage of 2 mV for precise analog signal processing. Through-hole mount with an 8-pin PDIP package for compatibility and ease of use.

Wide operating temperature range from -40°C to 105°C for industrial reliability. Compact size with 9.8 mm length and 3.56 mm height for flexible PCB layouts. Suitable for high voltage isolation in motor drives, power inverters, and industrial controls.

Utilizes sigma-delta modulator technology for enhanced measurement accuracy.

This isolation amplifier supports applications requiring robust electrical isolation and high fidelity signal transmission in industrial electronics, laboratory instrumentation, automotive circuits, and embedded systems. Users benefit from Broadcom's trusted semiconductor technology and durable device construction.

Explore the range of Broadcom Isolation Amplifiers on EnvMart for reliable, high-performance semiconductors tailored to your industrial and electronic design needs.
