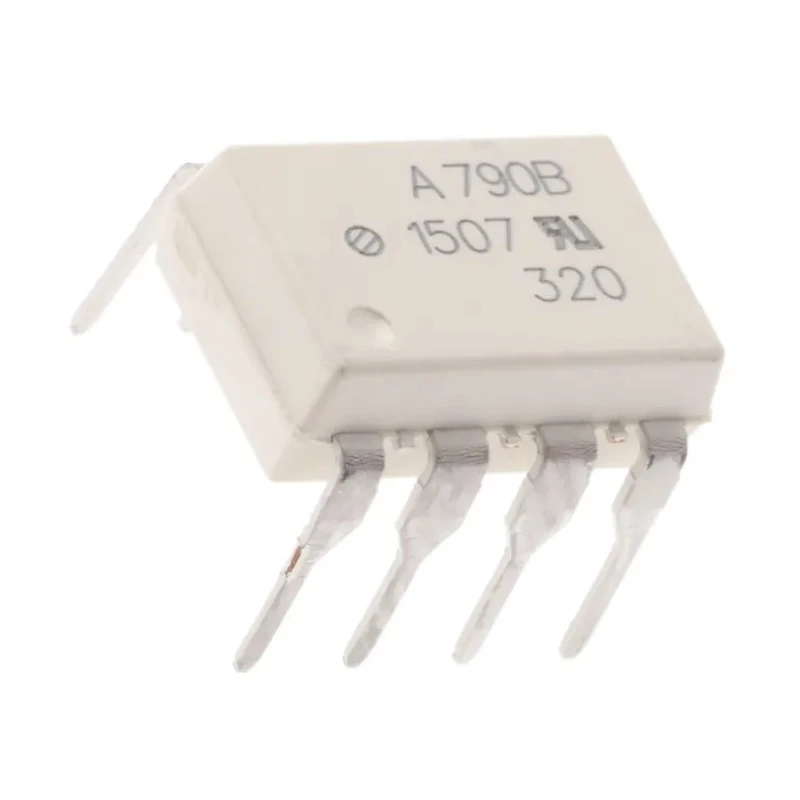

Broadcom Isolation Amplifier, 8-Pin PDIP, 3V to 5.5V Supply, 1 Channel, ACPL-790B-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.56mm |
| Length | 9.8mm |
| Model | ACPL-790B-000E |
| Mount Type | Through Hole |
| Series | ACPL-790B |
| Maximum Operating Temperature | 105°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Vos - Input Offset Voltage | 2 mV |
| CMRR - Common Mode Rejection Ratio | 76dB |
Key Features
- Features one isolated channel suitable for industrial signal isolation applications.
- Utilizes sigma-delta modulator technology for accurate current and voltage sensing.
- Provides high common mode rejection ratio (76 dB) ensuring signal fidelity.
- Operates reliably across a wide temperature range from -40°C to 105°C.
- Mounted through-hole with 8-pin PDIP package facilitating easy PCB integration.
- Compact dimensions with length of 9.8 mm and height of 3.56 mm.
- Designed as a robust alternative to Hall Effect amplifiers in power converters.
- Built-in safety insulation suitable for motor drives, power inverters, and isolation circuits.
Product Description
Broadcom ACPL-790B-000E Isolation Amplifier is a high-performance semiconductor device designed for industrial and commercial electrical isolation needs. Featuring a rugged 8-pin PDIP package and through-hole mounting, it supports a supply voltage range from 3V to 5.5V while ensuring reliable operation from -40°C to 105°C.
This amplifier offers a single channel with high common mode rejection ratio of 76 dB, utilizing sigma-delta modulator technology to provide precise measurement in current sensing, voltage signals, and other isolation applications. The compact device dimensions of 9.8 mm length and 3.56 mm height facilitate integration into motor drives, power inverters, and electrical isolation circuits.
Broadcom isolation amplifiers serve as an efficient alternative to Hall Effect isolation amplifiers, delivering safety insulation and stable signal isolation suitable for various industrial, laboratory, manufacturing, and HVAC applications. The device does not carry specific automotive standards but maintains excellent reliability in harsh environments.
Features one isolated channel suitable for industrial signal isolation applications. Utilizes sigma-delta modulator technology for accurate current and voltage sensing. Provides high common mode rejection ratio (76 dB) ensuring signal fidelity.
Operates reliably across a wide temperature range from -40°C to 105°C. Mounted through-hole with 8-pin PDIP package facilitating easy PCB integration. Compact dimensions with length of 9.8 mm and height of 3.56 mm. Designed as a robust alternative to Hall Effect amplifiers in power converters.
Built-in safety insulation suitable for motor drives, power inverters, and isolation circuits. Ideal for industrial, laboratory, and manufacturing environments requiring precise electrical isolation.
This product is part of a broad portfolio of isolation amplifiers from Broadcom, tailored to meet the demanding needs of modern electronics and power control systems. Explore similar Isolation Amplifiers and semiconductor amplifiers to find complementary parts at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This isolation amplifier operates within a supply voltage range of 3V to 5.5V.
It features a high common mode rejection ratio of 76 dB, ensuring effective signal fidelity.
The device has compact dimensions with a length of 9.8 mm and a height of 3.56 mm.
It operates reliably across a wide temperature range from -40°C to 105°C.
This model features one isolated channel suitable for various applications.
It is designed for through-hole mounting, making it easy to integrate into PCBs.
It utilizes sigma-delta modulator technology for accurate current and voltage sensing.
The input offset voltage is specified at 2 mV.
It is suitable for industrial signal isolation applications, including motor drives and power inverters.
This isolation amplifier has a pin count of 8.
The country of origin for this product is India.
It is part of the ACPL-790B series of isolation amplifiers from Broadcom.
