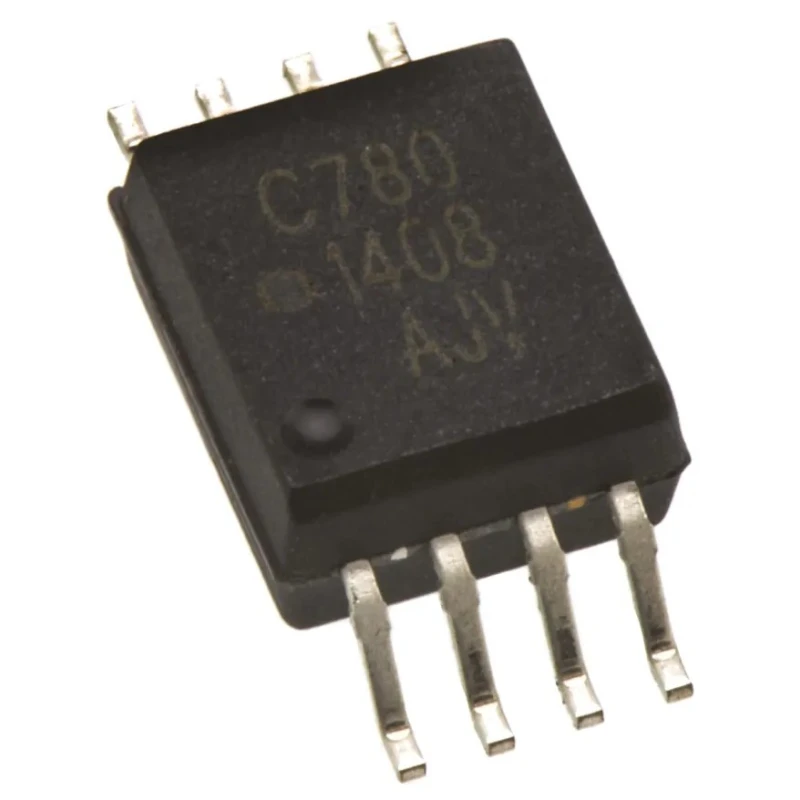

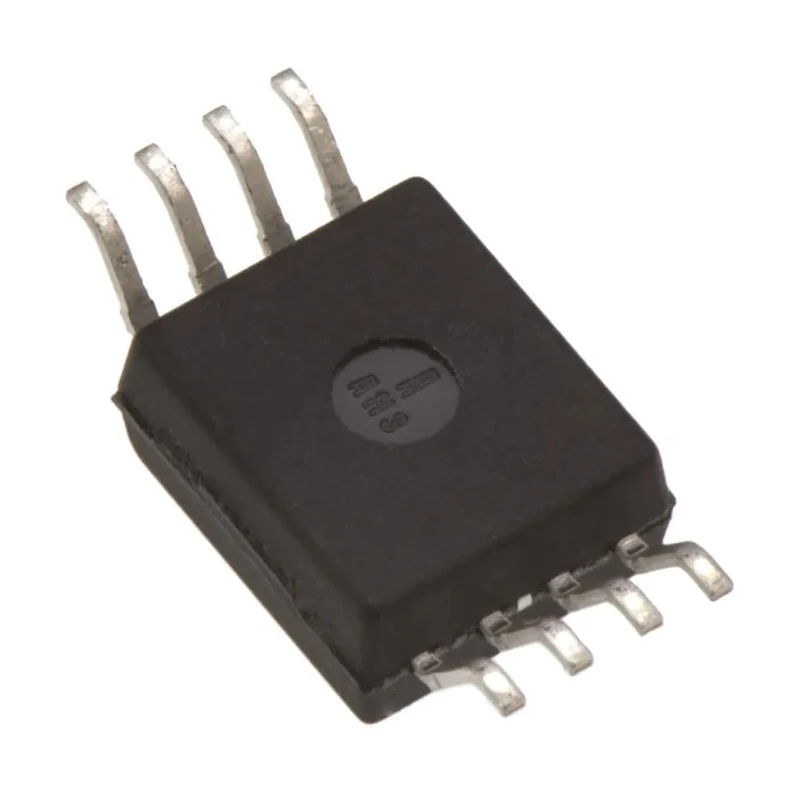

Broadcom Isolation Amplifier 8-Pin SOIC 5V to 5.5V ACPL-C780-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C780-000E |
| Mount Type | Surface |
| Series | ACPL-C780 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Vos - Input Offset Voltage | 2 mV |
| Isolation Type | Miniature Isolation Amplifiers |
Key Features
- Operates within a supply voltage range of 5V to 5.5V.
- Features a miniature isolation amplifier design for compact installations.
- Provides a single channel for precise signal isolation.
- Surface mount type simplifying PCB assembly and integration.
- Contains 8 pins in an SOIC package with length 5.85mm and height 3.18mm.
- Input offset voltage specified at 2 mV ensuring signal accuracy.
- Functions within temperature ranges from -40°C to 85°C for harsh environments.
- Designed without automotive standards, targeting general industrial use.
Product Description
Broadcom ACPL-C780-000E isolation amplifier is an 8-pin miniature isolation amplifier housed in an SOIC package. Operating on a 5V to 5.5V supply voltage, it provides reliable signal isolation ideal for industrial electronic circuits requiring high common mode rejection.
This amplifier incorporates sigma-delta modulator technology enabling precise current and voltage measurements in motor drives, power inverters, and general isolation circuits. It offers an input offset voltage of 2 mV and robust performance within a temperature range of -40°C to 85°C, making it suitable for demanding environments.
The device is surface mount type with a compact footprint measuring 5.85mm in length and 3.18mm in height, facilitating high-density PCB designs. Its miniature isolation amplifier classification supports effective insulation of high voltages and noise reduction in sensitive signal applications.
While not certified for automotive applications, this series excels in industrial, laboratory, and manufacturing settings where electrical isolation improves system safety and measurement accuracy. Ideal for use in power converters and voltage sensing, the ACPL-C780 series is a versatile solution for modern industrial electronics.
Operates from 5V to 5.5V supply voltage. Single-channel miniature isolation amplifier. 8-pin SOIC surface mount package. Input offset voltage at 2 mV for precision. Operating temperature range from -40°C to 85°C. Compact dimensions of 5.85mm length and 3.18mm height.
High common mode rejection suitable for industrial use. No automotive standard certification. Discover comprehensive industrial and semiconductor components including Isolation Amplifiers at EnvMart for enhanced electronic design solutions.
