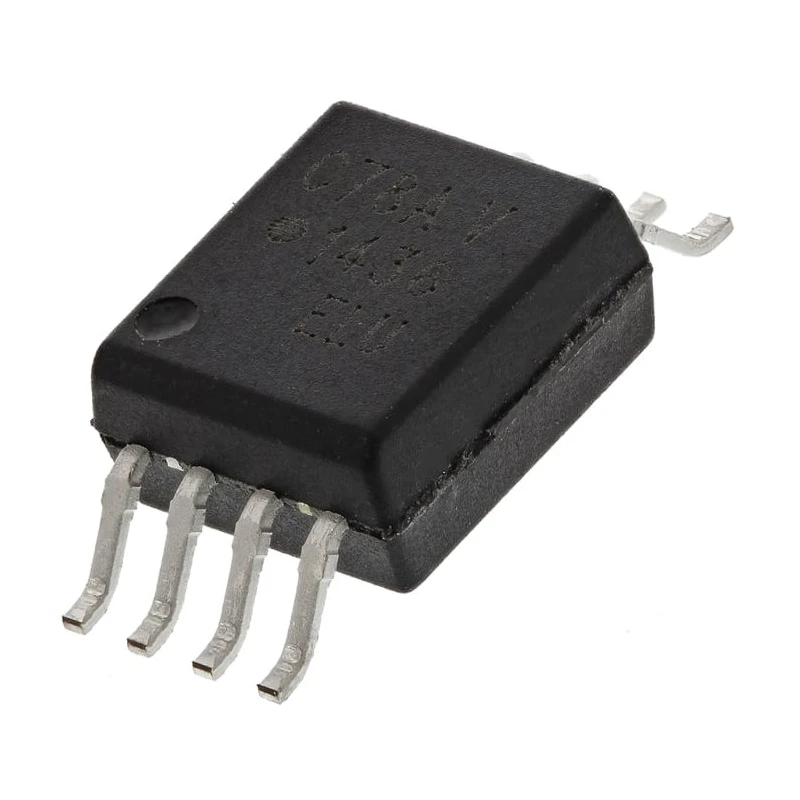

Broadcom 2-Channel Isolation Amplifier 8-Pin SSOP 5.5V ACPL-C78A-060E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C78A-060E |
| Mount Type | Surface |
| Series | ACPL-C78A |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-0203PBrand: BroadcomManufacturers Part No.: ACPL-C78A-060E |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 2 mV |
| Isolation Type | Miniature Isolation Amplifiers |
Key Features
- Equipped with miniature isolation amplifiers ideal for industrial environments.
- Offers high common mode rejection for precise phase current and voltage measurements.
- Features 2 channels with low input offset voltage of 2 mV.
- Supports surface mount technology with compact 5.85 mm length and 3.18 mm height dimensions.
- Operates across temperature range of -40°C to 85°C to withstand harsh conditions.
- Suitable alternative to Hall Effect isolation amplifiers in power converters and motor drives.
- Integrates sigma-delta modulator technology for accurate voltage sensing.
- No automotive standards compliance but designed for industrial and power inverter applications.
Product Description
Broadcom ACPL-C78A-060E 2-Channel Isolation Amplifier, housed in an 8-pin SSOP package, operates with a supply voltage between 4.5V and 5.5V. This isolation amplifier is engineered to provide miniature and precise galvanic isolation suitable for high-voltage industrial environments. It isolates unwanted signals using miniature isolation amplifiers based on sigma-delta modulator technology, enabling accurate measurements of phase current and bus voltage in motor drives, power inverters, and general voltage sensing circuits.
The device features two channels with a low input offset voltage of 2 mV, supporting high common mode rejection ratio for noise immunity. It is designed for surface mount applications with a compact form factor measuring 5.85 mm in length and 3.18 mm in height, making it ideal for dense PCB layouts.
Operating temperature ranges between -40°C and 85°C ensure robust performance under harsh industrial conditions. While it does not comply with specific automotive standards, the amplifier is well suited for industrial power converter and voltage isolation applications, providing built-in safety insulation.
This isolation amplifier is a recommended alternative to Hall Effect amplifiers for current and voltage sensing in power conversion systems. It supports integration into various industrial and commercial electronic systems requiring precise electrical isolation and noise rejection.
Miniature isolation amplifier technology provides precise galvanic isolation. Two channel configuration supports multiple sensor inputs. Compact SSOP package allows space-saving PCB design. Wide operating temperature range suitable for industrial environments.
Low input offset voltage enhances measurement accuracy. High common mode rejection improves signal integrity in noisy circuits. Ideal for use in motor drives, power inverters, and voltage sensing applications. Explore the broad range of Isolation Amplifiers and electronic components in the EnvMart catalog to find compatible solutions for industrial and HVAC applications.
