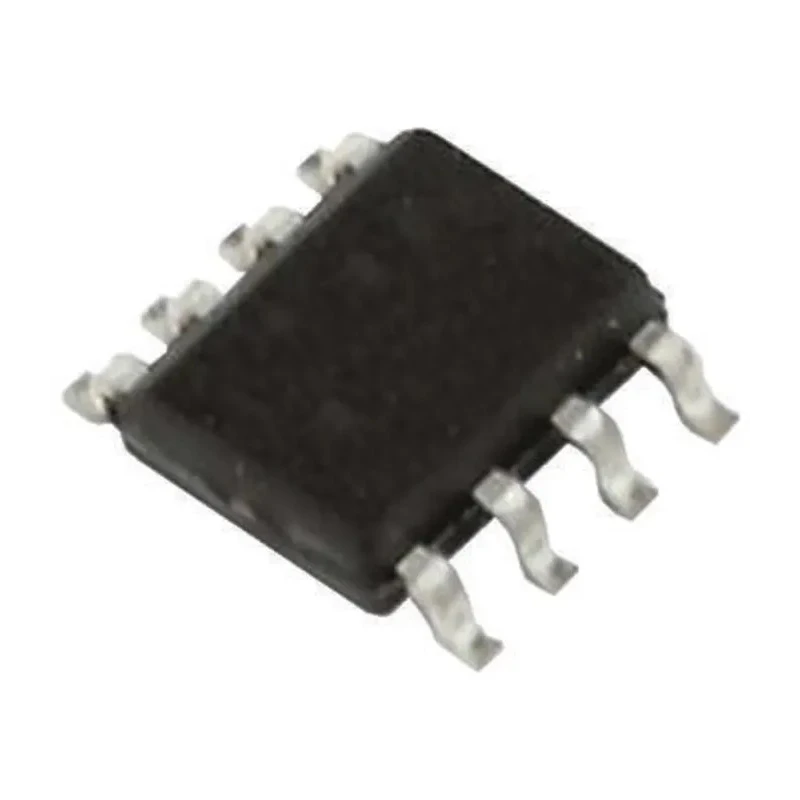

Broadcom Miniature Isolation Amplifier 8-Pin 5.5V SSOP ACPL-C784-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Miniature Isolation Amplifier 8-Pin 5.5V SSOP ACPL-C784-000E

Name: Broadcom Miniature Isolation Amplifier 8-Pin 5.5V SSOP ACPL-C784-000E
Brand: Broadcom
SKU: 213202
Price: 6.27 USD
Availability: InStock



Category Isolation Amplifier Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	3.18mm
Length	5.85mm
Model	ACPL-C784-000E
Mount Type	Surface
Series	ACPL-C784
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	IEC/EN/DIN EN 60747-5-5, UL 1577, CSA
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	5V
Vos - Input Offset Voltage	0.3 mV
CMRR - Common Mode Rejection Ratio	76dB
Isolation Type	Miniature Isolation Amplifiers

Key Features

Operates with a minimum supply voltage of 5V and maximum of 5.5V.
Features 1 isolation channel with miniature isolation amplifier technology.
High common mode rejection ratio (CMRR) of 76dB for precise signal isolation.
Mount type surface mount with SSOP package and 8 pins for compact design.
Operating temperature range from -40°C to 85°C suitable for harsh environments.
Isolation voltage rated at 5000 Vrms ensuring robust insulation.
Compact dimensions with length of 5.85mm and height of 3.18mm for space-saving PCB integration.
Complies with IEC/EN/DIN EN 60747-5-5, UL 1577, CSA standards for safety and performance.

Product Description

Broadcom ACPL-C784-000E Miniature Isolation Amplifier is a high-performance isolation amplifier housed in a compact 8-pin SSOP package designed for industrial electronic signal isolation applications. Operating at a supply voltage between 5V and 5.5V, it ensures precise voltage and current measurements by providing galvanic isolation between input and output signals.

This device integrates sigma-delta modulator technology allowing high accuracy with an input offset voltage of 0.3 mV and an excellent common mode rejection ratio (CMRR) of 76dB. The miniature isolation design supports single-channel isolation capable of withstanding an isolation voltage of 5000 Vrms, meeting critical safety insulation requirements.

Its surface mount SSOP package with 8 pins supports efficient PCB mounting, while the operating temperature range from -40°C to 85°C and compact dimensions (length 5.85 mm, height 3.18 mm) allow it to perform reliably in harsh industrial environments.

The amplifier complies with rigorous IEC/EN/DIN EN 60747-5-5, UL 1577, and CSA standards ensuring its suitability for demanding applications including motor drives, power inverters, voltage sensing, and other power electronic circuits where isolation and signal integrity are critical.

Operates with a minimum supply voltage of 5V and maximum of 5.5V. Isolates signals effectively with high CMRR of 76dB. Features miniature isolation amplifier technology in an 8-pin SSOP package. Designed for industrial temperature range and surface mount applications.

Certified to international safety standards IEC/EN/DIN EN 60747-5-5, UL 1577, CSA. Compact size enables efficient PCB layout and space saving. Supports precise measurement applications in industrial motor drives and power electronics.

This miniature isolation amplifier is ideal for industrial, laboratory, manufacturing, and power electronics sectors where galvanic isolation of signals is required. Its robust performance and safety certifications make it a reliable choice for engineers designing isolation and measurement circuits.

Browse more Isolation Amplifiers from Broadcom and related semiconductor components in EnvMart's Electronics & Electricals category.
