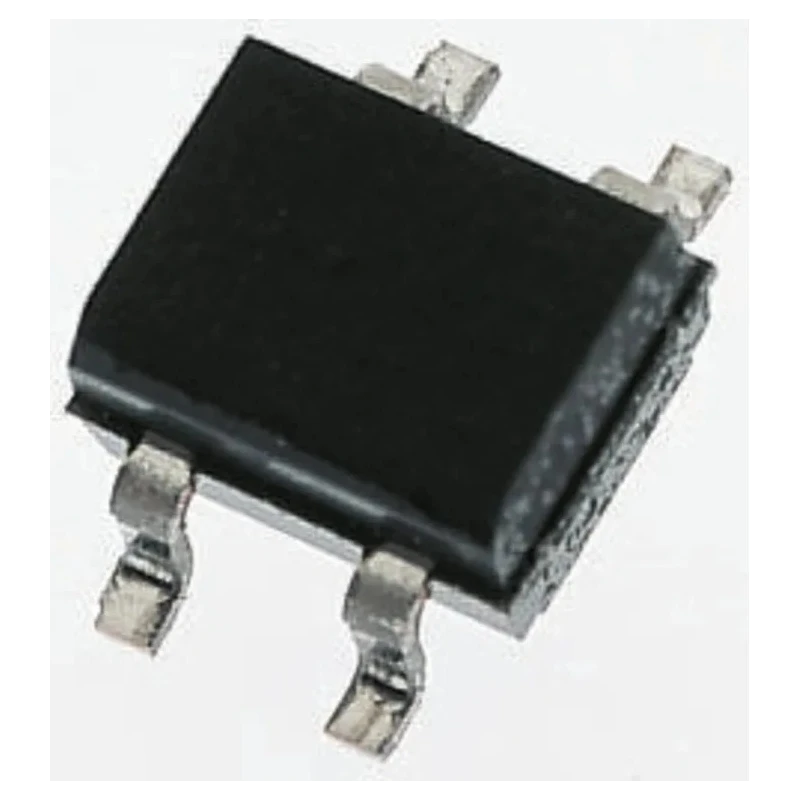

Vishay Bridge Rectifier Surface Mount DFS Package 800V 50A 4-Pin Single DF08S-E3/77
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 3.3mm |
| Length | 8.51mm |
| Model | DF08S-E3/77 |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DF |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-2885 Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: DF08S-E3/77 Distrelec Article No.: 30152185 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Supports peak reverse repetitive voltage of 800 V.
- Forward current rating of 1 A suitable for PCB surface mounting.
- Compact DFS package with dimensions 8.51 mm length, 6.5 mm width, and 3.3 mm height.
- Operable temperature range from -55°C to 150°C ensures robust performance.
- Features low peak forward voltage of 1.1 V and minimal reverse current leakage of 5 μA.
- Designed for automated PCB placement and reflow soldering.
- Single-phase configuration with 4-pin setup for efficient power conversion.
- Ideal for industrial power supply and electronic circuit applications.
Product Description
Vishay DF08S-E3/77 is a high-performance bridge rectifier designed for efficient full-wave rectification in single-phase electrical circuits. Packaged in a surface mount DFS package, this component features a peak reverse repetitive voltage of 800 V and a forward surge current capacity of 50 A, making it suitable for demanding power electronic applications.
The device operates reliably across a wide temperature range from -55°C to a maximum of 150°C, providing durability under harsh environmental conditions. Its compact dimensions (8.51 mm length, 6.5 mm width, and 3.3 mm height) allow for space-saving integration on printed circuit boards.
This bridge rectifier utilizes a 4-pin configuration supporting single-phase applications, converting alternating current (AC) inputs to a direct current (DC) output with high efficiency. The device exhibits a low forward voltage drop of 1.1 V and a minimal peak reverse current of 5 μA, contributing to improved power efficiency and reduced heat generation.
It is designed for automated PCB placement and compatibility with reflow soldering processes, enhancing manufacturing efficiency for electronic assemblies. Common industrial uses include power supplies, motor controllers, and other electronic devices requiring reliable AC to DC conversion.
Supports peak reverse repetitive voltage of 800 V. Forward current rating of 1 A suitable for PCB surface mounting. Compact DFS package dimensions of 8.51 x 6.5 x 3.3 mm. Wide operating temperature range from -55°C to 150°C.
Low peak forward voltage of 1.1 V and peak reverse current of 5 μA. Single-phase 4-pin configuration for efficient rectification. Optimized for automated placement and reflow soldering. Ideal for industrial power supplies and electronic circuits.
Vishay is recognized for delivering semiconductor products with high reliability and excellent electrical characteristics, meeting industry standards. This bridge rectifier is a vital component for engineers and manufacturers focusing on compact and efficient power conversion solutions.
Explore more Vishay semiconductor products and related Bridge Rectifiers to enhance your electronic assemblies and designs at EnvMart.
