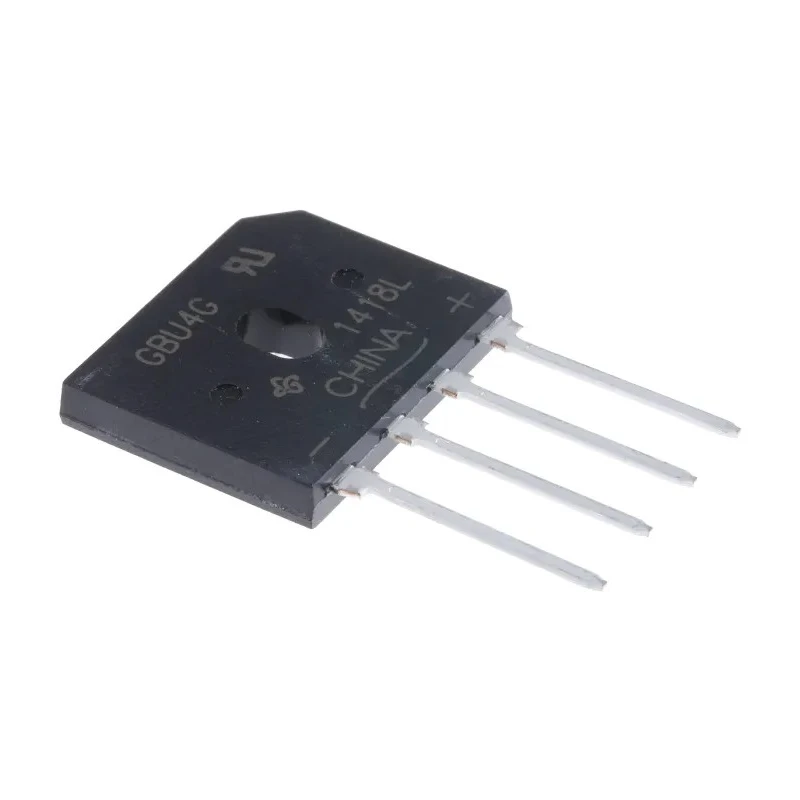

Vishay Bridge Rectifier 400 V 150 A 4-Pin Single GBU4G-E3/51
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU4G-E3/51 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-2709Brand: VishayManufacturers Part No.: GBU4G-E3/51 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Designed for full-wave rectification suitable for electronic power conversion.
- Features a 4-pin GBU package with through-hole mount type for PCB integration.
- Offers high surge current capability of 150 A and forward current of 4 A.
- Operates reliably between -55°C and 150°C maximum temperature.
- Constructed with glass passivated junction for durability and long-term performance.
- Compact dimensions of 22.3mm length, 18.8mm height, and 3.56mm width.
- Suitable for industrial and electronic equipment requiring robust semiconductor diodes.
- High dielectric strength of 1500 Vrms ensures safe operation in harsh conditions.
Product Description
Vishay GBU4G-E3/51 Bridge Rectifier is a powerful single-phase rectifier designed for converting AC input into DC output, providing full-wave rectification in various electronic circuits. It features a 4-pin GBU package with through-hole mounting, making it suitable for printed circuit boards (PCBs) in industrial and electronic power applications.
This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 400 V and can handle a maximum surge current (Ifsm) of 150 A, ensuring capability to withstand abrupt high currents. The device operates within a temperature range of -55°C to 150°C, suitable for demanding environmental conditions.
Constructed with a glass passivated junction, the rectifier delivers high reliability and long lifespan. Its dimensions are compact with 22.3 mm length, 18.8 mm height, and 3.56 mm width, enabling space-efficient electronic designs. The device also features soldering pins for robust PCB mounting and a high case dielectric strength of 1500 Vrms providing electrical insulation and safety.
This rectifier finds applications in industrial automation, power supplies, electronic equipment, and other areas where dependable DC power conversion from AC sources is essential. It is especially suited for full-wave rectifier bridge circuits in power management and control systems.
Designed for full-wave rectification suitable for electronic power conversion. Features a 4-pin GBU package with through-hole mount type for PCB integration. Offers high surge current capability of 150 A and forward current of 4 A.
Operates reliably between -55°C and 150°C maximum temperature. Constructed with glass passivated junction for durability and long-term performance. Compact dimensions of 22.3mm length, 18.8mm height, and 3.56mm width. Suitable for industrial and electronic equipment requiring robust semiconductor diodes.
High dielectric strength of 1500 Vrms ensures safe operation in harsh conditions. Browse the Electronics & Electricals category at EnvMart for additional high-quality semiconductor components and Bridge Rectifiers from Vishay and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay GBU4G-E3/51 bridge rectifier can handle a maximum surge current of 150 A.
This model has a peak reverse repetitive voltage (Vrrm) rating of 400 V.
The dimensions of this bridge rectifier are 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.
It operates reliably within a temperature range of -55°C to 150°C.
The forward current rating for the GBU4G-E3/51 is 4 A.
This model features a through-hole mount type for PCB integration.
The bridge rectifier has a high dielectric strength of 1500 Vrms, ensuring safe operation in harsh conditions.
The GBU4G-E3/51 has a total of 4 pins.
It is constructed with a glass passivated junction, enhancing its reliability and lifespan.
This bridge rectifier is suitable for applications in industrial automation, power supplies, and electronic equipment requiring DC power conversion from AC sources.
The GBU4G-E3/51 belongs to the GBU4 series of bridge rectifiers.
The peak forward voltage (Vf) for the GBU4G-E3/51 is 1 V.
