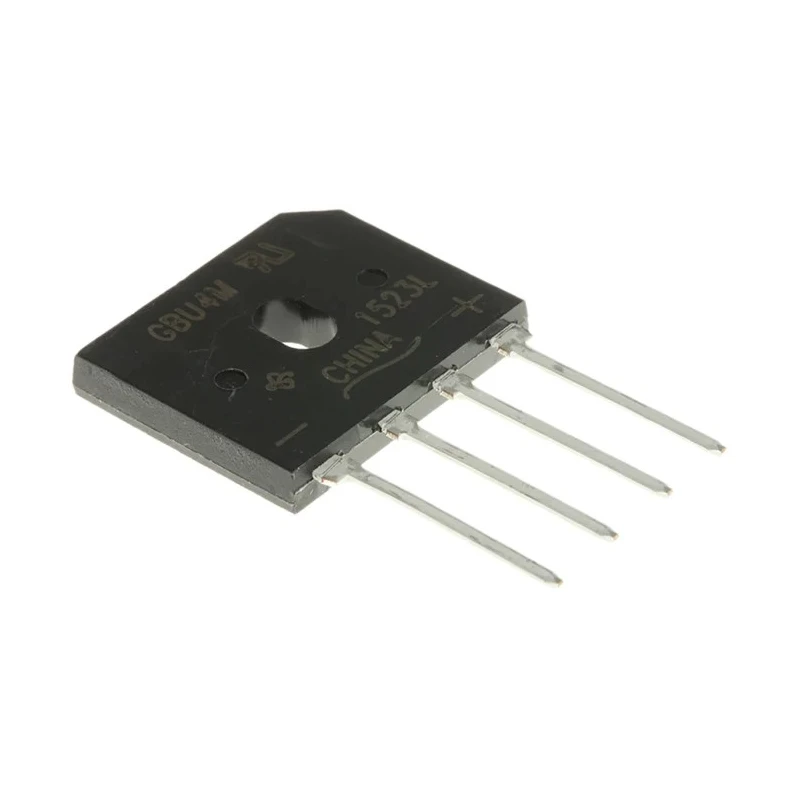

Vishay Bridge Rectifier 1000 V 150 A 4-Pin Single GBU4M-E3/51
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU4M-E3/51 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5431P Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: GBU4M-E3/51 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Peak reverse repetitive voltage rating of 1000 V ensures high voltage tolerance.
- Maximum forward current of 4 A suitable for medium power circuits.
- Peak surge current capability of 150 A for handling transient surges.
- High case dielectric strength of 1500 Vrms for safety and insulation.
- Operating temperature range from -55°C to 150°C for versatile applications.
- Through-hole mounting with GBU package type and 4 pins for secure PCB installation.
- Single phase configuration optimized for SIL PCB mounting.
- Low peak forward voltage drop of 1 V to enhance efficiency.
Product Description
Vishay GBU4M-E3/51 is a bridge rectifier designed for converting AC input to DC output in full-wave rectification applications. Rated with a peak reverse repetitive voltage of 1000 V and a forward current of 4 A, it ensures reliable performance in industrial, commercial, and laboratory electronic applications requiring power conversion and regulation.
The rectifier features a high surge current capacity of 150 A, enabling it to withstand transient overloads. Manufactured with glass passivated junction technology and enclosed in a compact GBU package, it provides high reliability and excellent thermal performance.
Designed for through-hole mounting on printed circuit boards, this single-phase bridge rectifier offers a low forward voltage drop of 1 V and peak reverse current limited to 5 μA, improving energy efficiency and minimizing power loss.
It operates reliably within a wide temperature range from -55°C to 150°C, making it suitable for harsh environments and automotive applications. Its dimensional footprint is 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, allowing compact PCB designs.
With a high dielectric strength of 1500 Vrms, it provides excellent electrical isolation and safety. This component is ideal for use in electronic circuits requiring robust and stable rectification such as power supplies, battery chargers, and motor drives.
Peak reverse repetitive voltage rating of 1000 V. Forward current rating of 4 A with surge capacity of 150 A. Through-hole GBU package with 4 pins for durable mounting. Operating range from -55°C to 150°C ensures reliability in various conditions.
Compact dimensions suitable for PCB integration. Low forward voltage drop for improved efficiency. High dielectric strength for electrical safety. Glass passivated junction technology for long operational life. Single phase configuration optimized for industrial electronics.
Explore more Vishay semiconductor Bridge Rectifiers at EnvMart for high-quality electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a maximum forward current rating of 4 A, suitable for medium power circuits.
The peak surge current capability is 150 A, allowing it to handle transient surges effectively.
It measures 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, allowing for compact PCB designs.
This model is designed for through-hole mounting, featuring a GBU package type with 4 pins for secure PCB installation.
It features a single-phase configuration, optimized for SIL PCB mounting.
It has a high case dielectric strength of 1500 Vrms, ensuring safety and insulation in electrical applications.
This model is manufactured with glass passivated junction technology, providing high reliability and excellent thermal performance.
The country of origin for this product is India.
