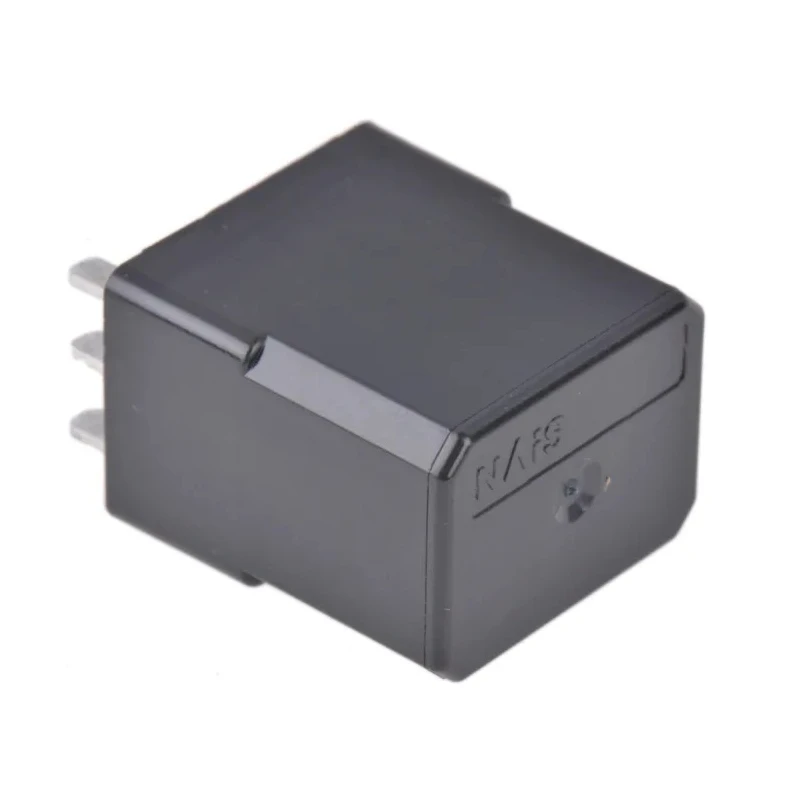

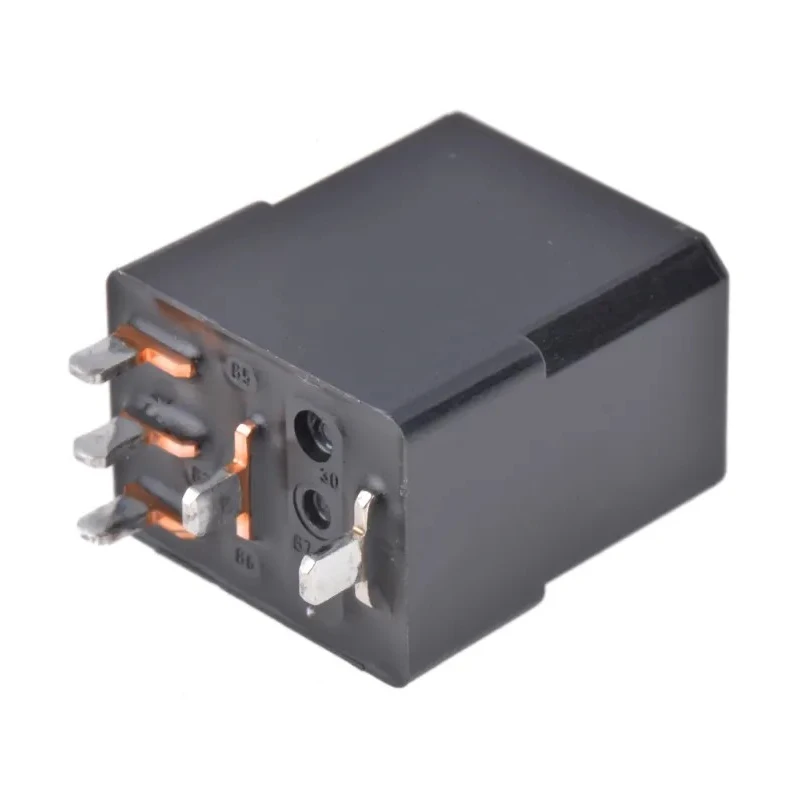

Panasonic PCB Automotive Relay 24V DC Coil Voltage 1.8W Coil Power 28A Switching Current SPDT CM1-P-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 20mm |
| Model | CM1-P-24V |
| Depth | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Small size | L20 x W15 x H22 mm |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Number of Poles | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5998Brand: PanasonicManufacturers Part No.: CM1-P-24V |
| Coil Resistance | 320Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Micro-ISO plug-in terminals ensure easy PCB mounting and connection.
- Compact size of 20mm length, 15mm depth, and 22mm height suitable for automotive applications.
- Durable silver alloy contact material ensures reliable switching performance.
- Designed for operating temperatures ranging from -40°C to 85°C.
- Offers 500Vrms isolation between coil and contact for safety.
- Contains single-pole, double-throw (SPDT) contact configuration suitable for automotive circuits.
- Typical uses include fan motors, heaters, air compressors, EPS, ABS, head lamps, and blower fans.
- Manufactured in Japan ensuring high-quality standards and reliability.
Product Description
Panasonic CM1-P-24V PCB Automotive Relay is a compact, high-performance Automotive Relay designed for various industrial and automotive electrical systems. It features a 24V DC coil voltage with a coil power consumption of 1.8W and supports a switching current of up to 28A, making it suitable for controlling high-load automotive circuits.
This relay incorporates a SPDT (Single Pole Double Throw) contact configuration which allows switching between two circuits. It has micro-ISO type plug-in terminals for easy PCB mounting, enhancing assembly efficiency and reducing wiring complexity.
With a compact form factor measuring 20mm in length, 15mm in depth, and 22mm in height, this device fits well in tight automotive spaces. The relay is designed to operate reliably in harsh environments with a temperature range from -40°C to 85°C and features silver alloy contacts ensuring durability and excellent conductivity.
The isolation between coil and contact is rated at 500Vrms, ensuring safety and protection against voltage spikes in automotive and industrial environments. Typical applications include operation in fan motors, heaters, head lamps, air compressors, EPS (Electric Power Steering), ABS (Anti-lock Braking System), blower fans, and defoggers.
Micro-ISO plug-in terminals for secure PCB mounting. Small physical dimensions suitable for confined spaces. High-capacity 28A load switching capability. Silver alloy contact material for reliable operation. Wide operating temperature range for automotive reliability.
500Vrms isolation voltage between coil and contacts. Single pole double throw contact configuration. Manufactured in Japan ensuring quality and durability.
This product is ideal for use in automotive electronics, industrial electrical systems, and commercial applications where reliable relay switching is required. Panasonic's engineering ensures the CM1-P-24V meets rigorous quality and performance standards.
Explore more high-quality relays and automotive electronics components in the Electronics & Electricals category at EnvMart.
