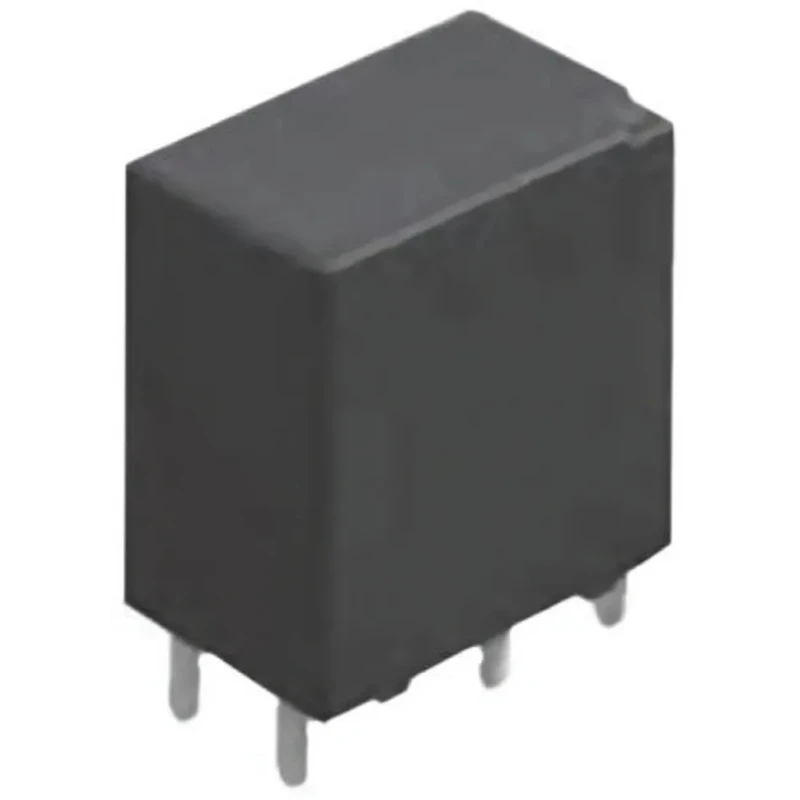

Panasonic PCB Automotive Relay, 12V DC Coil Voltage, 30A Switching Current, SPST ACNH3112

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PCB Automotive Relay, 12V DC Coil Voltage, 30A Switching Current, SPST ACNH3112

Name: Panasonic PCB Automotive Relay, 12V DC Coil Voltage, 30A Switching Current, SPST ACNH3112
Brand: Panasonic
SKU: 352371
Price: 8.25 USD
Availability: InStock



Category Automotive Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	18.3mm
Length	17mm
Model	ACNH3112
Depth	10.6mm
Mount Type	PCB
Contact Material	Silver
Series	ACNH
Maximum Operating Temperature	110°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Number of Poles	1
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	699-4819Brand: PanasonicManufacturers Part No.: ACNH3112
Coil Resistance	225Ω
Coil Power	640mW
Isolation Coil To Contact	500V

Key Features

This automotive relay features a 12V DC coil voltage suitable for various vehicle electrical systems.
It has a high nominal switching capacity of 30A at 14V DC resistive load.
The relay includes a single-pole single-throw (SPST) contact configuration.
Equipped with PCB terminals for easy printed circuit board mounting.
Its sealed construction provides durability and reliability in automotive environments.
Designed to operate within temperatures from -40°C to 110°C, suitable for automotive conditions.
Compact dimensions of 17mm length, 18.3mm height, and 10.6mm depth save PCB space.
Isolation voltage of 500V between coil and contacts ensures safety and performance.

Product Description

Panasonic ACNH3112 PCB Automotive Relay is a high-quality automotive relay designed for demanding vehicle electrical applications. This PCB mount relay operates with a 12V DC coil voltage and provides a nominal switching current of 30A, making it suitable for controlling heavy electrical loads in automotive systems.

The relay features a single-pole single-throw (SPST) contact configuration and comes with PCB terminals to allow easy integration onto printed circuit boards. Its sealed and compact design ensures durability against mechanical and environmental stresses experienced in automotive environments.

The relay is engineered to function effectively across a broad temperature range from -40°C to 110°C, ensuring reliability in various climatic conditions. With compact dimensions of 17mm length, 18.3mm height, and 10.6mm depth, it is a space-saving solution suitable for modern automotive systems.

An isolation voltage of 500V between the coil and contacts provides superior electrical isolation enhancing operational safety. The silver contact material ensures excellent conductivity, reducing power loss and providing long service life.

This relay is ideal for applications such as head lamps, fog lamps, fan motors, defoggers, and seat heaters, where reliable switching of high current loads is required. Its low coil power consumption of 640mW and a coil resistance of 225Ω contribute to energy efficiency.

This automotive PCB relay features a 12V DC coil voltage for vehicle electrical circuits. Nominal switching capacity of 30A at 14V DC resistive load for heavy-duty switching. Single-pole single-throw (SPST) contact configuration with silver material for durability.

Sealed construction and PCB mounting terminals enhance reliability and ease of integration. Operates reliably between -40°C and 110°C temperature ranges. Compact dimensions of 17mm × 18.3mm × 10.6mm for space-saving on PCBs.

500V isolation between coil and contact ensures electrical safety. Ideal for automotive applications such as lighting, fans, defoggers, and heating systems. Explore our extensive range of Automotive Relays and electrical components at EnvMart for all your industrial and automotive needs.
