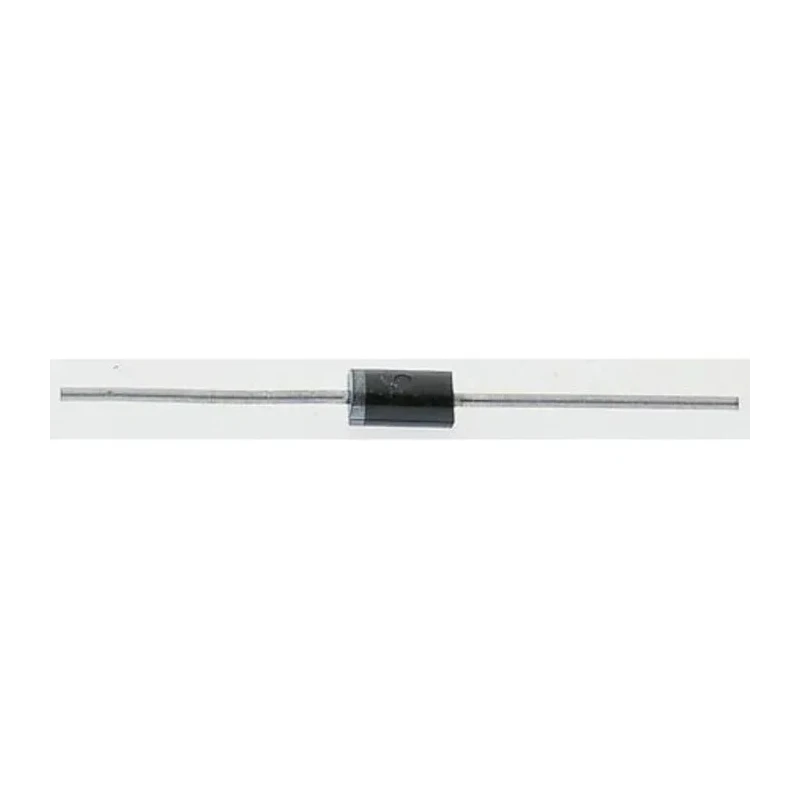

Taiwan Semiconductor 400 V 3 A Switching Diode Through Hole DO-201AD HER305G R0

The Taiwan Semiconductor HER305G R0 is a high-quality switching diode designed for electronic and electrical systems requiring reliable switching with moderate current and voltage ratings. It features a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 400 V, making it suitable for a variety of power electronics applications.

The diode is housed in a DO-201AD package designed for through-hole mounting, facilitating easy integration into printed circuit boards. Its fast peak reverse recovery time of 50 ns enables high-speed switching applications, reducing switching losses and enhancing efficiency in circuits.

The forward voltage drop is rated at a maximum of 1.3 V, ensuring low power dissipation during conduction. The diode maintains performance across a wide temperature range from -65°C to 150°C, supporting operation in demanding environments including industrial and automotive electronics.

Compliance with automotive standard AEC-Q101 guarantees that this diode meets rigorous reliability and quality standards required in automotive and related industrial sectors.

With compact dimensions - 9.5 mm length and 5.6 mm diameter and width - the HER305G R0 diode is suitable for space-constrained designs while providing dependable switching characteristics. The single diode configuration with two pins makes it straightforward for standard rectification and switching tasks.

Maximum continuous forward current of 3 A for steady-state operation. Peak reverse repetitive voltage rated at 400 V for effective blocking capability. Through-hole DO-201AD package facilitates robust mounting on PCBs. Forward voltage drop of 1.3 V reduces conduction losses.

Fast reverse recovery time of 50 nanoseconds enhances switching speed. Operating temperature range from -65°C to 150°C supports harsh conditions. Automotive standard AEC-Q101 certified for high reliability. Compact package dimension with length 9.5 mm and diameter 5.6 mm.

Single diode, 2-pin configuration designed for switching applications.

This diode is ideal for use in industrial electronics, automotive systems, power supplies, and general-purpose rectification tasks, offering efficiency and reliability in critical applications. For further related semiconductor components, explore additional products in EnvMart's Schottky Diodes & Rectifiers category.
