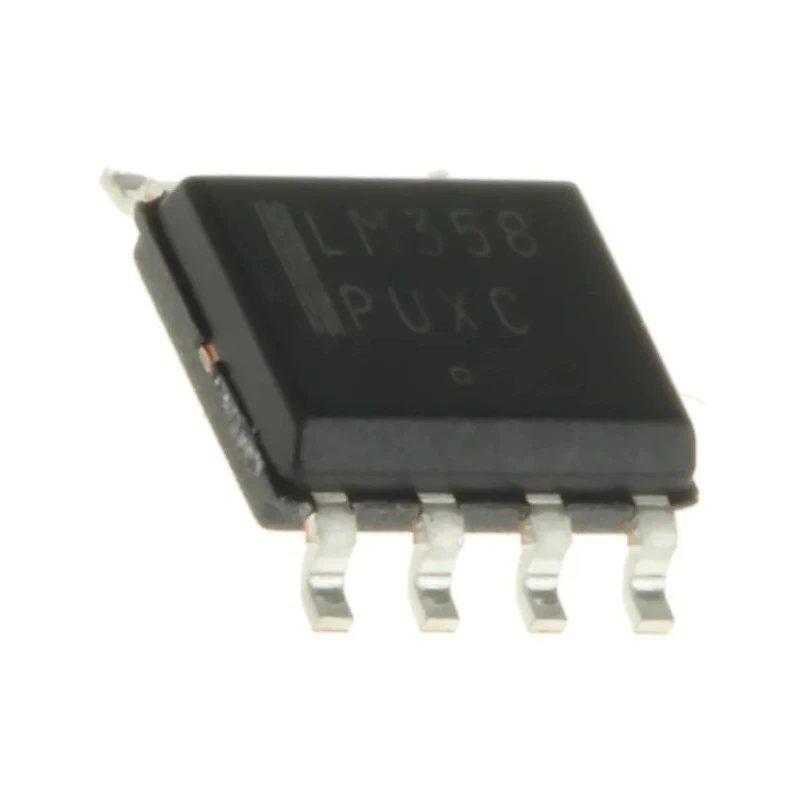

onsemi Operational Amplifier Dual Channel Surface Mount 8-Pin SOIC 5V-32V LM358DR2G

onsemi LM358DR2G is a dual operational amplifier designed for versatile applications in industrial and electronic component integration. Featuring a robust 8-pin SOIC surface mount package, it supports supply voltages ranging from 5V up to 32V, making it suitable for both single and split supply operation within this range.

This amplifier includes a true differential input stage with an input bias current of approximately -250 nA and an input offset voltage of 7 mV. Its common mode input voltage extends to the negative supply, eliminating the need for external biasing components in applications.

The device is internally compensated ensuring stable operation, and it is capable of delivering output currents up to 40 mA. With operating temperatures ranging from 0°C to 70°C, it fits standard industrial requirements. The set complies with AEC-Q100 automotive standard ensuring quality and reliability for automotive applications.

Additionally, the LM358DR2G includes electrostatic discharge clamps on all input pins for enhanced protection, making it apt for sensitive environments. Its compact physical dimensions of 5mm length, 4mm width, and 1.5mm height allow for efficient PCB space usage.

The dual operational amplifiers are primarily used in integrators, comparators, voltage clamps, current regulators, and linear voltage regulators, as well as general-purpose amplification tasks in electronics manufacturing, industrial controls, and HVAC systems.

Dual channel operational amplifier designed for single supply voltage operation from 3V to 32V. Surface mount 8-pin SOIC package for compact PCB integration. Input bias current is low at approximately -250 nA enabling precision applications.

Operating temperature range from 0°C to 70°C suitable for standard industrial environments. Includes ESD clamps on all input pins for enhanced electrostatic discharge protection. True differential input stage provides high input common-mode voltage range.

Output current capability of 40 mA suitable for driving loads directly. Internally compensated for stable operation over full operating range. Automotive standard compliant with AEC-Q100 qualification. Compact body dimensions: length 5mm, width 4mm, height 1.5mm.
