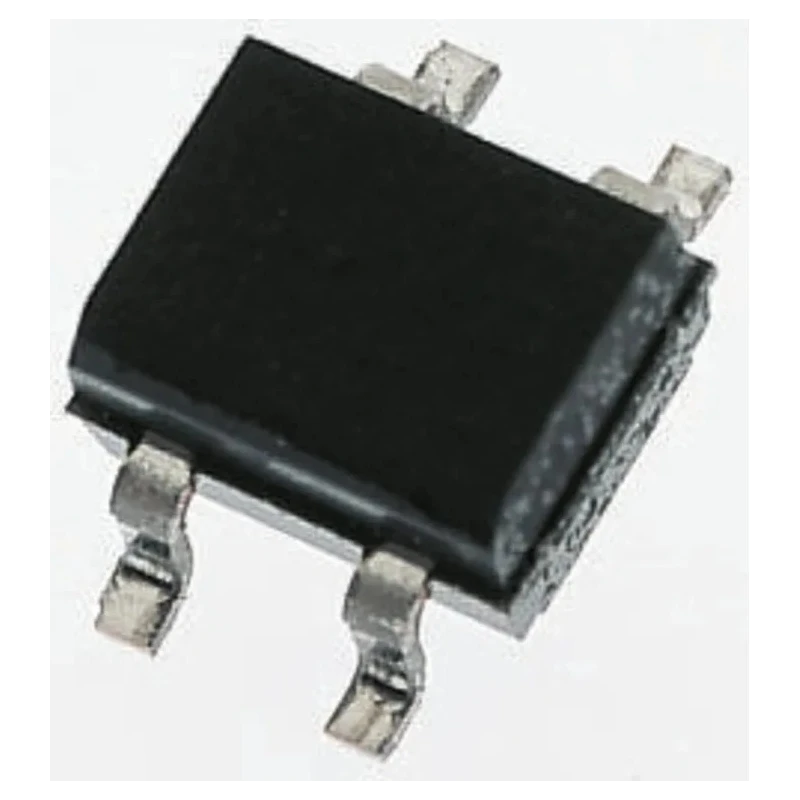

Taiwan Semiconductor Bridge Rectifier 400 V 30 A 4-Pin Single RMB4S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 4.9mm |
| Model | RMB4S |
| Width | 4mm |
| Mount Type | Surface |
| Series | RMB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | MBS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Forward Current If | 800mA |
| Peak Forward Voltage Vf | 1V |
Key Features
- Capable of peak reverse repetitive voltage of 400 V.
- Handles continuous forward current of 800 mA efficiently.
- Supports peak non-repetitive forward surge current up to 30 A.
- Compact dimensions with a height of 2.7 mm, length of 4.9 mm and width of 4 mm.
- Designed for surface mount with 4 pins in a single configuration.
- Operates reliably in temperatures ranging from -55°C to 150°C.
- Fast reverse recovery time and miniature glass passivated chip junction for enhanced durability.
- Complies with automotive standard AEC-Q101 ensuring high reliability.
Product Description
Taiwan Semiconductor RMB4S Bridge Rectifier is a high-quality discrete semiconductor designed to convert alternating current (AC) to direct current (DC) with high efficiency and reliability. This bridge rectifier features a 400 V peak reverse repetitive voltage and a 30 A peak forward surge current, making it suitable for robust electronic and power applications.
This component is designed as a compact surface mount device with a 4-pin single configuration, allowing easy and secure installation on printed circuit boards (PCBs). It has a miniature size with dimensions of 4.9 mm in length, 4 mm in width, and a height of 2.7 mm, facilitating space-saving electronic designs.
The RMB4S offers a continuous forward current of 800 mA while operating effectively within a wide temperature range from -55°C to 150°C. Its fast reverse recovery time and glass passivated chip junction enhance the device's performance and longevity by minimizing losses and improving thermal stability.
Certified to meet the automotive standard AEC-Q101, this bridge rectifier is well suited for demanding automotive and industrial electronics applications. It is particularly ideal for reflow soldering on PCBs, ensuring robust mounting and consistent electrical performance in manufacturing processes.
Peak reverse voltage: 400 V. Forward current: 800 mA. Surge current: 30 A peak non-repetitive. Package type: MBS surface mount. Operating temperature: -55°C to 150°C. Pin count: 4 pins. Automotive standard: AEC-Q101.
This bridge rectifier is extensively used in industrial electronics, power supplies, automotive circuits, and other applications requiring stable AC to DC conversion. Its small form factor and high performance make it an excellent choice for modern compact electronic device manufacturing.
Explore additional Taiwan Semiconductor Bridge Rectifiers and discrete semiconductor components in EnvMart's Electronics & Electricals category for seamless integration into your circuit designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the RMB4S bridge rectifier is 400 V.
This model can handle a continuous forward current of 800 mA efficiently.
The RMB4S supports a peak non-repetitive forward surge current of up to 30 A.
The dimensions of the RMB4S are 4.9 mm in length, 4 mm in width, and 2.7 mm in height.
It operates reliably within a temperature range of -55°C to 150°C.
The RMB4S has a pin count of 4 pins in a single configuration.
This bridge rectifier is designed for surface mount installation.
It complies with the automotive standard AEC-Q101, ensuring high reliability.
The peak forward voltage of the RMB4S is 1 V.
The RMB4S is packaged as an MBS surface mount device.
The peak reverse current for the RMB4S is specified at 5 μA.
This bridge rectifier is extensively used in industrial electronics, power supplies, and automotive circuits requiring stable AC to DC conversion.
