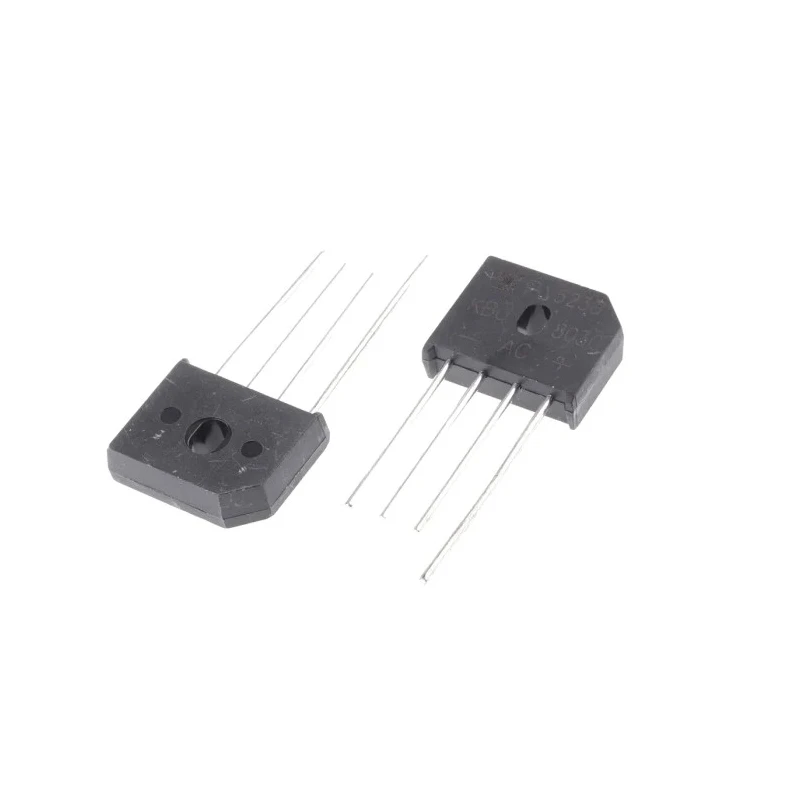

Taiwan Semiconductor Bridge Rectifier 200 V 8 A 4-Pin Single Through Hole KBU803G

Taiwan Semiconductor KBU803G Bridge Rectifier is a 4-pin single configuration device designed to convert alternating current (AC) input into direct current (DC) output efficiently. It operates at a voltage rating of 200 V with a forward current of 8 A, housed in a through-hole KBU package ideally suited for PCB mounting.

This bridge rectifier features a robust design with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C, making it suitable for demanding environments and industrial electronics applications.

The device is capable of withstanding a peak forward surge current of 200 A, ensuring reliability during surge events. Its low peak forward voltage drop of 1 V minimizes power loss during operation.

Dimensionally compact at 23.7 mm length, 7.1 mm width, and 19.3 mm height, the KBU803G is ideal for space-constrained electronic setups. The 4-pin configuration supports straightforward installation and secure connections on printed circuit boards through its wire lead structure.

Commonly used in power supply circuits, motor controls, battery charging systems, and industrial automation, this bridge rectifier provides consistent performance across various electronic and electrical applications.

The device supports a maximum forward current of 8 amperes. It features a peak reverse repetitive voltage rating of 200 volts. The package type is KBU with 4 pins for through-hole mounting. Operation temperature ranges from -55°C to 150°C for wide application use.

Peak forward surge current capacity of 200 amperes ensures durability in surge conditions. The peak forward voltage is 1 volt, enabling efficient rectification. Compact dimensions at 23.7 mm length, 7.1 mm width, and 19.3 mm height.

Single phase configuration suitable for standard bridge rectifier applications.

This product is categorized under Bridge Rectifiers in the semiconductor segment of electronics and electrical components. Designed for engineers and technicians, this component is essential for developing reliable power conversion circuits in industrial, commercial, and laboratory environments.
