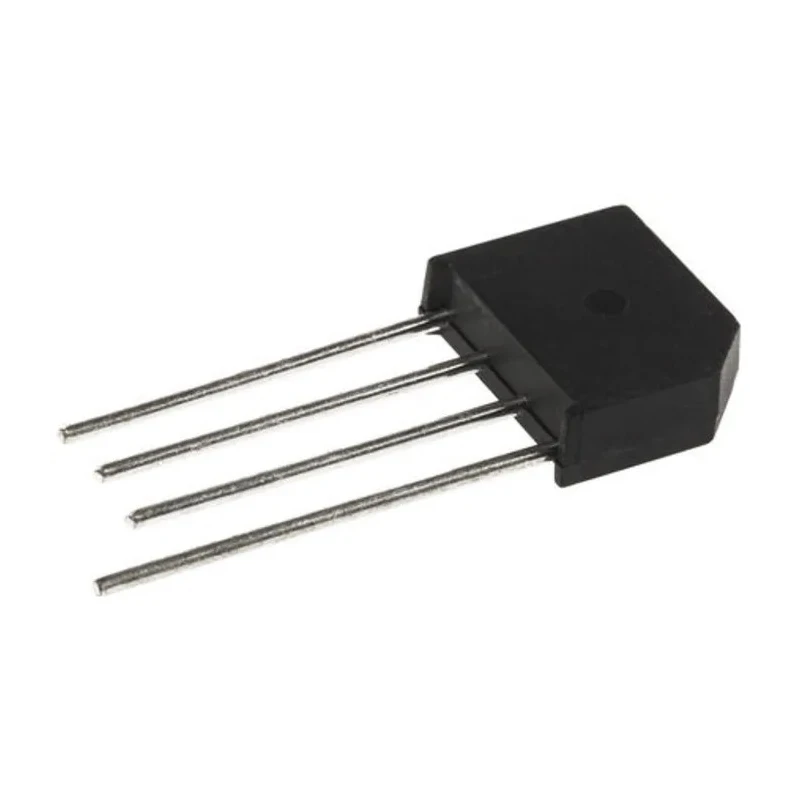

Taiwan Semiconductor Bridge Rectifier 1000 V 150 A 4-Pin Single KBL407G T0
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 16.38mm |
| Length | 19.6mm |
| Model | KBL407G T0 |
| Width | 6.48mm |
| Mount Type | Through Hole |
| Series | KBL4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1.1V |
| Fairchild Semiconductor Bridge Rectifier, 4A, 600V, 4-PinBrand | Fairchild Semiconductor |
| Taiwan Semiconductor Bridge Rectifier, 4A, 1000V, 4-PinBrand | Taiwan Semiconductor |
Key Features
- Capable of 4A forward current for steady operation.
- Operates reliably between -55°C and 150°C maximum temperature.
- Features low peak forward voltage of 1.1V ensuring efficiency.
- Through-hole mounting type suitable for PCB assembly.
- Compact package with dimensions 19.6mm length, 16.38mm height, and 6.48mm width.
- Glass passivated junction with wire lead structure enhances durability.
- SIL PCB mounting package for reliable electronic circuit integration.
- Ideal for converting AC input to DC output in electronic circuits.
Product Description
Taiwan Semiconductor KBL407G T0 Bridge Rectifier is a high-quality discrete semiconductor designed for converting alternating current (AC) to direct current (DC) efficiently in various industrial and electronic applications. It features a robust 1000 V peak reverse repetitive voltage rating and supports an average forward current of 4A, making it suitable for power regulation and rectification needs in industrial electronics, automotive, and manufacturing sectors.
This product is constructed using a glass passivated junction and wire lead structure, housed in a SIL PCB mounting package type (KBL series), ensuring longevity and stability under demanding conditions. Its through-hole mount type facilitates easy PCB integration and soldering, supporting reliable mechanical and electrical connections.
The rectifier operates effectively in a wide temperature range from -55°C to 150°C, allowing it to perform in harsh industrial environments. It delivers a peak non-repetitive forward surge current of 150A and features a low peak forward voltage drop of 1.1V, which improves efficiency by reducing power losses.
The compact form factor with dimensions of 19.6 mm in length, 16.38 mm in height, and 6.48 mm in width makes it suitable for installations where space is a constraint. Its single-phase, 4-pin single configuration is ideal for various electronics requiring reliable bridge rectification.
Capable of 4A forward current for steady operation. Operates in temperatures from -55°C to 150°C maximum. Low peak forward voltage drop of 1.1V enhances efficiency. Through-hole mounting type for PCB applications. SIL PCB mounting package ensures durability and stability.
Glass passivated junction provides enhanced protection and long life. Peak non-repetitive forward surge current of 150A for transient surges. Suitable for industrial, automotive, and manufacturing electronics applications.
This Taiwan Semiconductor Bridge Rectifier is manufactured in China and is supplied as a new product, ensuring quality and performance reliability. Its proven design makes it an excellent choice for engineers and technicians seeking efficient power conversion components.
Explore more semiconductor solutions and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of this model is 1000V.
It can handle a maximum forward current of 4A for steady operation.
This rectifier operates effectively between -55°C and 150°C.
The dimensions of this model are 19.6mm in length, 16.38mm in height, and 6.48mm in width.
It features a through-hole mounting type suitable for PCB assembly.
The peak non-repetitive forward surge current rating is 150A.
The peak forward voltage drop is 1.1V, which enhances efficiency.
It has a single-phase, 4-pin single configuration.
This model comes in a SIL PCB mounting package type.
It is suitable for converting AC input to DC output in various industrial and electronic applications.
This bridge rectifier is manufactured in China.
The series designation of this model is KBL4.
