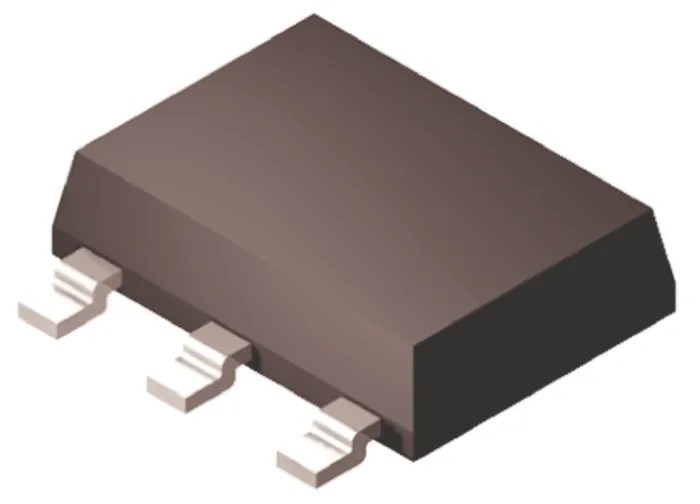

DiodesZetex High Voltage PNP Bipolar Transistor 1 A, 300 V, SOT-223 Package FZT957TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.8mm |
| Length | 6.55mm |
| Model | FZT957TA |
| Width | 7.1mm |
| Mount Type | Surface |
| Series | FZT957 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Collector Emitter Voltage Vceo | -300V |
| Minimum DC Current Gain hFE | 300 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 6V |
| Maximum Collector Base Voltage VCBO | 300V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 3W |
| Maximum DC Collector Current Idc | -1A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 85MHz |
Key Features
- This transistor is housed in a SOT-223 surface mount package providing robust thermal performance.
- Maximum power dissipation is rated at 3 W for stable operation in power applications.
- The transistor offers a high DC current gain (hFE) of 300, enhancing amplification efficiency.
- It supports a maximum transition frequency of 85 MHz, suitable for high-frequency switching.
- Operating temperature range spans from -55°C to 150°C, suitable for automotive and industrial environments.
- The transistor features a 4-pin configuration and is compliant with the AEC-Q101 automotive standard.
- Its compact dimensions are 6.55 mm length, 7.1 mm width, and 1.8 mm height for easy PCB integration.
Product Description
The DiodesZetex FZT957TA is a high voltage PNP bipolar transistor designed for demanding electronic applications that require reliable switching and amplification performance.
This transistor supports a maximum DC collector current of 1 ampere and a collector emitter voltage rating up to 300 volts. Its surface mount SOT-223 package ensures efficient heat dissipation, with a maximum power dissipation of 3 watts, making it well-suited for power regulation and control circuits.
The FZT957TA features a single transistor configuration with a high minimum DC current gain (hFE) of 300, which allows for effective signal amplification. With a maximum transition frequency of 85 MHz, it can support high-frequency operations, ideal for RF and switching applications.
Engineered to function across a wide temperature range from -55°C to 150°C, this device is suitable for automotive-grade and industrial environments, meeting the stringent AEC-Q101 automotive qualification standard.
The transistor comes with a 4-pin layout and compact physical dimensions of 6.55 mm length, 7.1 mm width, and 1.8 mm height, allowing for versatile use on various surface mount PCBs and assemblies. It supports maximum emitter base and collector base voltages of 6 V and 300 V respectively, ensuring robust performance in complex circuits.
This transistor is ideal for use in power amplification, switching, and general-purpose bipolar transistor applications in electronics, automotive, and industrial fields. It is supplied in reel packaging, facilitating efficient automated assembly for manufacturing processes.
Explore more DiodesZetex bipolar transistors and Semiconductors at EnvMart for reliable components that meet industrial and automotive standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector emitter voltage (Vceo) for the FZT957TA is -300V.
This transistor can handle a maximum DC collector current of -1A.
The operating temperature range for this model spans from -55°C to 150°C.
The FZT957TA is housed in a SOT-223 surface mount package.
The maximum power dissipation for the FZT957TA is rated at 3W.
This model features a minimum DC current gain (hFE) of 300.
The maximum transition frequency for this transistor is 85 MHz.
The FZT957TA features a 4-pin configuration.
Yes, this transistor is compliant with the AEC-Q101 automotive standard.
The dimensions of this model are 6.55 mm in length, 7.1 mm in width, and 1.8 mm in height.
This transistor uses a single transistor configuration.
The maximum emitter base voltage (VEBO) for the FZT957TA is 6V.
