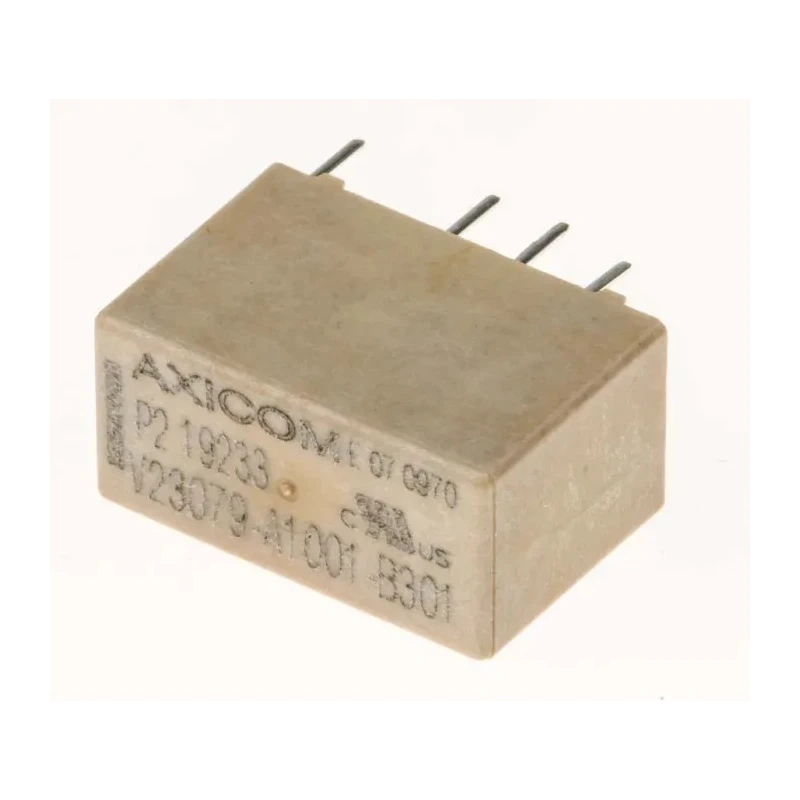

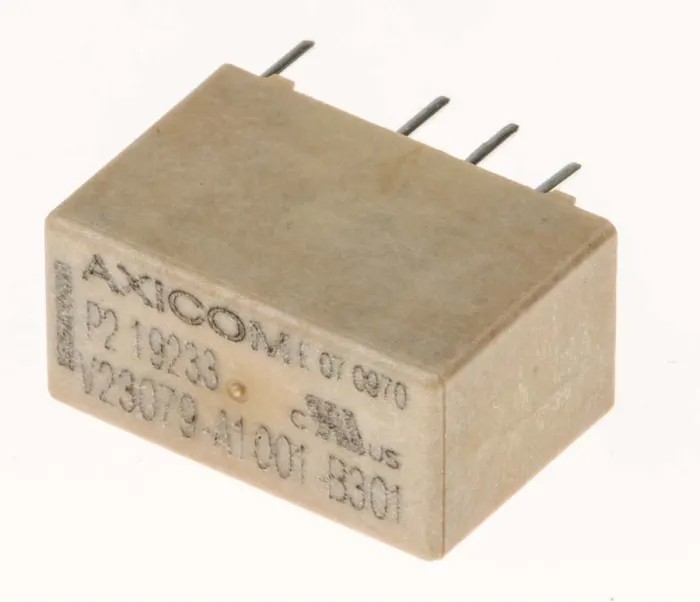

TE Connectivity Miniature PCB Signal Relay 5V DC Coil 2A DPDT Gold Plated Contacts V23079A1001B301

TE Connectivity V23079A1001B301 is a miniature PCB Signal Relay from the Axicom P2 series designed for industrial, telecommunications, and electronics applications. Featuring a 5V DC coil voltage and a low coil power of 140mW, this relay provides high sensitivity and low power consumption suitable for compact PCB assemblies.

The relay has a DPDT (Double Pole Double Throw) contact configuration with gold-plated bifurcated contacts that ensure reliable switching and long service life. With the ability to switch up to 2A current, and voltages of 250V AC and 220V DC, it is ideal for signal and telecom equipment.

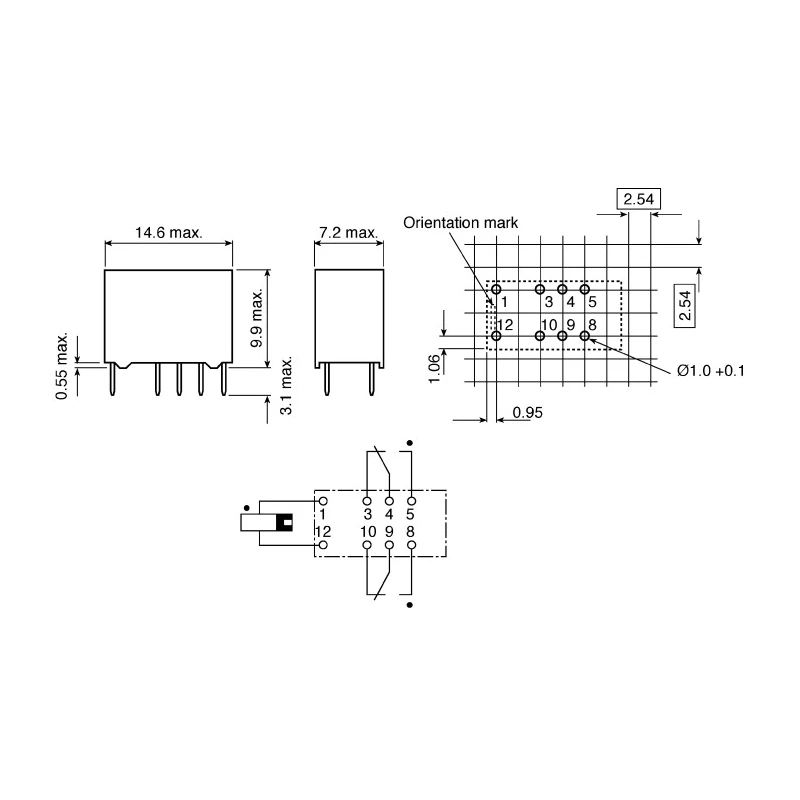

Its compact dimensions of 14.5mm length, 9.8mm height, and 7.4mm width allow for efficient space utilization on printed circuit boards. The relay is rated for operating temperatures from -40°C to 85°C and is RoHS compliant with a V-0 flammability rating. It also offers immersion cleaning (RTIII) and IP67 ingress protection, making it rugged for industrial environments. Surge protection meets Telcordia and IEC standards to ensure durability under voltage transients.

This relay is widely used in communications equipment for ringing and test access in PABX and VOIP systems, as well as in consumer electronics like set-top boxes and HiFi audio systems. It is suitable for use in control systems, medical devices, and automotive electronics, providing reliable signal switching across various applications.

Manufactured in Czech Republic, this TE Connectivity Axicom P2 relay combines quality materials such as gold-plated contacts and solder terminals, promoting long-term reliability and performance in demanding electrical environments.

This miniature relay features gold-plated bifurcated contacts for enhanced conductivity. It has a coil resistance of 178Ω and coil power consumption of only 140mW. The relay supports switching voltages of up to 250V AC and 220V DC.

Designed with a slimline, low profile suitable for space-saving PCB mounting. Operates reliably within a temperature range from -40°C to 85°C. It has an immersion cleanable rating RTIII and an IP67 ingress protection classification.

The relay complies with RoHS standards and offers V-0 flammability classification. Surge capability meets Telcordia TR-NWT-001089 and IEC 60950 safety standards. Applications include communications equipment, consumer electronics, office equipment, control, medical, and automotive equipment.
