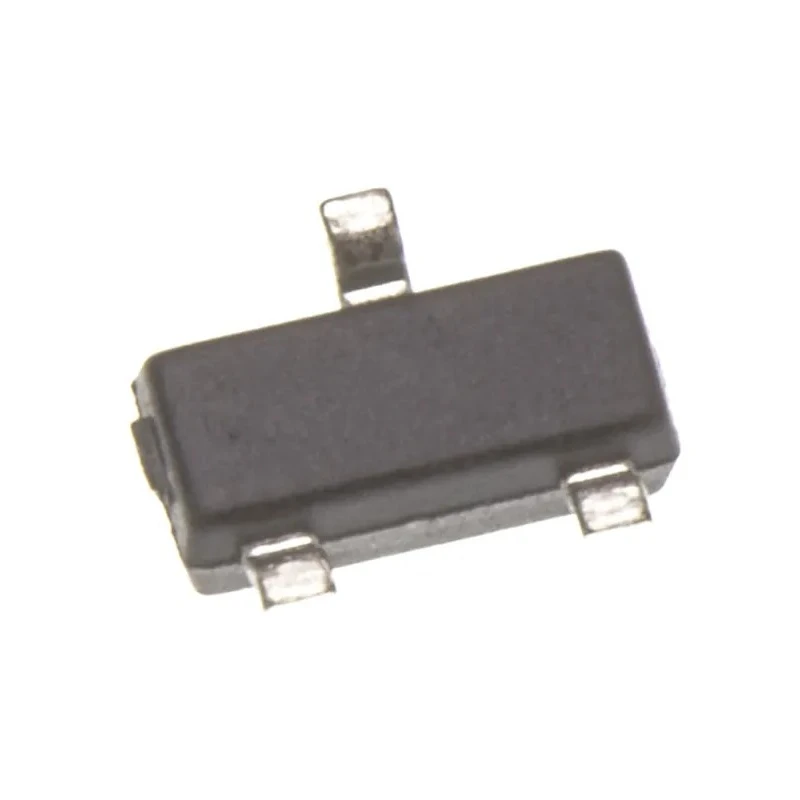

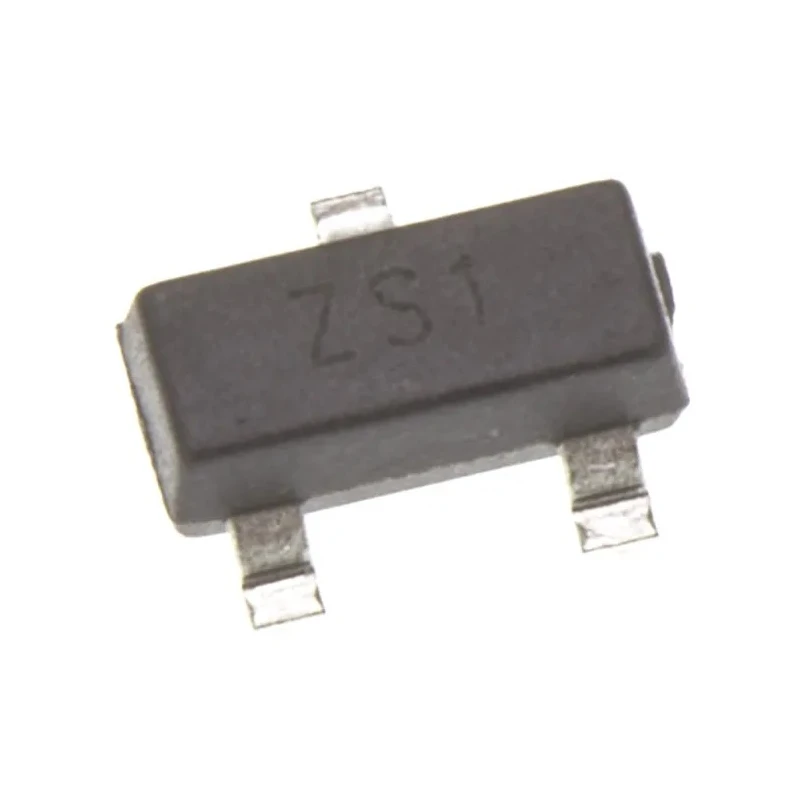

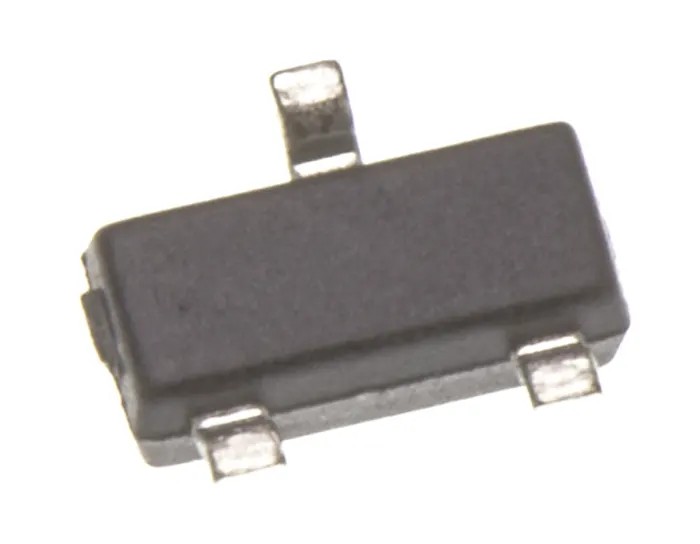

DiodesZetex 40 V 1.75 A Schottky Diode Single Rectifier 3-Pin SOT-23 ZHCS1000TA

DiodesZetex ZHCS1000TA is a high-quality Schottky barrier diode designed for surface mount applications requiring efficient rectification with low forward voltage drop. This single rectifier diode is housed in a compact 3-pin SOT-23 package, ideal for space-constrained electronic circuits.

With a maximum continuous forward current rating of 1.75 A and a peak reverse repetitive voltage of 40 V, the ZHCS1000TA offers dependable performance in various power electronic applications. It is engineered to operate reliably over a broad temperature range from -55°C to 125°C, making it suitable for automotive, industrial, and consumer electronic environments.

The diode exhibits a very low maximum forward voltage of 600 mV, minimizing power losses and enhancing system efficiency. Its fast peak reverse recovery time of 12 nanoseconds supports high-frequency switching designs with reduced switching losses. Additionally, the diode can handle short surge currents of up to 12 A, allowing it to withstand transient load conditions typically encountered in power circuits.

The device complies with the automotive standard AEC-Q101, underscoring its robustness and reliability for automotive electronics usage. The physical dimensions of 3.05 mm length, 1.4 mm width, and 1 mm height enable designers to implement compact PCB layouts without compromising functionality.

Designed for efficient low forward voltage drop and fast switching. Maximum continuous forward current of 1.75 amps ensures robust performance. Peak reverse repetitive voltage of 40 volts for reliable blocking capability.

Compact SOT-23 package with 3 pins supports surface mounting. Wide operating temperature range from -55°C to 125°C suits harsh environments. Peak non-repetitive forward surge current of 12 amps accommodates transient conditions.

Low maximum forward voltage of 600 mV enhances energy efficiency. Fast peak reverse recovery time of 12 nanoseconds reduces switching losses. Automotive compliant with AEC-Q101 standard for quality assurance. Dimensions: Length 3.05 mm, Width 1.4 mm, Height 1 mm for compact PCB layouts.

This diode is ideal for power management, switching supply circuits, voltage clamping, freewheeling diodes, and other applications requiring reliable rectification with low switching losses. Its proven performance and compliant standards make it suitable for industrial, automotive, and consumer electronics environments.
