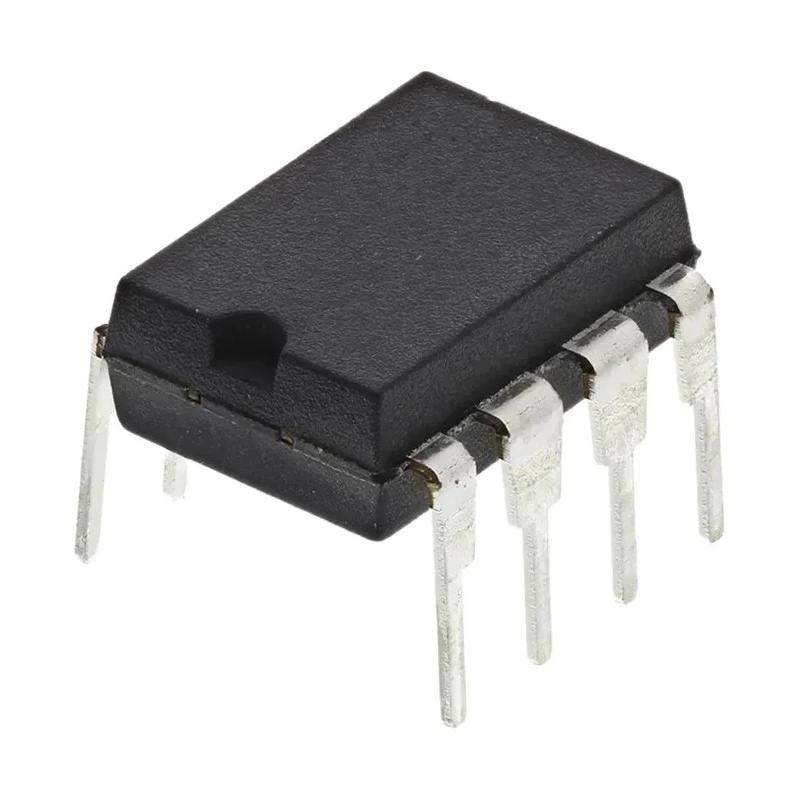

Texas Instruments Line Transceiver Differential Non-Inverting Through Hole 8-Pin PDIP SN65HVD3082EP

Texas Instruments SN65HVD3082EP is a high-performance line transceiver IC used primarily for differential signal transmission in RS-485 communication networks. This device is designed as a non-inverting line transceiver with a single communication channel packaged in a through hole 8-pin PDIP form factor, making it compatible with standard PCB mounting processes.

Operating over a voltage range of 4.5V to 5.5V, this transceiver delivers robust signal integrity while maintaining low power consumption with a typical supply current of 60mA. Its maximum propagation delay of 7ms ensures timely data communication suitable for industrial automation, control systems, and data acquisition equipment.

The transceiver supports differential input and output signaling, providing noise immunity critical in harsh electrical environments encountered in manufacturing, automotive, and instrumentation applications. The device works reliably across a wide operating temperature range from -40°C up to 85°C, suitable for tough field conditions.

With exact dimensions of 10.16mm length, 6.6mm width, and 5.08mm height, the IC fits compactly into circuit designs requiring through hole mounting. It delivers output currents up to ±8mA ensuring effective drive capability for RS-485 network lines.

Operates at supply voltages from 4.5V to 5.5V. Non-inverting line transceiver design with differential input/output. Single channel for RS-485 line driver and receiver applications. Maximum propagation delay time of 7ms at specified capacitive load.

Works reliably in temperatures between -40°C to 85°C. Through hole mount with 8-pin PDIP package size. Compact external dimensions ideal for industrial electronics. Supply current approximately 60mA for efficient operation.

Maximum output current ±8mA ensures robust signal drive. Designed for automotive and industrial communication systems.

This Texas Instruments transceiver is suited for use in industrial machines, measurement and control devices, communication equipment, and electronic instrumentation applications requiring dependable RS-485 interface solutions.

For additional product details and technical documentation, users can refer to official Texas Instruments resources as well as the RS Components catalog. Explore more semiconductor solutions and Line Transceiver ICs in the Electronics & Electricals category at EnvMart.
