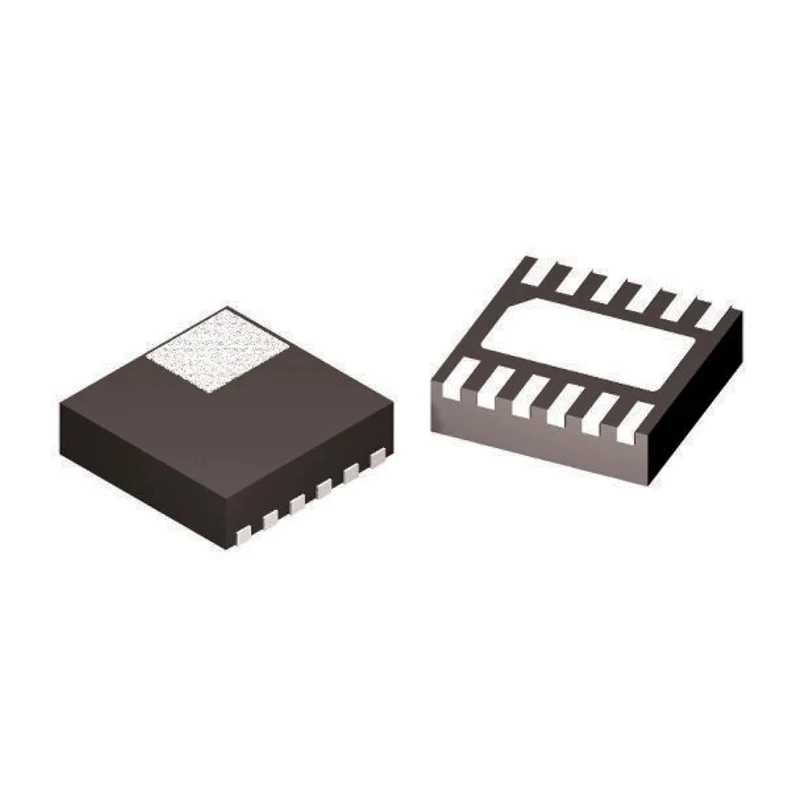

STMicroelectronics Line Transceiver IC, Push Pull Output, 12-Pin VFDFPN Package L6362ATR

STMicroelectronics L6362ATR is a high-performance line transceiver IC with a push pull output stage housed in a compact 12-pin VFDFPN surface mount package. It operates over a wide supply voltage range of 7V to 36V, accommodating diverse industrial environments and power conditions.

This device supports single-ended input signals and features selectable output stages such as high-side, low-side, and push-pull configurations to effectively drive various load types including resistive, capacitive, and inductive loads. With maximum output currents of 310mA (high-level) and -310mA (low-level), it ensures robust signal transmission.

Designed especially for industrial applications, the L6362ATR supports IO-Link and SIO modes complying with PHY2 (3-wire connection) and communication speeds COM1 (4.8 kbaud), COM2 (38.4 kbaud), and COM3 (230.4 kbaud). Its broad ambient temperature range from -40°C to +125°C and rugged standards compliance (IEC 61000-4-4, EN60947-5-2, IEC 61000-4-2) make it suitable for harsh industrial environments.

The transceiver also offers fast demagnetization capabilities for inductive loads with switching capabilities up to 500 mJ, enhancing performance in industrial setups. Overload with cut-off, reverse polarity protection, and undervoltage/overvoltage safeguards ensure reliable operation and device longevity.

This line transceiver is ideal for industrial sensors, factory automation, and communication interface IC applications requiring precise, fast, and reliable signal transmission within harsh conditions.

Operates at supply voltage between 7V and 36V with low supply current of 2.3mA. Push pull output stage with selectable output configurations supports various load types. High-speed operation with propagation delay time of 400ns.

Extensive operating temperature range from -40°C to +125°C. Meets relevant IEC and EN industrial standards ensuring EMC and safety. Robust protection features including overload cut-off, reverse polarity, and voltage protection.

Supports IO-Link and SIO modes at multiple communication speeds. Compact 12-pin VFDFPN surface mount package for efficient PCB space utilization.
