Analog Devices RS-232 Line Transceiver TTL CMOS Surface Mount LFCSP 32-Pin 2.7-3.6V ADM3307EACPZ

Free Delivery in India | Lowest Global Shipping Charges

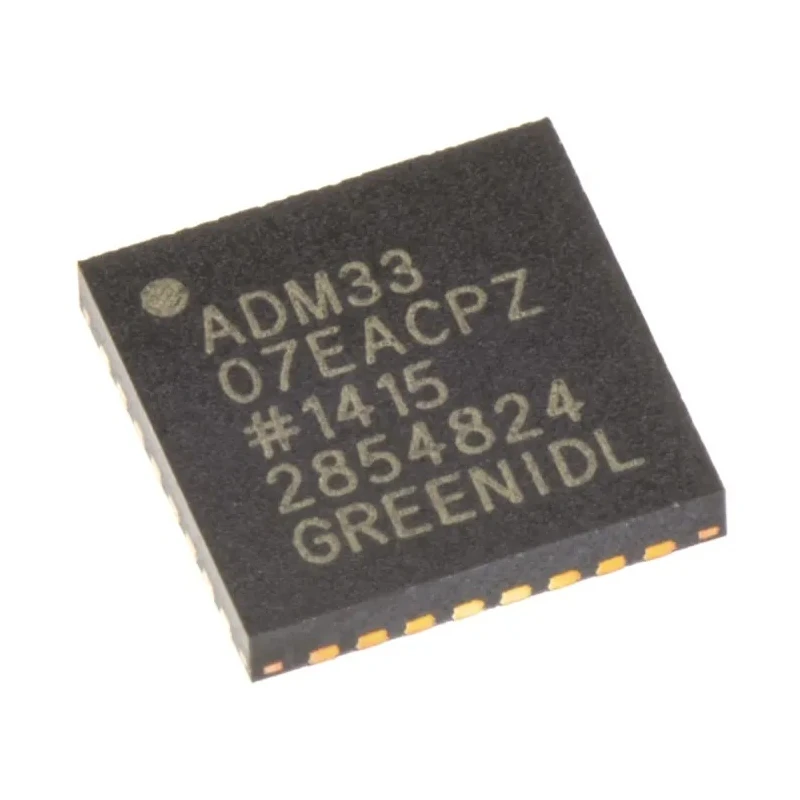

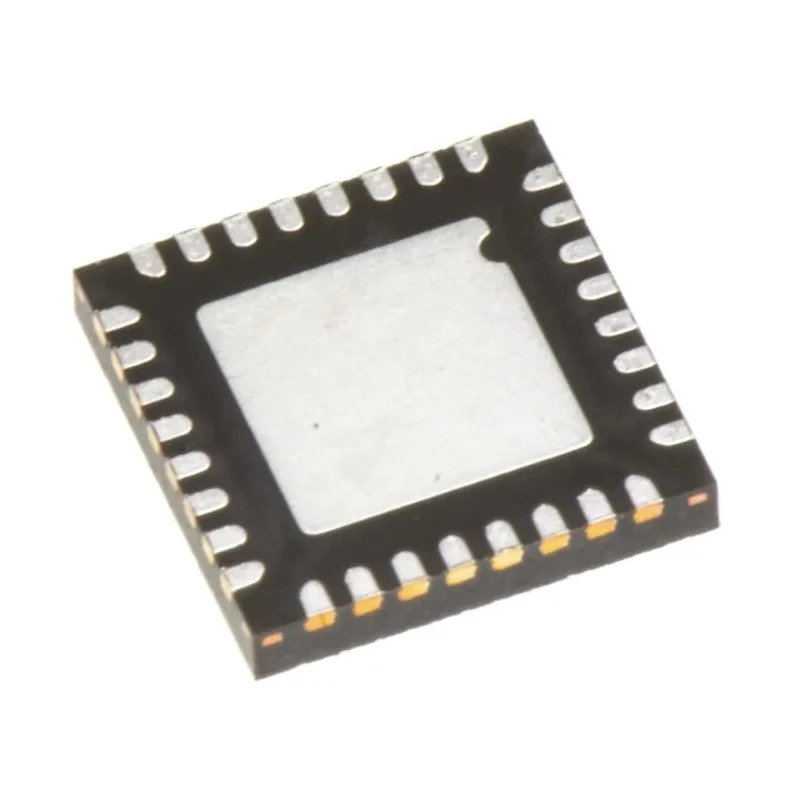

Analog Devices RS-232 Line Transceiver TTL CMOS Surface Mount LFCSP 32-Pin 2.7-3.6V ADM3307EACPZ

Name: Analog Devices RS-232 Line Transceiver TTL CMOS Surface Mount LFCSP 32-Pin 2.7-3.6V ADM3307EACPZ
Brand: Analog Devices
SKU: 213592
Price: 5.3 USD
Availability: InStock



Category Line Transceiver IC Brand Analog Devices Condition New

Specifications

Country of Origin	India
Brand	Analog Devices
Height	800μm
Length	5.1mm
Model	ADM3307EACPZ
Width	5mm
Mount Type	Surface
Output type	TTL, CMOS
Series	ADM3307E
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	LFCSP
Minimum Operating Temperature	-40°C
IC Type	Line Transceiver
Standards/Approvals	EIA-232, IEC 1000-4-2
Pin Count	32
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Driver & Receiver
Minimum Supply Voltage	2.7V
Maximum Propagation Delay Time @ CL	1μs
Supply Current	1.5mA

Key Features

Supports single-ended input type for interfacing flexibility.
Compatible with TTL and CMOS output logic families.
Surface mount package type LFCSP optimizes board space.
Operating temperature range from -40°C to 85°C suitable for harsh environments.
Maximum propagation delay of 1 microsecond ensures fast data transmission.
Low supply current of 1.5mA reduces power consumption.
Complies with EIA-232 and IEC 1000-4-2 standards for reliability.

Product Description

The Analog Devices ADM3307EACPZ is a high-performance RS-232 line transceiver that integrates both drivers and receivers. It operates on a single-ended input and provides TTL and CMOS compatible output levels. This device is housed in a 32-pin LFCSP surface-mount package, making it ideal for space-constrained applications.

Designed for industrial and automotive use, the component supports a supply voltage range from 2.7V to 3.6V, providing robust operation in various environments. It functions reliably over an extended temperature range from -40°C to 85°C and offers a maximum propagation delay of just 1 microsecond, enabling rapid communication transfers.

The device features a low supply current of 1.5mA, enhancing energy efficiency and extending system battery life. Its compliance with EIA-232 and IEC 1000-4-2 standards guarantees performance and electromagnetic compatibility in demanding industrial settings.

Physical dimensions are compact with a length of 5.1mm, width of 5mm, and a height of 800 micrometers, facilitating integration into dense electronic assemblies. Single-ended input for versatile line interface connectivity.

TTL and CMOS output logic compatibility for wide digital integration. Low power consumption with 1.5mA supply current. Wide operating temperature range for harsh environments. Meets EIA-232 and IEC 1000-4-2 standards for industry compliance.

Compact 32-pin LFCSP package saves PCB area.

Ideal for industrial communication, telemetry, automotive systems, and embedded applications requiring reliable RS-232 interface solutions. Explore more semiconductor and Line Transceiver ICs in EnvMart's Electronics & Electricals catalog.
