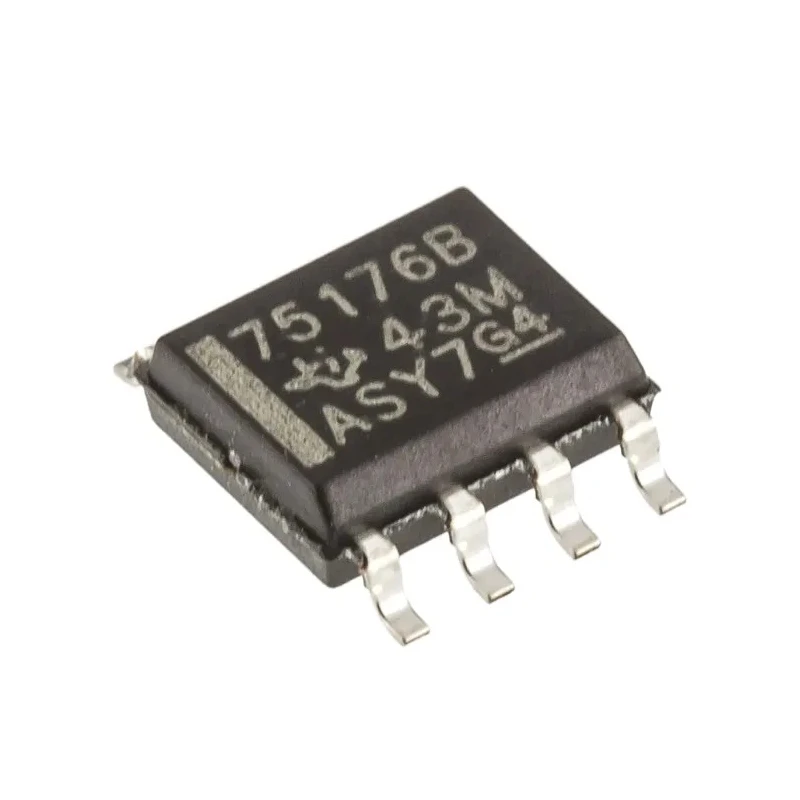

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN75176BD

Texas Instruments SN75176BD is a Line Transceiver IC designed for differential, non-inverting RS-485 bus communication. Packaged in an 8-pin SOIC surface mount form, it operates efficiently at supply voltages between 4.75V and 5.25V. The device features differential input and output interfaces, ensuring robust signal integrity with a maximum propagation delay time of 35ns at a specified load capacitance.

This line transceiver supports a temperature range from 0°C to 70°C, making it suitable for a variety of industrial and commercial environments. It provides one communication channel with a maximum high-level output current of -60mA and a maximum low-level output current of 60mA. The typical supply current draw is 70mA, reflecting its efficient operation.

The compact SOIC package measures 5mm in length, 3.98mm in width, and 1.75mm in height, facilitating integration into space-constrained circuit designs. It is part of the SN75176B series, known for high-speed RS-485 line drivers and receivers that achieve data rates of 10 Mbit/s or higher.

This transceiver is ideal for industrial communication systems, automation controllers, and electronic assemblies requiring reliable, high-speed differential bus transceivers with surface mount capabilities. Its non-inverting logic and differential signaling enhance noise immunity and signal clarity over long distances.

Operates within supply voltage range of 4.75V to 5.25V ensuring stable performance. Differential input and output with non-inverting polarity for noise resistant signal transmission. Maximum propagation delay time of 35ns suitable for high-speed data communication.

Compact SOIC package dimensions: 5mm x 3.98mm x 1.75mm (L x W x H). Supports operating temperatures from 0°C to 70°C for diverse environment operation. Single channel line transceiver with 8 pins for efficient PCB layout.

Typical supply current is 70mA ensuring low power consumption. Designed for RS-485 differential bus systems supporting data rates above 10 Mbit/s. Reliable performance for industrial, laboratory, and commercial electronics applications.

Explore more line transceiver and interface IC products from Texas Instruments at EnvMart for precision and durability in electronic circuitry.
