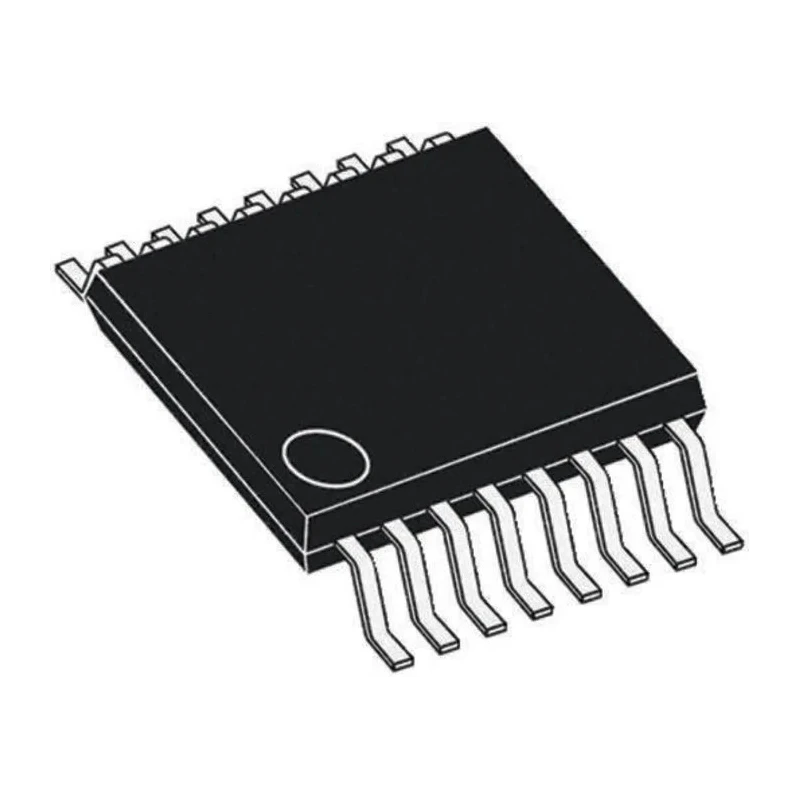

Renesas Electronics Line Transceiver TTL/CMOS Non-Inverting 16-Pin SSOP ICL3221ECAZ-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2mm |
| Length | 10.6mm |
| Model | ICL3221ECAZ-T |
| Width | 8.2mm |
| Mount Type | Surface |
| Output type | TTL/CMOS |
| Series | ICL32xxE |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Standards/Approvals | IEC61000-4-2, EIA/TIA-232, V.28/V.24 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- This line transceiver supports single-ended input type.
- Minimum supply voltage requirement is 3V with a maximum of 5.5V.
- The maximum propagation delay time at load capacitance is 0.15 microseconds.
- Operating temperature range is from -40°C to 125°C ensuring reliability over harsh conditions.
- It features surface mount type with dimensions of 10.6mm length, 8.2mm width, and 2mm height.
- Complies with IEC61000-4-2 and EIA/TIA-232 standards enabling robust ESD protection and communication interface.
- Designed within the ICL32xxE series for line transceiver ICs.
Product Description
Renesas Electronics ICL3221ECAZ-T is a high-performance line transceiver designed for use in electronic communication and control systems. This TTL/CMOS line transceiver operates with single-ended input signals and non-inverting logic output, making it suitable for interfacing with RS-232 standard systems and other communication protocols.
Operating within a supply voltage range of 3V to 5.5V, it provides robust performance with maximum propagation delays as low as 0.15 microseconds, enabling data transmission speeds up to 1 Mbps. The device sustains a wide operating temperature range from -40°C to 125°C, ensuring reliable operation in industrial, automotive, and harsh environmental conditions.
The 16-pin SSOP surface-mount package provides a compact footprint with dimensions of 10.6 mm in length, 8.2 mm in width, and 2 mm in height, facilitating easy integration into dense circuit layouts. Standards such as IEC61000-4-2 and EIA/TIA-232 compliance guarantee excellent electrostatic discharge protection and communication compatibility.
This line transceiver belongs to the ICL32xxE series, characterized by low power consumption and enhanced noise immunity. It is widely utilized in industrial automation, embedded systems, telecommunications equipment, and other electronic applications requiring reliable serial communication.
This line transceiver supports single-ended input type. Minimum supply voltage is 3V, with maximum supply voltage of 5.5V. Maximum propagation delay time at CL is 0.15 microseconds. Operating temperature ranges from -40°C to 125°C.
Dimensions are 10.6 mm length, 8.2 mm width, and 2 mm height. Standards compliance includes IEC61000-4-2 and EIA/TIA-232. Surface mount type package SSOP helps compact PCB design. Explore other semiconductor interface ICs and Line Transceiver ICs at EnvMart to find components tailored to your industrial, laboratory, manufacturing, and embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ICL3221ECAZ-T operates within a supply voltage range of 3V to 5.5V.
The maximum propagation delay time at load capacitance is 0.15 microseconds.
This model has dimensions of 10.6 mm in length, 8.2 mm in width, and 2 mm in height.
The operating temperature range is from -40°C to 125°C, allowing for reliable performance in harsh conditions.
It features a non-inverting output type compatible with TTL/CMOS logic levels.
This line transceiver complies with IEC61000-4-2 and EIA/TIA-232 standards, ensuring robust ESD protection and communication compatibility.
The ICL3221ECAZ-T supports single-ended input type signals.
This model has a pin count of 16.
The maximum high-level output current is -1mA.
The device comes in a surface mount package type, specifically SSOP.
This line transceiver is part of the ICL32xxE series, known for low power consumption and enhanced noise immunity.
It is widely utilized in industrial automation, embedded systems, telecommunications equipment, and other electronic applications requiring reliable serial communication.
