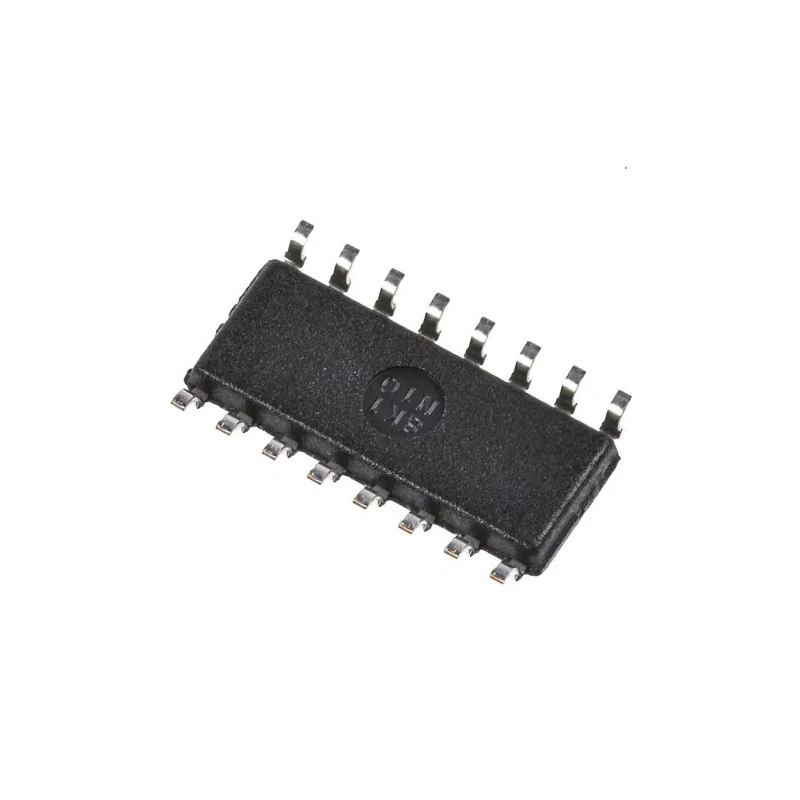

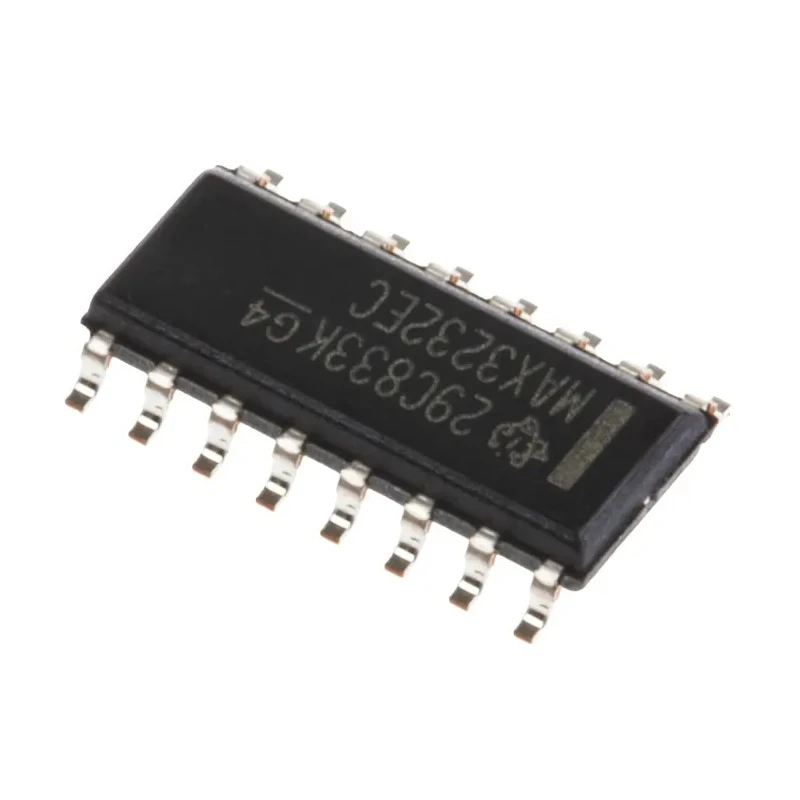

Texas Instruments Dual Channel RS-232 Line Transceiver, 16-Pin SOIC, 3-5.5V Supply, 1 Mbps MAX3232ECD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | MAX3232ECD |
| Width | 4mm |
| Mount Type | Surface |
| Series | MAX3232E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Dual Channel Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Supports RS-232 communication standards with dual line drivers and receivers.
- Operates at speeds up to 1 Mbps enabling fast data transmission.
- Includes ESD protection up to ±15 kV human-body model for robust performance.
- Compact SOIC 16-pin surface mount package with dimensions 10 mm length, 4 mm width, and 1.75 mm height.
- Low supply current of 1 mA for energy efficient performance.
- Designed to operate reliably between 0°C and 70°C temperature range.
- Single-ended input type and surface mount mount type maximize PCB design compatibility.
- Ideal for embedded system RS-232 interfaces in industrial and commercial applications.
Product Description
Texas Instruments MAX3232ECD is a dual channel RS-232 line transceiver designed to meet or exceed TIA/EIA-232-F and ITU v.28 communication standards. It operates on a single supply voltage ranging from 3 V to 5.5 V, making it suitable for portable and embedded systems requiring RS-232 level translations.
This 16-pin SOIC surface mount device includes two line drivers and two line receivers, supporting data rates up to 1 Mbps, ideal for rapid serial communications. The integrated charge pump allows operation from low voltage supplies, eliminating the need for dual power rails.
With robust ±15 kV ESD protection and low supply current of only 1 mA, the MAX3232ECD ensures high reliability and energy efficiency in demanding environments. It can operate in ambient temperatures from 0°C to 70°C, suitable for industrial and commercial electronic equipment.
Compact form factor with dimensions 10 mm length, 4 mm width, and 1.75 mm height facilitates space-constrained PCB layouts. Its single-ended input configuration and surface mount technology enable easy integration into modern designs.
Applications include embedded device serial interfaces, communication equipment, instrumentation, and other electronic systems requiring dual RS-232 transceivers. Supports RS-232 communication standards with dual line drivers and receivers.
Operates at speeds up to 1 Mbps enabling fast data transmission. Includes ESD protection up to ±15 kV human-body model for robust performance. Compact SOIC 16-pin surface mount package with dimensions 10 mm length, 4 mm width, and 1.75 mm height.
Low supply current of 1 mA for energy efficient performance. Designed to operate reliably between 0°C and 70°C temperature range. Single-ended input type and surface mount mount type maximize PCB design compatibility. Ideal for embedded system RS-232 interfaces in industrial and commercial applications.
Explore more semiconductor line transceivers and interface ICs at EnvMart for industrial-grade electronic components.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at speeds up to 1 Mbps, enabling fast data transmission for RS-232 communication.
This model has dimensions of 10 mm in length, 4 mm in width, and 1.75 mm in height, making it suitable for space-constrained PCB layouts.
It is designed to operate reliably between 0°C and 70°C, suitable for industrial and commercial applications.
This unit operates on a single supply voltage ranging from 3 V to 5.5 V, making it compatible with various portable and embedded systems.
It features a single-ended input type, which maximizes compatibility with modern PCB designs.
It includes robust ESD protection up to ±15 kV according to the human-body model, ensuring reliable performance in demanding environments.
The supply current is low at only 1 mA, contributing to its energy-efficient performance.
This line transceiver has a total of 16 pins, facilitating its integration into various electronic systems.
It comes in a compact SOIC (Small Outline Integrated Circuit) package, which is ideal for surface mounting.
It is ideal for embedded device serial interfaces, communication equipment, instrumentation, and other electronic systems requiring dual RS-232 transceivers.
The maximum propagation delay time is 300 ns at a specified load capacitance, ensuring timely data transmission.
It functions as both a driver and receiver, supporting RS-232 communication standards effectively.
