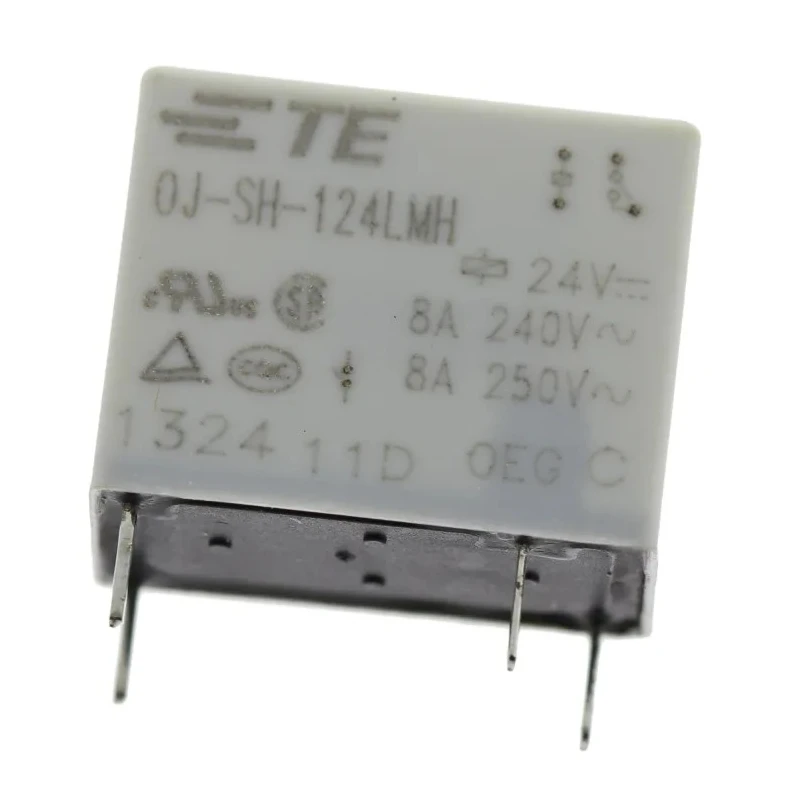

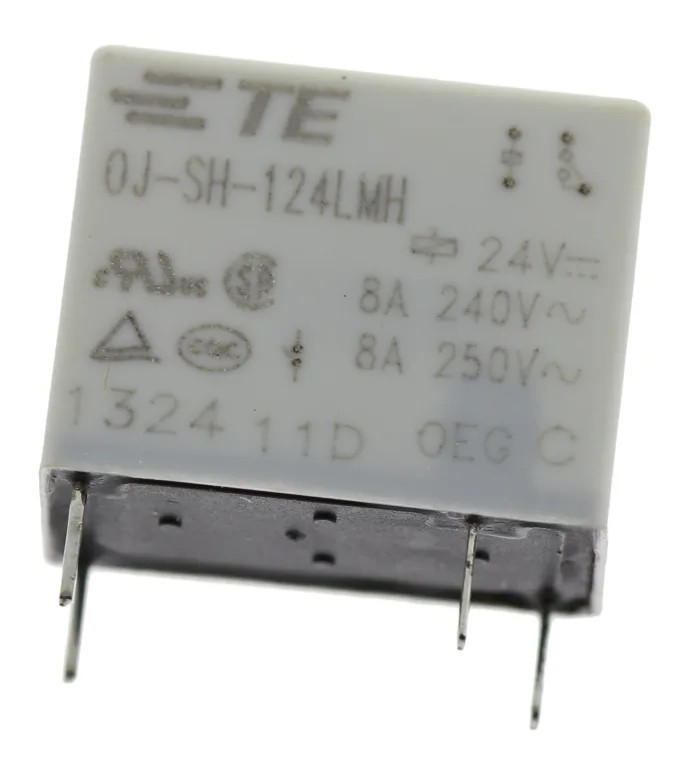

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current SPST OJ-SH-124LMH
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | OJ-SH-124LMH |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJ |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.8kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- The relay features a Single Pole Single Throw (SPST) contact configuration for straightforward circuit control.
- It mounts directly onto a PCB using solder terminals for secure installation.
- Coil voltage is 24V dc with a coil power consumption of 200mW and resistance of 2.8kΩ.
- Operates reliably in temperatures from -30°C to 80°C, suitable for diverse environments.
- High switching capabilities with AC voltage up to 277V ac and DC voltage up to 30V dc.
- Compact dimensions of approximately 14.7mm height, 18.2mm length, and 10.2mm width conserve PCB space.
- Contact material is silver alloy, enhancing conductivity and durability.
- Conforms to RoHS standards ensuring compliance with environmental regulations.
Product Description
TE Connectivity OJ-SH-124LMH is a high-quality PCB power relay featuring a 24V dc coil and an 8A switching current capacity. This SPST relay is engineered for electronic and electrical circuit switching, offering precision and efficiency in controlling power loads.
The relay is designed for PCB mounting with solder terminals, enabling robust and reliable electrical connections suitable for industrial and commercial electronics applications. It operates efficiently within a temperature range of -30°C to 80°C, making it adaptable to various usage conditions.
Key technical specifications include a coil resistance of 2.8kΩ and coil power consumption of 200mW, ensuring low energy usage during activation. It can handle switching voltages up to 277V ac for AC circuits and 30V dc for DC circuits, meeting the demand for versatile relay applications.
The device’s compact size, measuring 14.7mm in height, 18.2mm in length, and 10.2mm in width, allows ease of integration into dense PCB layouts without sacrificing performance. The silver alloy contact material provides excellent conductivity and wear resistance, enhancing the relay’s lifespan and performance reliability.
Compliant with RoHS directives, this relay is environmentally safe and suitable for modern electronic design priorities. The OJ Series isolation coil to contact rating of 4000Vac underscores its robust insulation and safety credentials.
Single Pole Single Throw (SPST) configuration for simple switching operations. Operating temperature range from -30°C up to 80°C for durable performance. Coil voltage rated at 24V dc with a power consumption of 200mW. Switching current rated at 8A, supporting moderate electrical loads.
Compact dimensions ideal for PCB mount devices. Contact material silver alloy ensures superior electrical performance. Meets RoHS environmental compliance standards.
This relay is widely suitable for use in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial and industrial electronics. Its specifications and robust build make it a reliable component for controlling power and signals within complex electronic systems.
For further information, explore EnvMart’s extensive range of Power Relays and TE Connectivity products.
