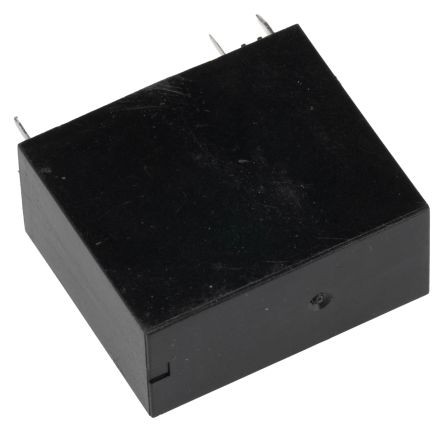

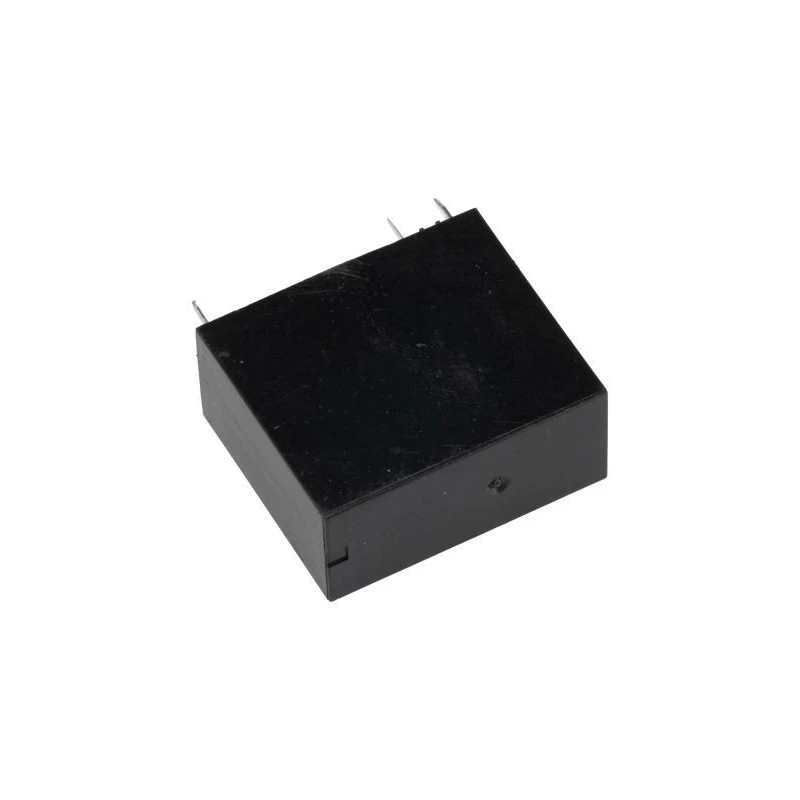

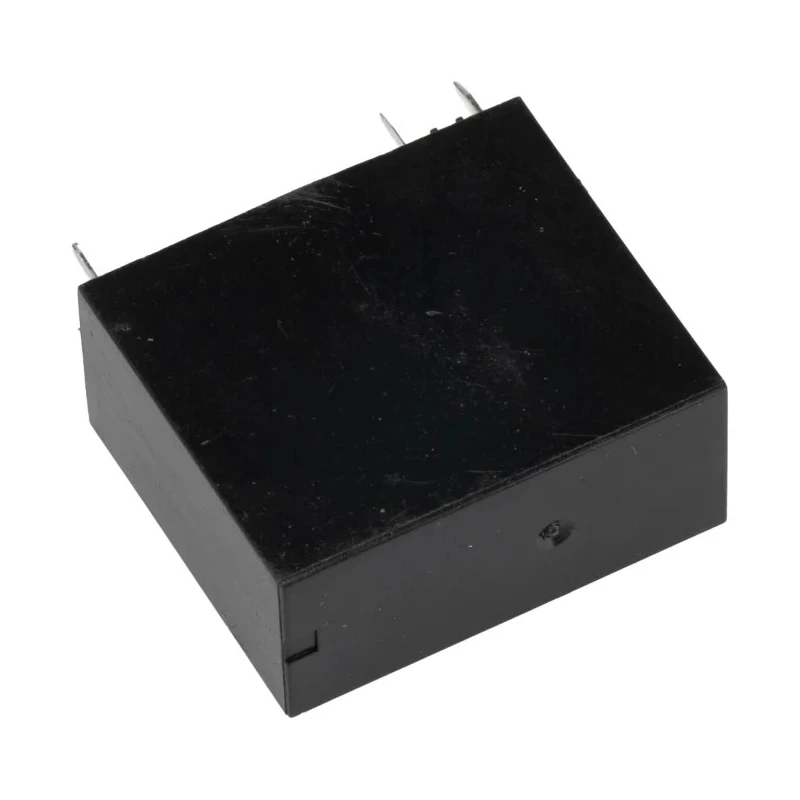

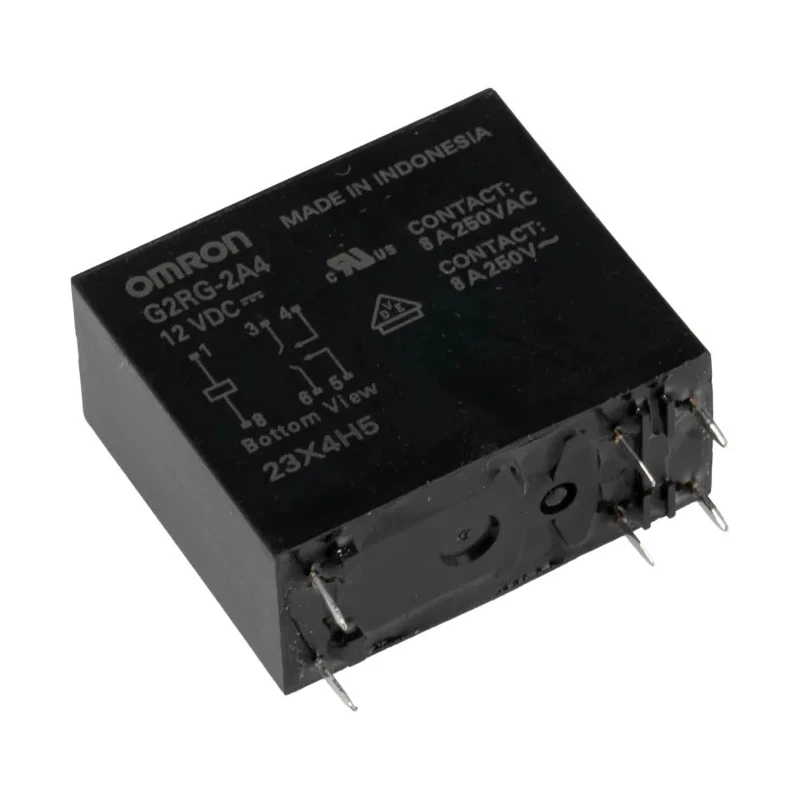

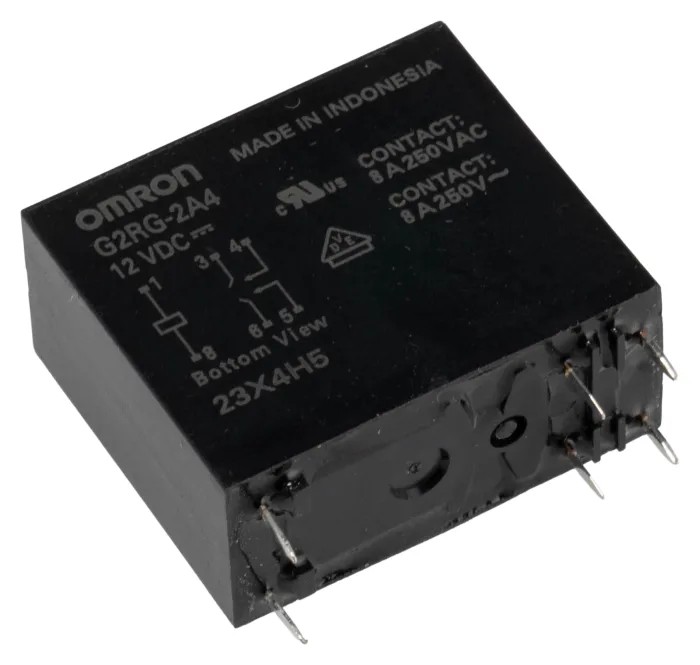

Omron Power Relay DPST PCB Mount 12V DC Coil 8A Switching Current G2RG-2A4 DC12

Omron G2RG-2A4 DC12 Power Relay is a high-quality DPST contact configuration relay designed for PCB mounting applications. Featuring a 12V DC coil voltage and an 8A switching current capacity, this relay ensures reliable switching of loads in electrical and automation systems.

Operating reliably within a temperature range of -40°C to 70°C, the relay is optimized for use in industrial, automation, and electronic control applications. Its compact size of 25.5mm height, 13.5mm width, and 29mm length allows for easy integration into circuit boards with solder terminal mount type ensuring solid mechanical and electrical connections.

The relay supports switching AC voltages up to 440V and DC voltages up to 300V with a maximum switching power of 2kVA. Its silver alloy contacts minimize contact resistance (100mΩ) and provide long service life under frequent operations. The coil resistance of 180Ω and coil power of 400mW contributes to efficient coil energizing and low power consumption.

The fully sealed housing design offers enhanced protection against environmental contaminants, while a tracking resistance CTI rating above 250V adds safety against electrical tracking. The product complies with international safety standards including IEC/EN 60079-15, VDE insulation grade C250, UL508, CSA22.2, and is RoHS compliant.

Suitable for industrial and automation control applications requiring reliable power switching. Ideal for PCB based relay modules in electrical, manufacturing, and HVAC systems. Safe, durable, and compact design with internationally recognized approvals.

Maximum operating temperature rating of 70°C supports diverse operating environments. Fully tested for consistent switching performance and long operational life.

Choose Omron G2RG-2A4 DC12 relay for dependable and efficient PCB power relay applications. Explore more products in the Power Relays category at EnvMart for comprehensive industrial electrical solutions.
