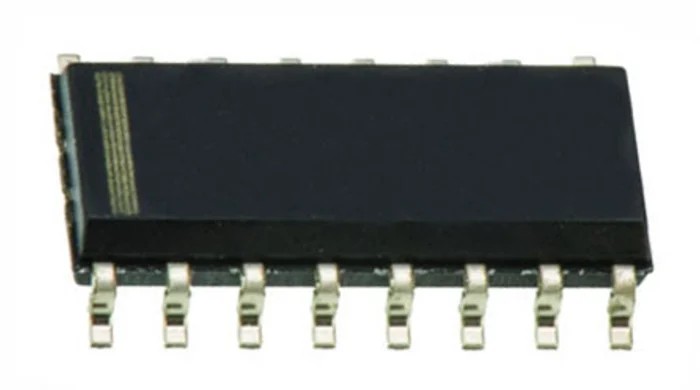

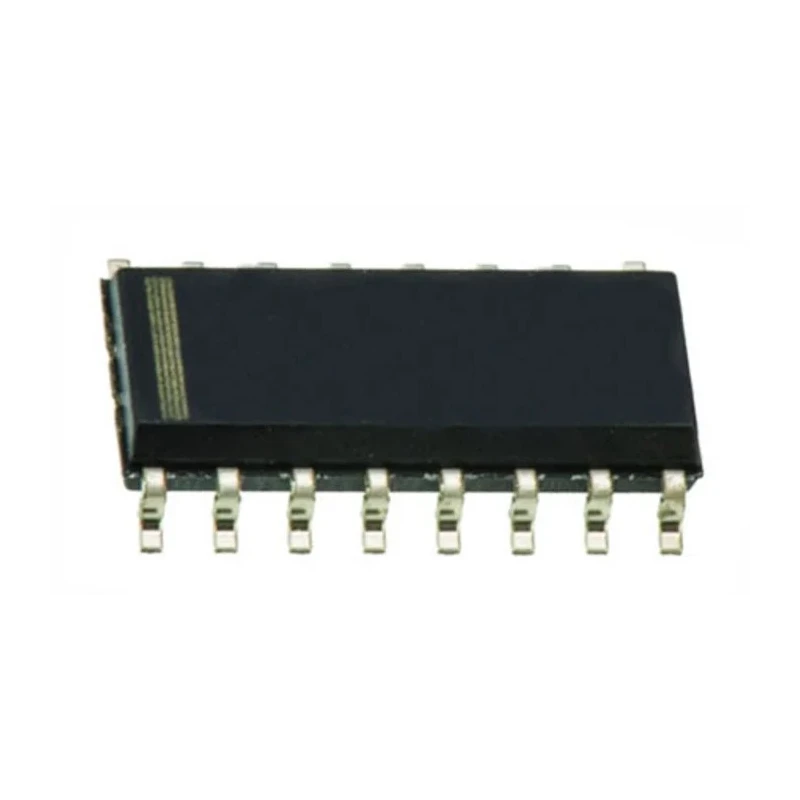

Texas Instruments 4-Channel Differential Non-Inverting Line Receiver, Surface Mount SOIC 16-Pin SN65LBC173AD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | SN65LBC173AD |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65LBC173A |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Receiver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 16ns |
| Supply Current | 16mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Supports 4 independent channels for versatile applications.
- Differential input and output improve noise immunity and signal integrity.
- Non-inverting polarity ensures true signal representation.
- Surface mount design with 16-pin SOIC package for compact PCB footprint.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- Operating voltage range from 4.75V to 5.25V for stable performance.
- Low propagation delay time of 16ns for fast signal processing.
- Supply current of 16mA balances power efficiency and performance.
Product Description
Texas Instruments SN65LBC173AD is a 4-Channel Differential Non-Inverting Line Receiver designed for high-performance signal reception in electronic systems. The device features differential inputs and outputs which provide excellent noise immunity, making it suitable for communication interface applications and industrial automation systems.
This receiver is housed in a compact 16-pin SOIC surface mount package measuring 10mm in length, 4mm in width, and 1.75mm in height, allowing for high-density PCB layouts. Operating voltage ranges between 4.75V and 5.25V, with a supply current of 16mA ensuring efficient operation.
The SN65LBC173AD supports a wide temperature range from -40°C to 85°C, making it appropriate for automotive, industrial, and commercial environments. It delivers a maximum propagation delay of 16ns, enabling fast signal response in line transceiver applications.
Typical applications include RS-422 interface communication, differential line driving, and other industrial data transmission uses. Its non-inverting output maintains signal fidelity across varied load conditions with maximum high-level and low-level output currents of -8mA and 8mA respectively.
Supports 4 independent channels for versatile applications. Differential input and output improve noise immunity and signal integrity. Non-inverting polarity ensures true signal representation. Surface mount design with 16-pin SOIC package for compact PCB footprint.
Wide operating temperature range from -40°C to 85°C suitable for diverse environments. Operating voltage range from 4.75V to 5.25V for stable performance. Low propagation delay time of 16ns for fast signal processing. Supply current of 16mA balances power efficiency and performance.
Meets industry standard SN65LBC173A series requirements.
This device is ideal for industrial automation, communication, and instrumentation systems requiring reliable differential line reception. Select this Texas Instruments SN65LBC173AD for robust line interface IC performance with proven quality and consistency.
Browse more semiconductor Line Interface ICs and electronic components for enhanced system designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range is from 4.75V to 5.25V, ensuring stable performance across various applications.
This model supports 4 independent channels, allowing for versatile applications in signal processing.
The maximum propagation delay time is 16ns, enabling fast signal processing capabilities.
The dimensions are 10mm in length, 4mm in width, and 1.75mm in height, suitable for compact PCB layouts.
The supply current is 16mA, balancing power efficiency with performance.
It provides a differential output, which enhances noise immunity and signal integrity.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse environments.
This model comes in a 16-pin SOIC surface mount package, allowing for high-density PCB layouts.
The input type is differential, which improves signal reception and integrity.
The maximum high-level output current is -8mA, while the maximum low-level output current is 8mA.
It functions as a line transceiver, facilitating communication in various electronic systems.
The SN65LBC173AD is manufactured in India.
