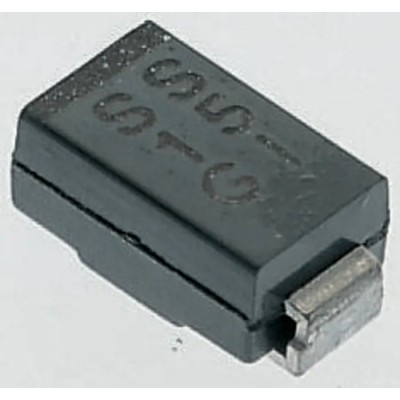

Taiwan Semiconductor 200 V 1 A Surface Mount Switching Diode DO-214AC ES1D R2

Taiwan Semiconductor ES1D R2 is a precision surface mount switching diode designed for electronic power management and protection applications. Rated with a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 200 volts, it is ideal for use in compact circuits requiring efficient rectification and protection against voltage spikes.

This diode uses the DO-214AC package, a compact and industry-standard surface mount form factor enabling reduced board space and improved thermal dissipation. The device features a single diode configuration optimized for switching duties in power supplies, automotive electronics, and industrial control systems.

The forward voltage drop of 950 millivolts ensures low energy loss during conduction while supporting peak surge currents up to 30 amperes for short durations protecting downstream components from surges. The fast peak reverse recovery time of 35 nanoseconds allows for efficient switching and minimal distortion in high-frequency applications.

Operating temperature ranges from -55°C to 150°C, making the ES1D R2 suitable for a variety of harsh industrial environments including automotive and manufacturing electronics where thermal stability is critical. The low peak reverse current of 5 microamperes minimizes leakage current under blocking conditions.

Typical applications include switching power supplies, voltage clamping circuits, and general-purpose rectification in consumer electronics and industrial equipment. The surface mount nature of the diode supports automated assembly and improved production efficiency.

This diode has a DO-214AC package suitable for surface mounting applications. It supports a maximum operating temperature of 150°C for reliable performance. The device features a peak forward surge current rating of 30 A for transient conditions.

It offers a low forward voltage drop of 950 mV to reduce power loss. The peak reverse recovery time is 35 nanoseconds, ensuring fast switching speeds. Operating temperature range spans from -55°C to 150°C, suitable for harsh environments.

The diode configuration is single with a switching rectifier type design. Pin count is 2, maintaining compact form factor for circuit integration. Explore more high-quality semiconductors and diode components in the EnvMart Schottky Diodes & Rectifiers category for your industrial and manufacturing needs.
