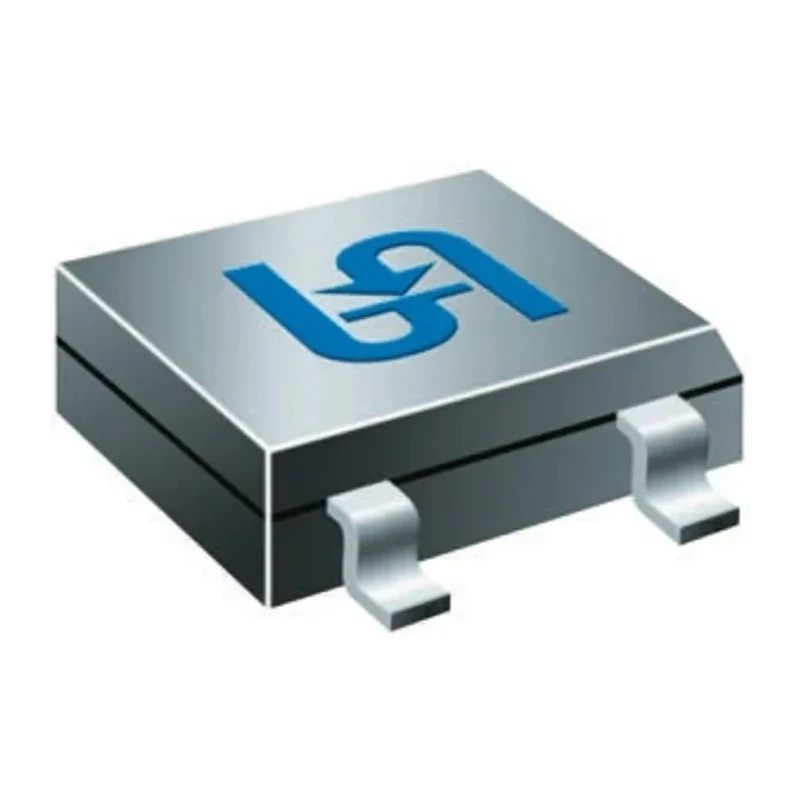

Taiwan Semiconductor Bridge Rectifier, Surface Mount, 50 V, 50 A, 4-Pin, Single Configuration DBLS201G RD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS201G RD |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS201G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Surface mount type suitable for PCB integration.
- Peak reverse repetitive voltage of 50 V ensures reliable operation.
- Handles 50 A peak non-repetitive forward surge current.
- Operating temperature range from -55°C to 150°C.
- Compact package with dimensions 8.51mm (L) x 6.5mm (W) x 2.6mm (H).
- Glass passivated junction for high reliability.
- Automotive standard AEC-Q101 compliant.
- Low peak forward voltage drop of 1.15 V reduces power loss.
Product Description
Taiwan Semiconductor DBLS201G RD Bridge Rectifier is a surface mount device designed for efficient AC to DC conversion in various electronic applications. It features 50 V peak reverse repetitive voltage and supports a forward current of 50 A, making it suitable for power rectification in automotive and industrial systems.
The rectifier utilizes a glass passivated junction and molded plastic construction for durability and reliable performance under high surge currents up to 50 A non-repetitive forward surge. The compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height facilitate PCB surface mounting and automated assembly processes.
Operating reliably across a broad temperature range from -55°C to 150°C, this component meets the AEC-Q101 automotive standard, ensuring suitability for automotive electronics requiring rigorous quality controls. It features a low peak forward voltage of 1.15 V, minimizing conduction losses and improving energy efficiency in circuits.
The low peak reverse current of 10 μA contributes to the rectifier's efficiency, making it ideal for sensitive electronic applications and power supplies. Its single-phase, four-pin configuration ensures straightforward integration into power management systems.
The bridge rectifier is commonly used in industrial, automotive, and manufacturing environments for converting AC to DC in power supplies, motor drives, and other semiconductor applications. Its surface mount package supports high-volume production and reliability.
Surface mount PCB bridge rectifier with glass passivated junction. 50 V peak reverse voltage and 50 A continuous forward current capability. High surge current handling and automotive compliance with AEC-Q101. Compact dimensions and 4-pin single configuration for efficient circuit design.
Low forward voltage drop and minimal reverse leakage current optimize power efficiency. Explore more semiconductor components and Bridge Rectifiers at EnvMart for reliable industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 50 V, ensuring reliable operation in various applications.
This rectifier can operate at a maximum temperature of 150°C, making it suitable for high-temperature environments.
It supports a continuous forward current of 2 A, with the capability to handle peak non-repetitive forward surge currents up to 50 A.
The dimensions of this unit are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height, allowing for compact PCB integration.
It features a single configuration with a four-pin design, facilitating straightforward integration into power management systems.
Yes, it meets the AEC-Q101 automotive standard, ensuring it is suitable for use in automotive electronics.
The peak forward voltage drop is 1.15 V, which helps to reduce power loss in circuits.
The minimum operating temperature for this rectifier is -55°C, allowing it to function in cold environments.
It is designed for surface mounting, which supports automated assembly processes and high-volume production.
The peak reverse current for this model is 10 μA, contributing to its efficiency in sensitive electronic applications.
This bridge rectifier is commonly used in industrial, automotive, and manufacturing environments for converting AC to DC in power supplies and motor drives.
It features a glass passivated junction and molded plastic construction, enhancing reliability under high surge conditions.
